4. Place the cover (1) on the technical components.
5. Guide the tapered stud (1) on the top side of the left cladding of
the technical components into the hole underneath the cover
cladding.
6. Counter the nuts of the lid brace (1) using a 17 mm spanner.
✓ The cover claddings have been fitted.
CONNECTING THE CHIMNEY
1. Connect the flue pipe to the chimney connection.
2. Make sure that the connecting piece does not protrude into the
chimney.
3. Seal the connection to the chimney with highly fireproof silicone
or with a suitable mortar.
✓ The boiler has been connected to the chimney.

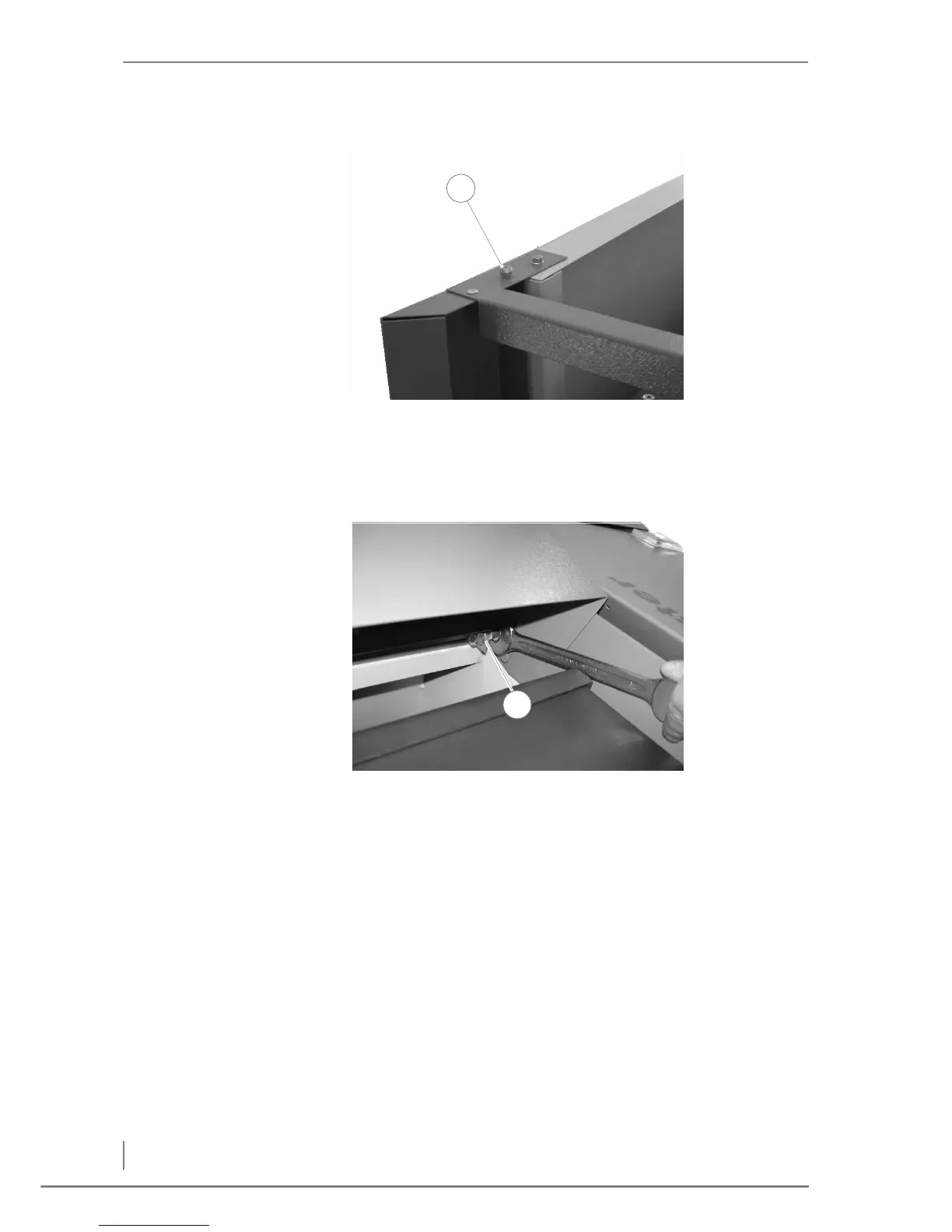

Figure 4/49 - Fitting the cover to the technical components
