HDG Pelletmaster 15 - Installing the Feed System and Combustion Fan; Installing the Ignition Fan

4 Planning and installation – Installing the heating system
49
INSTALLING THE FEED SYSTEM AND COMBUSTION FAN
1. Mount the rotary feeder (1) together with the stoker auger (2) on
the flange (3) of the feed channel (with intermediary seal) and the
four M8 screws using a 13 mm spanner.
2. Adjust the supporting foot (6).
3. Bolt the combustion fan (5) onto the air distributor box (4) (with
intermediary seal) with four 5 mm hexagon socket screws.
✓ The feed system and combustion fan have been installed.
INSTALLING THE IGNITION FAN
1. Push the ignition fan (1) into its retaining tube (2).
✓ The ignition fan has been installed.

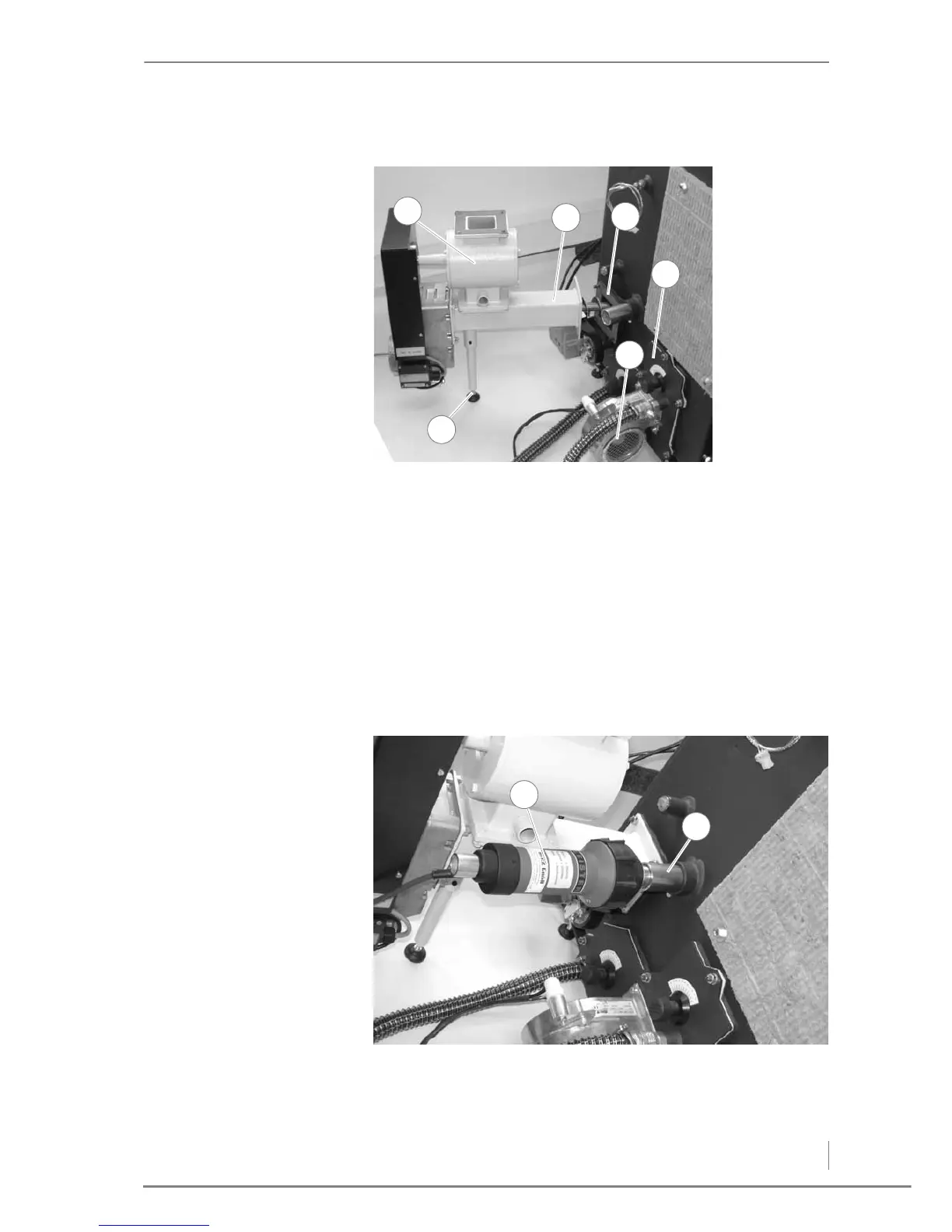

Figure 4/19 - Installing the feed system and combustion fan
1
2
6
4
5
3
Figure 4/20 - Installing the ignition fan
1
2
