HEIDENHAIN ITNC 530 Service Manual

July 2010 12 – 163
12.7 File Management of TNC Partition
Calling the
TNC partition
8 Select the Programming and Editing operating mode.
8 Call the Program Management.

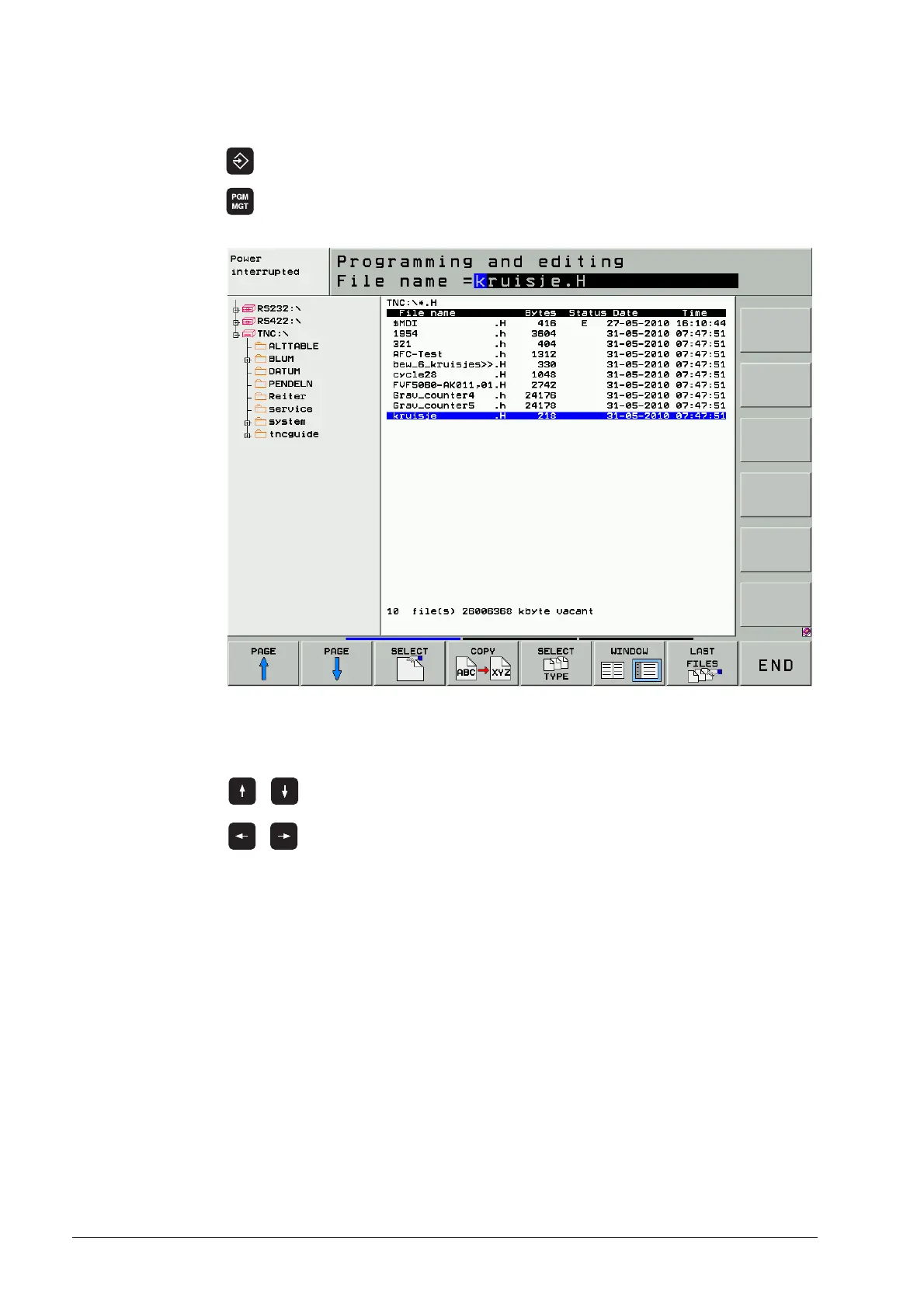

Figure: Program management of iTNC 530
The directory structure is displayed on the left. the associated files are listed on the right.
With the +/- key or with ENTER you can open and close subdirectories.
Select subdirectories or files by pressing the UP and DOWN arrow keys.
The selected path or file name are displayed in the header.
Use the LEFT and RIGHT arrow keys to toggle between directory field and files
field.
Using the mouse With the setting Enhanced 2 for the program manager, you can also use the mouse for
navigation.

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
