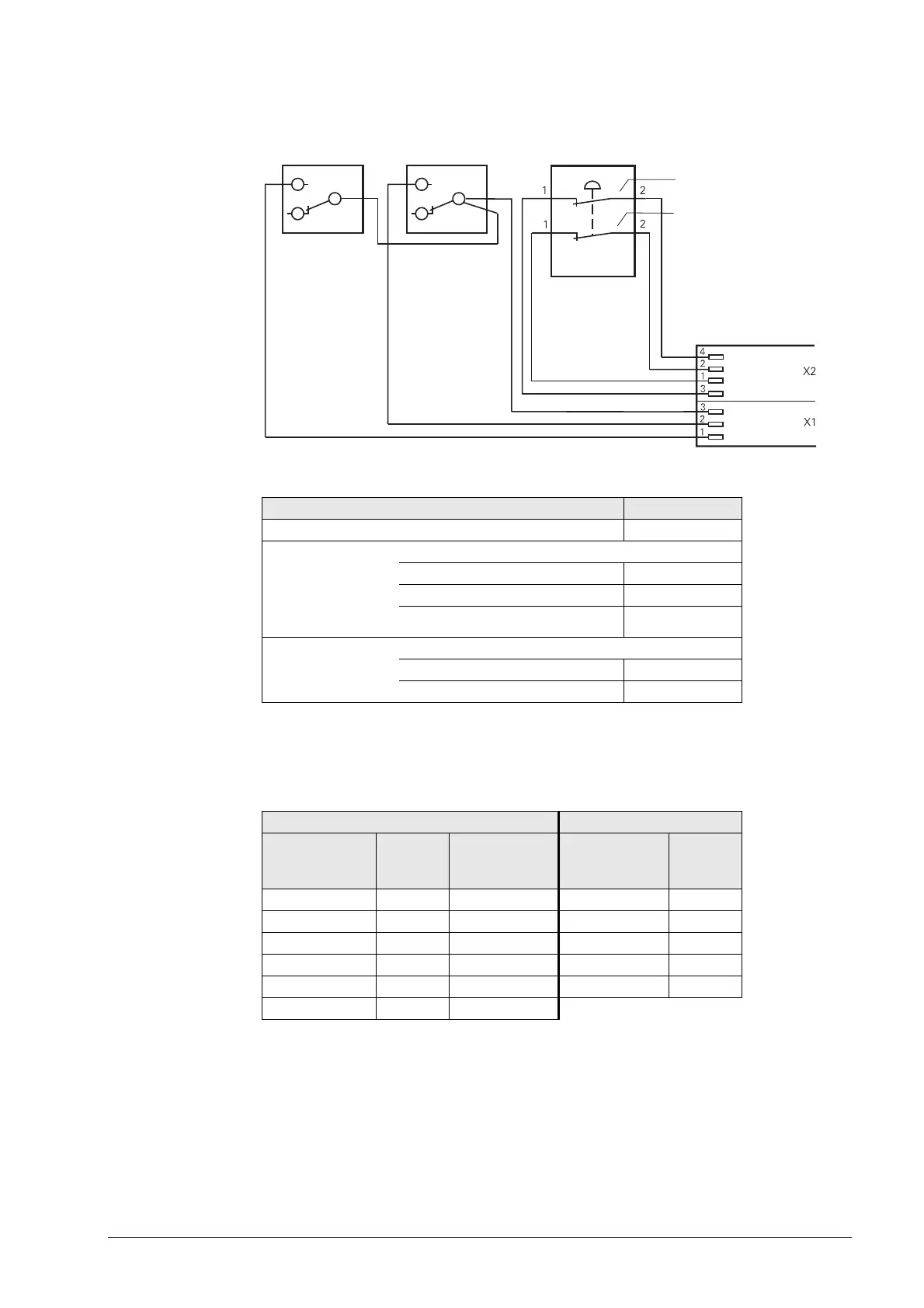

Internal wiring of the contacts for the EMERGENCY STOP and permissive buttons:
27.8.2 HR 130 panel-mounted handwheel
The standard cable length for the HR 130 is 1 meter.
Pin layout for extension cable and handwheel:
Additional components ID
Dummy plug for EMERGENCY STOP circuit 271 958-03
Connecting cable
Spiral cable 312 879-01
Normal cable 296 467-xx
With metal armor tubing 296 687-xx
Plug-in terminal strips
3-pin terminal block 266 364-06
4-pin terminal block 266 364-12
permissive button 1
permissive button 2
ermergency stop
contact 1
contact 2
cable adapter
contact 2
contact 1
contact 1
contact 2
contact 1+2
contact 2
contact 1
Extension cable ID 281 429-xx HR 130 ID 254 040-xx
D-sub
connector
(male) 9-pin
D-sub
connector
(female) 9-pin
D-sub
connector
(male) 9-pin
Housing Shield Housing Housing Shield
2 White 2 2 White
4 Brown 4 4 Brown
6 Yellow66Yellow
8 Green 8 8 Green
7Gray7
