Single Secondary Docking Station

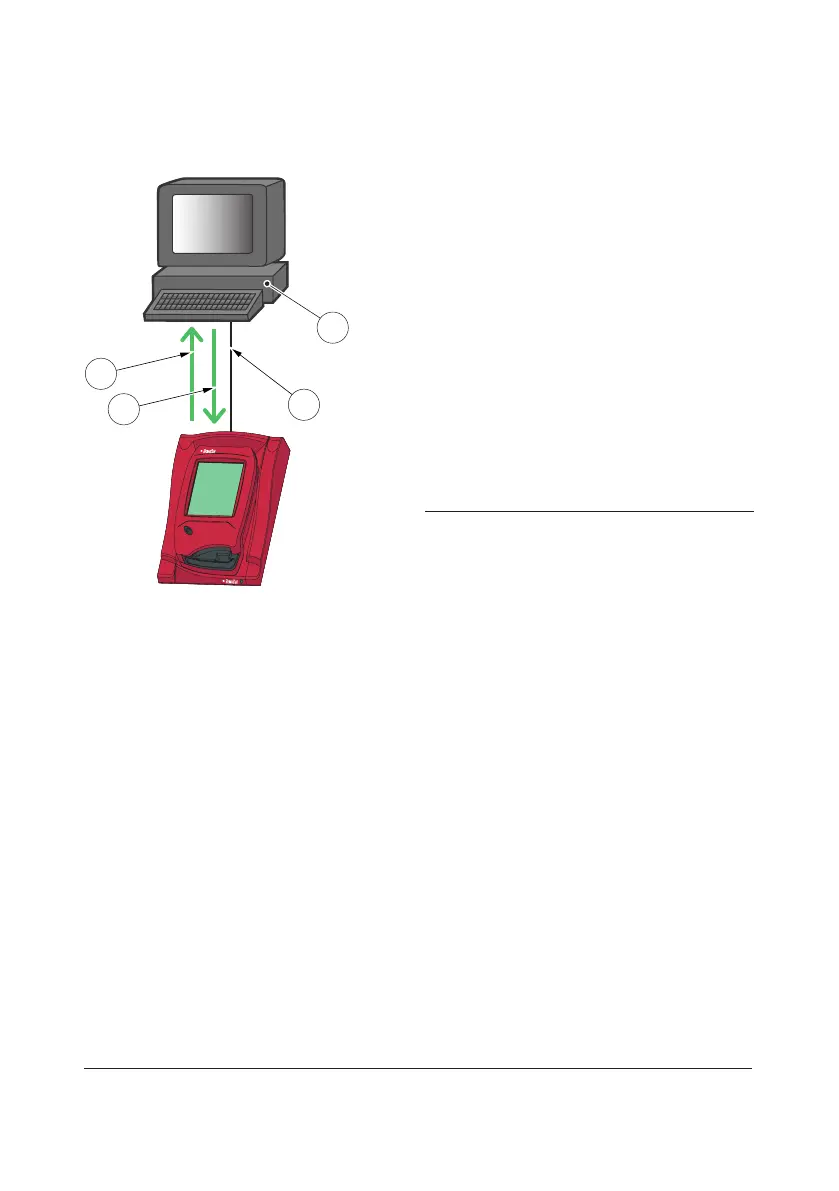

FIGURE 8-2
A Single Secondary Docking Station must be
connected via a USB(1) to the PC hosting
the DMS Software(2). A Secondary Docking
Station is only connected to a PC for data
communication. No settings can be made
on the Secondary Docking Station.
The communication between the Analyzer
and the DMS Software is two-way:
• Analyzer Data is transmitted from the
Analyzer to the PC(2) for Data
Management, see Arrow(3).
• Analyzer Settings are transmitted from
the PC(2) to the Analyzer, see Arrow(4).
1 USB connection
2 PC hosting the DMS Software
3 Analyzer Data to DMS Software
4 Analyzer Settings from DMS Software
2
1
3
4
