169

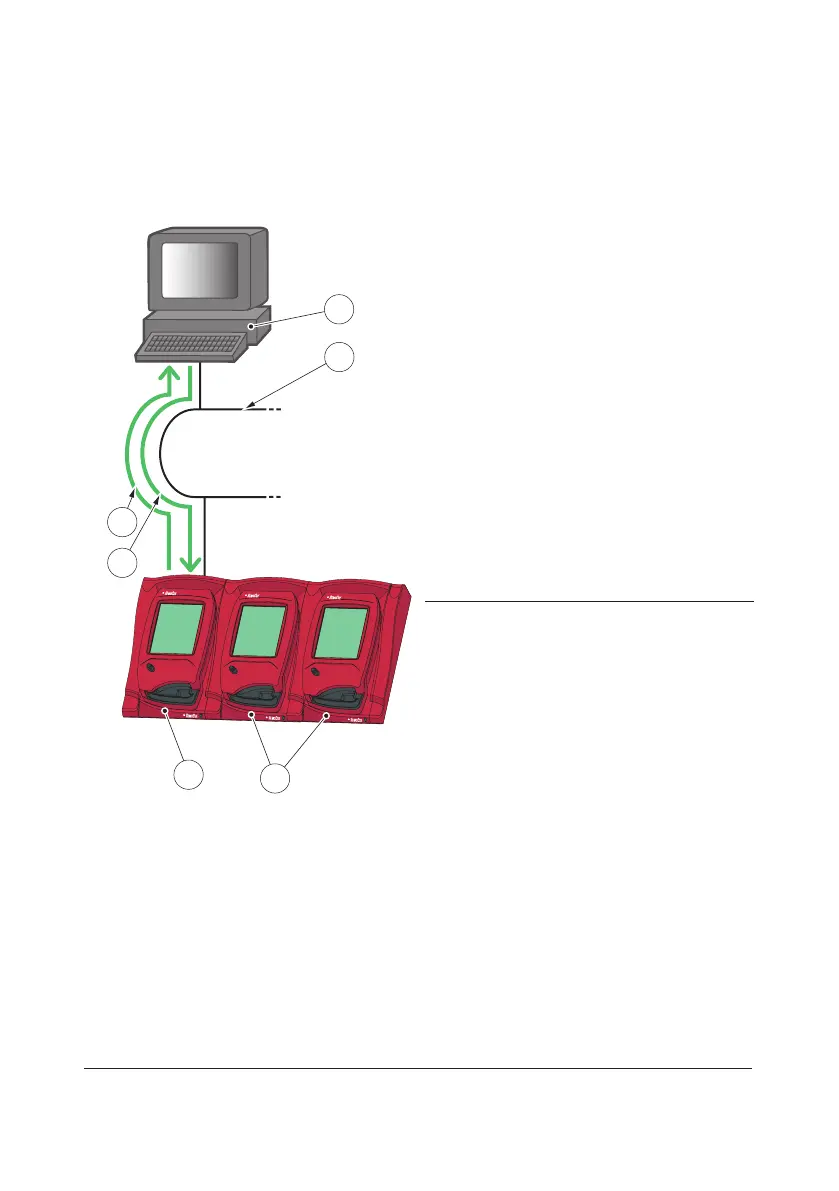

Set of Multiple Docking Stations containing
a Primary
FIGURE 8-3
In a set of Multiple Docking Stations
containing a Primary(1), the Primary is
connected to a LAN(3) to which the PC
hosting the DMS Software(4), or the OR, is
also connected.
The communication between the Analyzer
and the DMS Software is two-way.
For the Analyzer in the Primary Docking
Station(1) the following applies:
• Analyzer Data is transmitted from the
Analyzer in the Primary Docking
Station(1) to the PC(4) for Data
Management, see Arrow(5).
• Analyzer Settings are transmitted from
the PC(4) to the Analyzer in the Primary
Docking Station(1), see Arrow(6).
1 Primary Docking Station
2 Secondary Docking Station
3 LAN
4 PC hosting the DMS Software or OR
5 Analyzer Data to PC
6 Analyzer Settings from PC
1
6
5
4
2
3
