1.3.3 Docking station – General

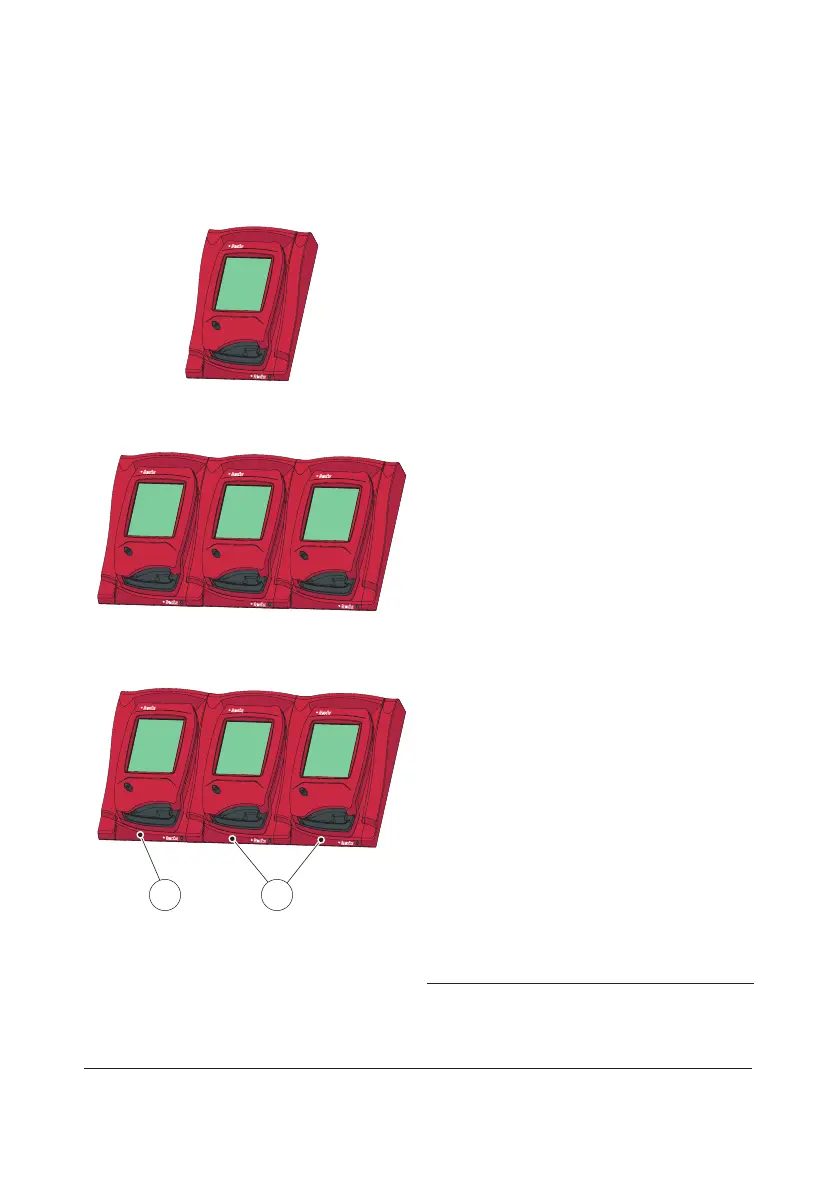

Single Docking Station
FIGURE 1-5
A Docking Station not connected to other
Docking Stations, is referred to as a Single
Docking Station.
Multiple Docking Stations
FIGURE 1-6
Up to five Docking Stations can be
connected to each other. These are referred
to as Multiple Docking Stations.
Only the Docking Station positioned furthest
to the left can be connected to a Power
Adapter. Power is supplied to the other
Analyzers through this connection.
Primary and Secondary Docking Stations
1
2
FIGURE 1-7
Primary and Secondary Docking Stations are
two physically dierent products.
A Primary Docking Station can be connected
to a LAN and both receive/send data itself
and pass data from/to a Secondary Docking
Station that is connected to the Primary.
When a Primary Docking Station is
connected via a USB connection, only the
TCP/IP settings can be changed. To change
settings use PDS Configuration tool or DMS
Software. No other information can be sent
to/from the Analyzer.
1 Primary or Secondary Docking Station
2 Secondary Docking Station
