Page 6-42 Work Instruction Wizard
PLT-01067, Version: A.7 July 2017

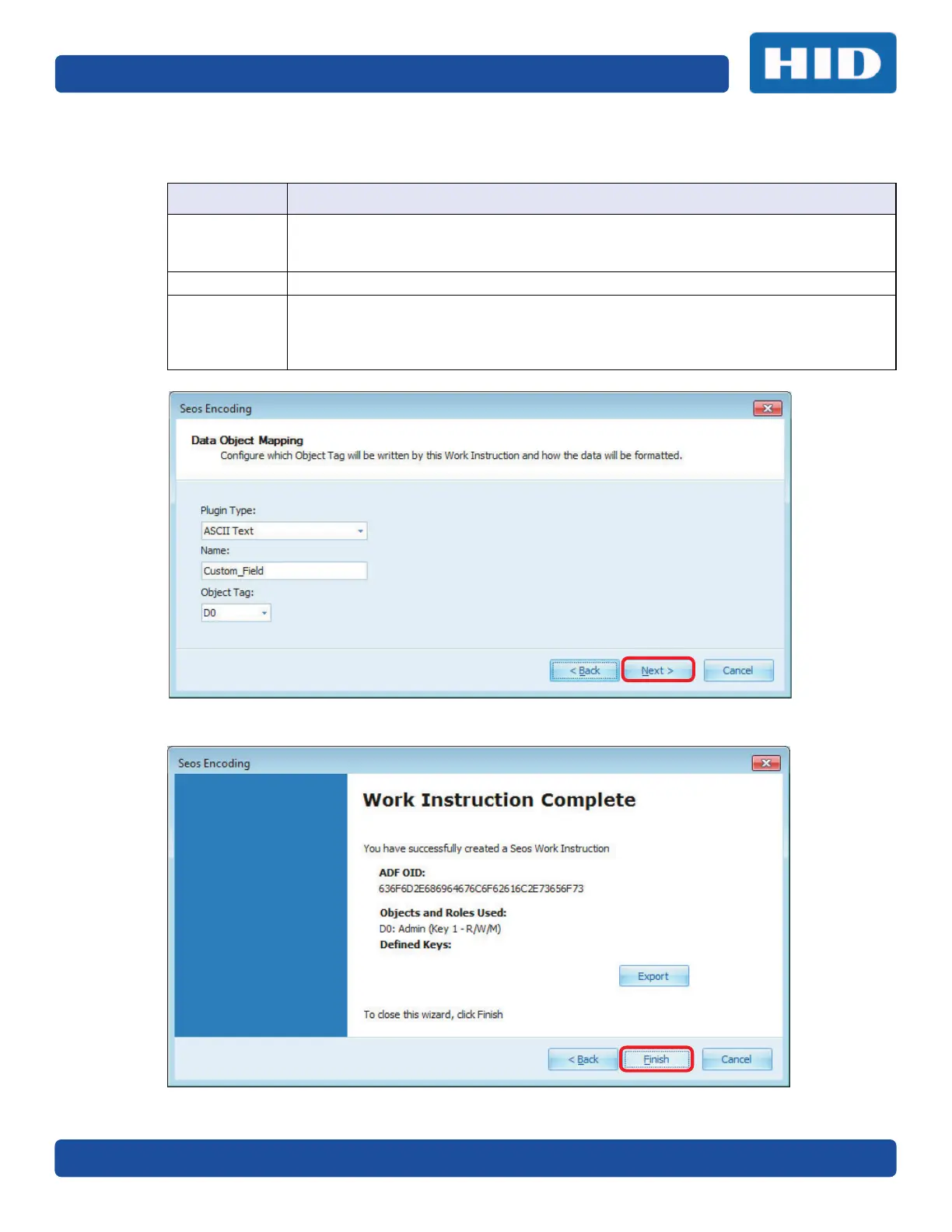

4. Data Object Mapping: Configure which Object Tag will be written by this Work Instruction and
how the data will be formatted, and click Next.
5. Review the configuration summary and click Export (to a .txt file) if required. Click Finish.
6. Return to Section 5.5: Create a Work Order, step 5 to save the Work Order.
Field Description
Plugin Type
This defines how the data will be entered by the user in the Work Order Manager, or in
Data Entry. Options are ASCII Text, Hexadecimal Data, Unicode Text, or Signed 64-bit
Integer.
Name
This defines the name of the data field in which the user will enter the custom data.
Object Tag
Select desired Object Tag, if more than one has been defined in a Previous Work
Instruction. Otherwise type in the desired Object Tag, if the Select ADF Configuration
from an existing Work Instruction (on the Configure Seos Instruction Mode window)
option is not checked.
