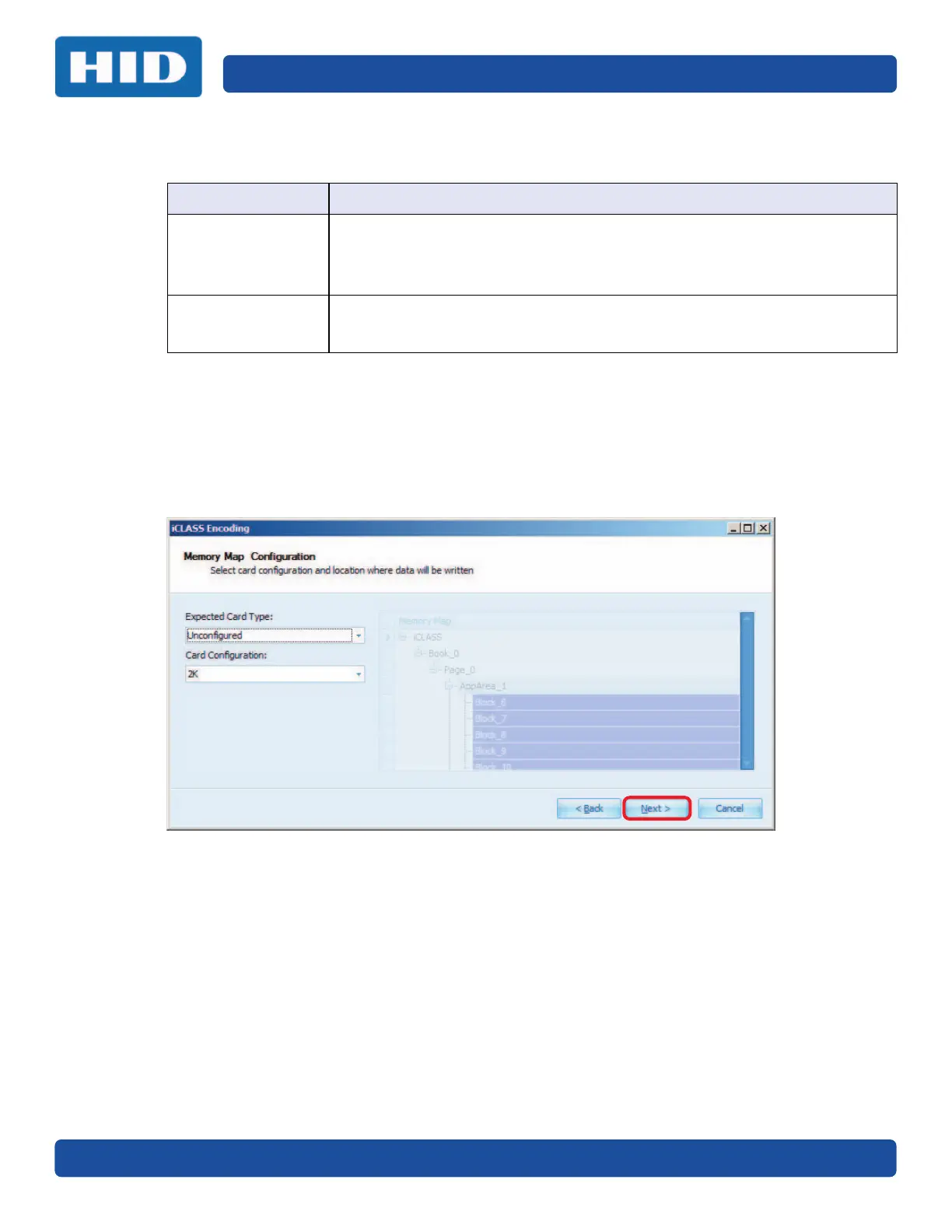

6. Memory Map Selection: Select card configuration and location where the data is written.
Click Next.
Note: Memory Map is grayed out with the Data Type set to HID Access Application, as the HID
Access Application is always encoded in the same place. However, if the Data Type is set to
Custom, the Memory Map is active.
Expected Card Type: Configured
Note: This is the default and recommended setting. All iCLASS cards shipped from the HID
factory are configured, unless specifically requested.
Field Description
Expected Card Type Configured or Unconfigured.
Note: If Unconfigured is selected, the Card Configuration field below must be
set.
Note: Unconfigured card are not supported on CP1000 encoders.
Card Configuration Select the memory configuration from the drop-down list. Options are:
2K (default), 16k2, 16k16, 16k2+16k1, 16k16+16k1, 2K (SO Only), 16k2 (SO Only),
16k16 (SO Only), 16k2+16k1 (SO Only), 16k16+16k1 (SO Only).
