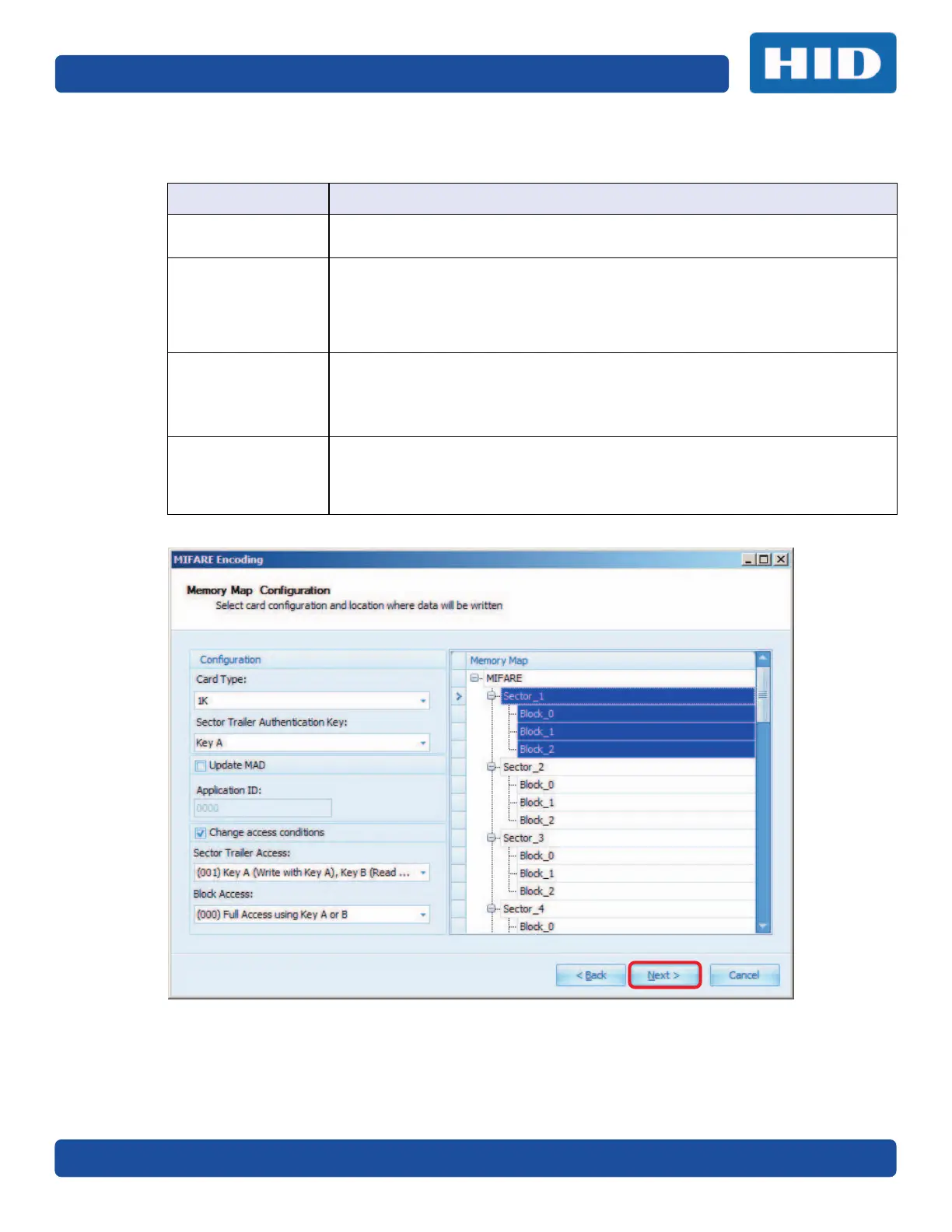

4. Memory Map Selection: Select card configuration and location where the data is written.
Click Next.
Field Description
Configuration Card Type: 1K, or 4K
Sector Trailer Authentication Key: Key A, or Key B
Update MAD Select the check box to update the MIFARE Application Directory (MAD).
Note: This is an optional parameter (sector 0 is always reserved for this
purpose).
Application ID: Enter the Application ID your company has registered with NXP
to update.
Change access
conditions
Select the check box to Change access conditions
Sector Trailer Access: Select an option from the drop-down menu.
Note: See the NXP Datasheet for more detail on Sector Trailer.
Block Access: Select an option from the drop-down menu.
Memory Map Define (select) the MIFARE Sector/Block (scrollable field).
Note: The legacy HID application can be encoded on Sector 1. This is a fixed
location. The HID SIO application can be encoded in Sector 4 generally, but can
be moved.
