DS-1100KI Network Keyboard User Manual
111

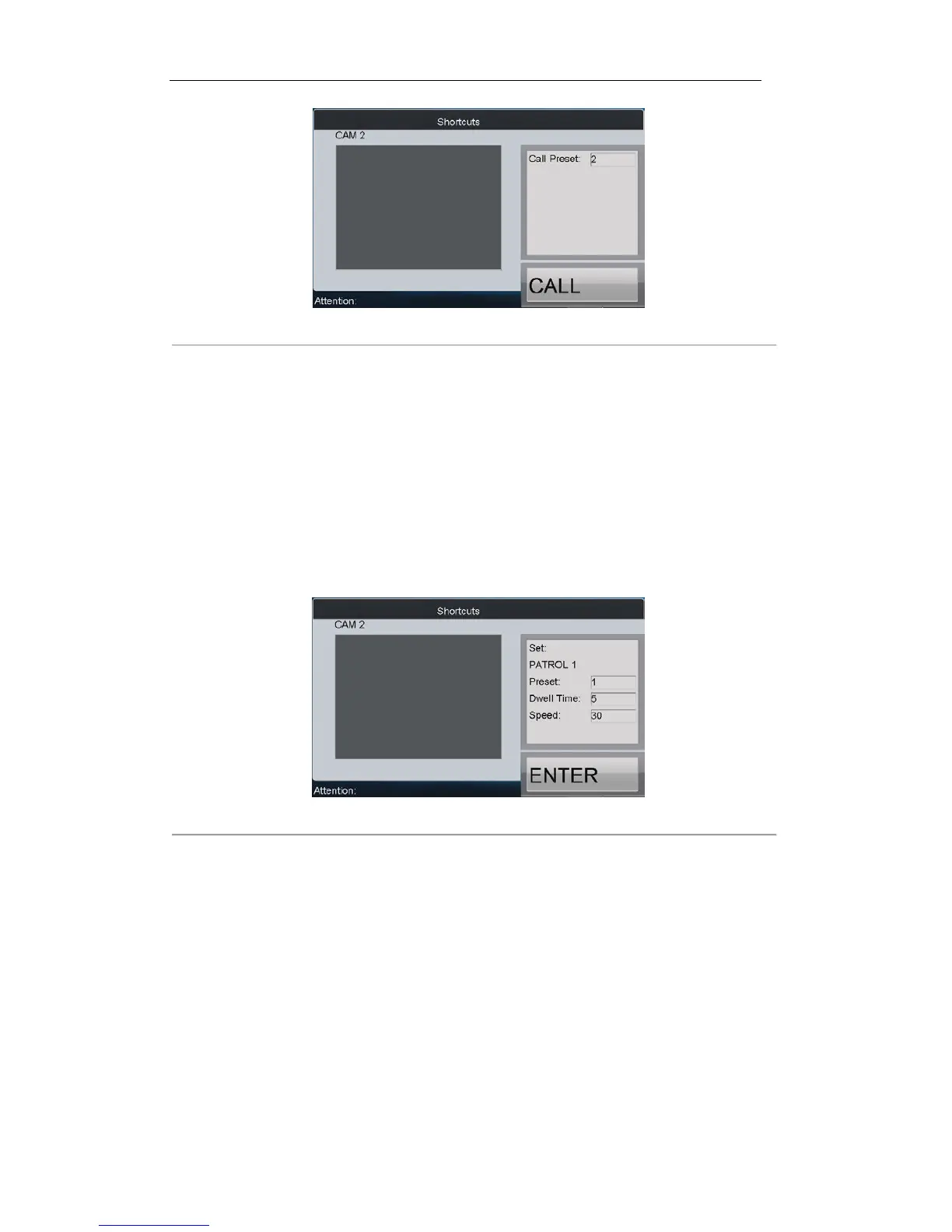

Figure 6. 33 Calling a Preset
Setting/Calling a Patrol
• Setting a Patrol
Steps:
1. Input the Num + CAM keys to select the connected analog dome or pan/tilt unit.
2. Press the SET key to enter the settings interface.
3. Press the Num + PATROL keys to enter the patrol settings interface.
4. Input Num and press the ENTER key to set the preset number, stop time and speed respectively.
5. Repeat Step4 to add other presets to the current patrol.
6. Press the SET key again to finish the patrol settings.
Figure 6. 34 Setting a Patrol
• Calling a Patrol
Steps:
1. Input the Num + CAM keys to select the connected analog dome or pan/tilt unit.
2. Input the Num + PATROL keys to call the defined patrol.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
