DS-1100KI Network Keyboard User Manual
14

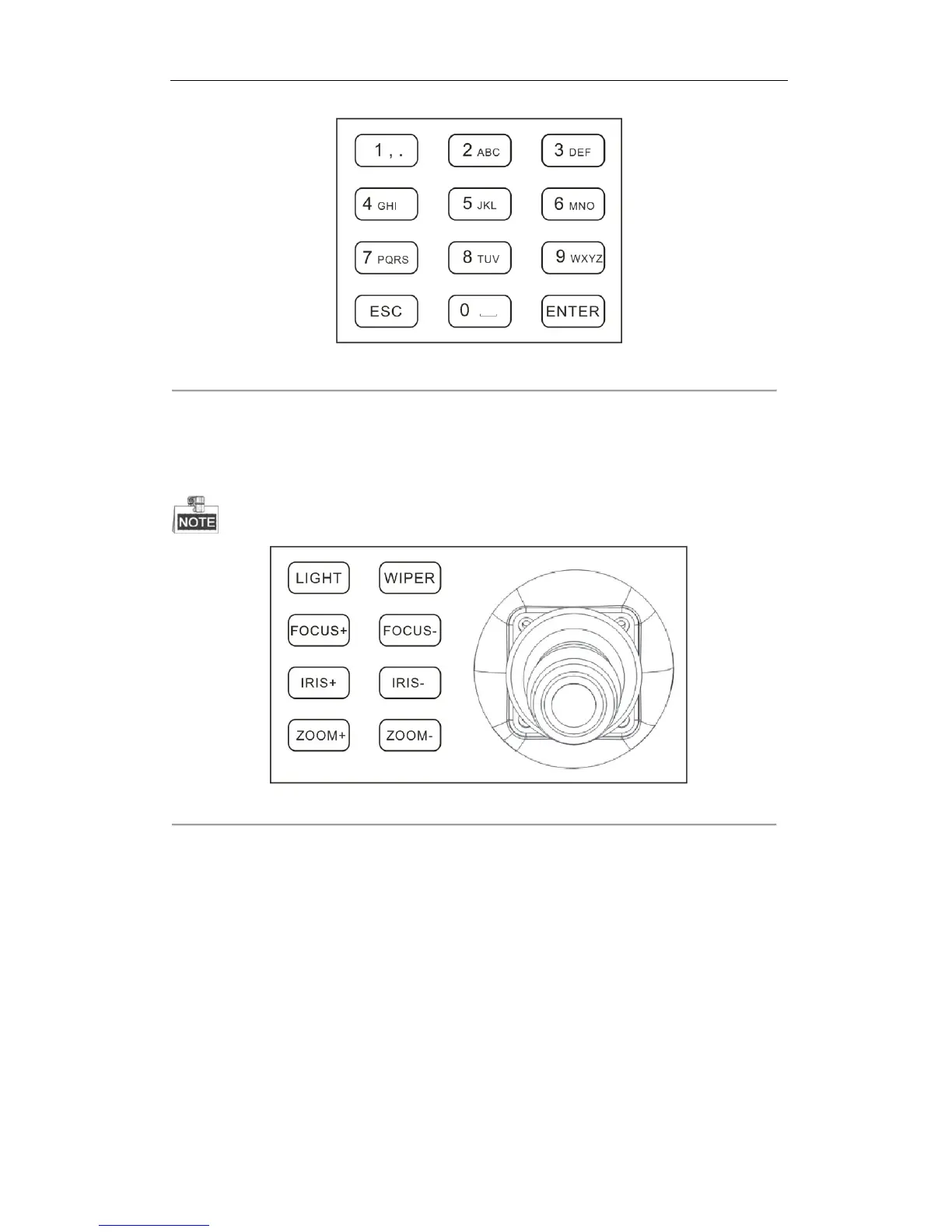

Figure 2. 4 Numeric Buttons
4-axis Joystick:
Use the joystick to realize pan and tilt movement at 8 directions.
The 4-axis joystick can be used to control the zoom; and the central button used as Enter button and to realize
picture capture as well.
The captured pictures can be saved in U-flash disk or uploaded to the FTP server.
Figure 2. 5 Four-Axis Joystick
Playback Control:
Rotate the outer ring of shutter in clockwise direction to increase speed, and up to 16X playing speed can be
achieved. Rotate the outer ring of shutter in anti-clockwise direction to decrease speed, and 1/16X playing speed
can be achieved.
In playback by file, rotate the inner ring of shutter to play the previous/next file.

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
