DS-1100KI Network Keyboard User Manual
94
On the User-User List interface, click (Login Operator) to directly switch to the Operator user login interface.
Click Input to view all the NVR’s IP cameras.

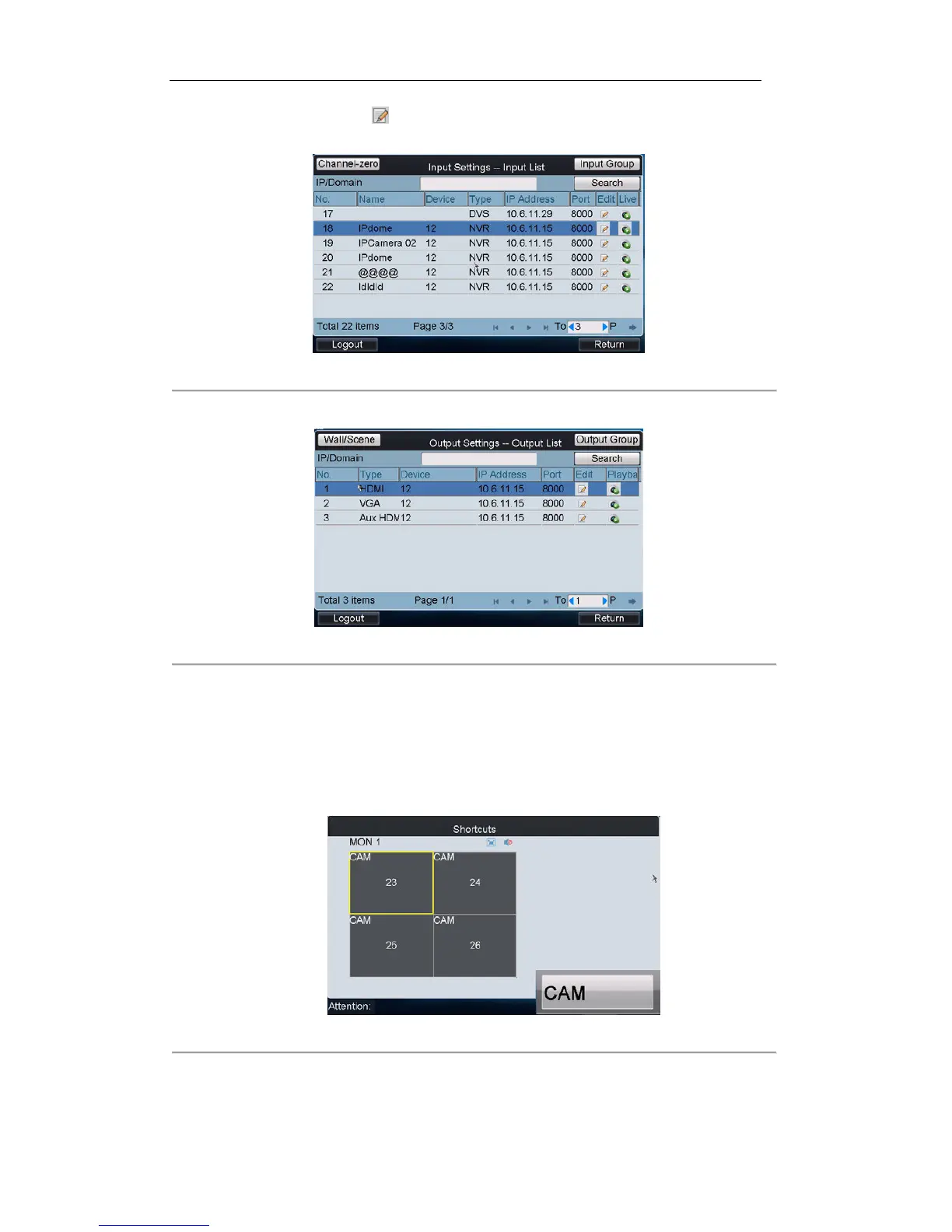

Figure 5. 31 Input List
Click Output to view all the outputs.
Figure 5. 32 Output List
Switch input channel to output channel:
Steps:
1. Press Num + MON and Num + MULT keys to split the selected monitor into several windows.
2. Press Num + MON, Num + WIN and Num + CAM keys to decode the selected input channel on selected
window of the selected monitor.
Figure 5. 33 Shortcuts Interface

HIKVISION DS-1100KI Specifications

General

Split keyboard	No
Keyboard layout	-
Device interface	RS-232 + RS-485 + RJ-45
Recommended usage	Office
Keyboard form factor	Mini
Connectivity technology	Wired
Display type	TFT
Product color	Black
Keyboard style	Straight
Ergonomic design	Yes
Product type	Control panel
Housing material	Plastic
Quantity per pack	1 pc(s)
USB 2.0 ports quantity	1
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Operating voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	110 mm
Width	435 mm
Height	193 mm
Keyboard weight	2000 g
Keyboard dimensions (WxDxH)	435 x 110 x 193 mm
