4.21 Siderail Top Cane
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 50 Basic Care™ Bed Service Manual (man336)
4.21 Siderail Top Cane
Tools required: Phillips head screwdriver
Removal
1. Raise the siderail (A) to its up and locked position (see figure 4-21 on page
4-50).
2. Remove the two screws (B) attaching the top cane (C) to the siderail (A).
3. Remove and discard the top cane (C).

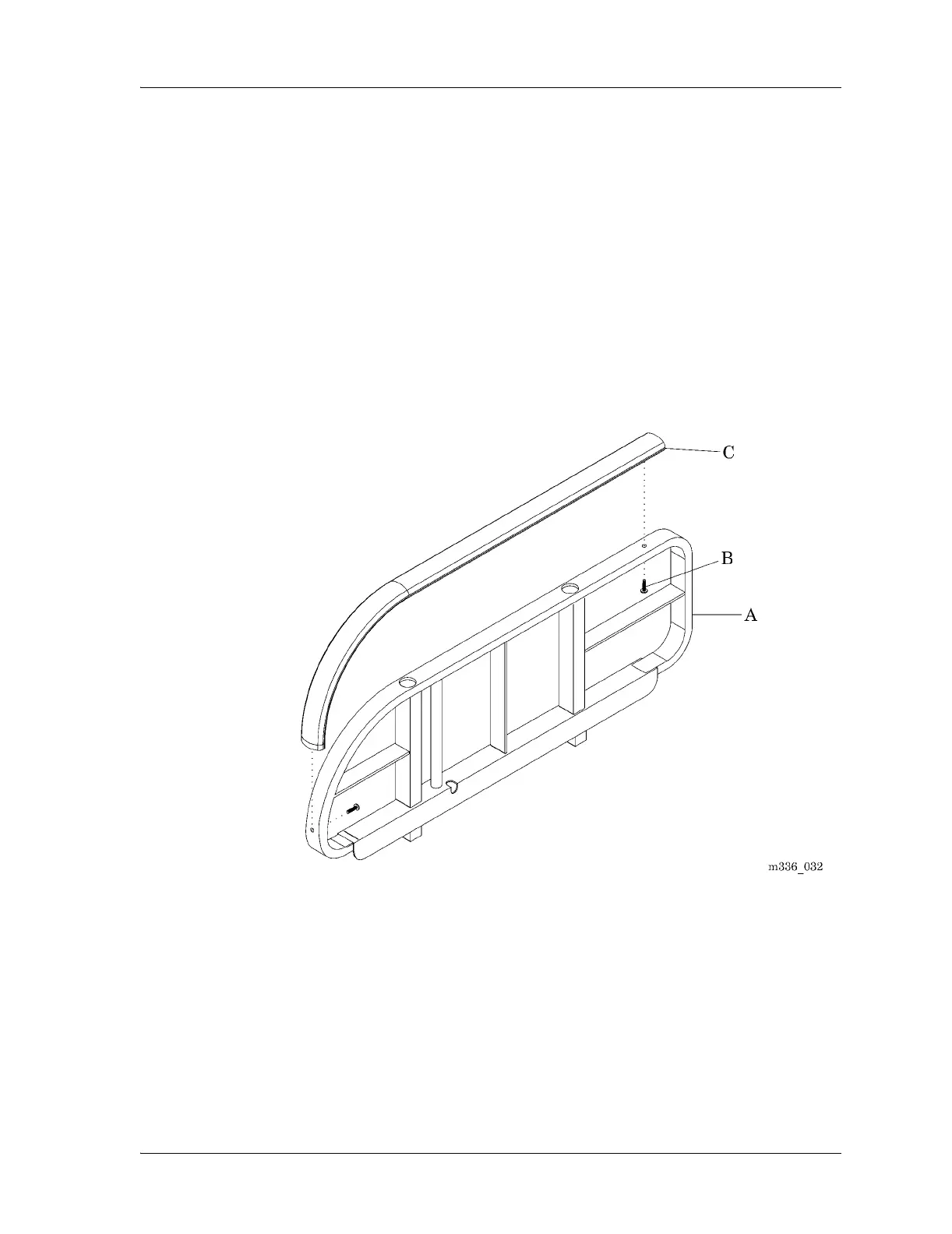

Figure 4-21. Siderail Top Cane
Replacement
1. Do the removal procedure in the reverse order.
2. Do the “Function Checks” on page 2-2.
032
