7.2 Trapeze Support—P846D48
Chapter 7: Accessories
Page 7 - 4 Basic Care™ Bed Service Manual (man336)
7.2 Trapeze Support—P846D48
Tools required: 3/8" socket
Drive ratchet
3/8" wrench
Installation
1. Install the four bolts (A) and two backing plates (B) to attach the trapeze
support (C) and on the bed frame (D) (see figure 7-2 on page 7-4).

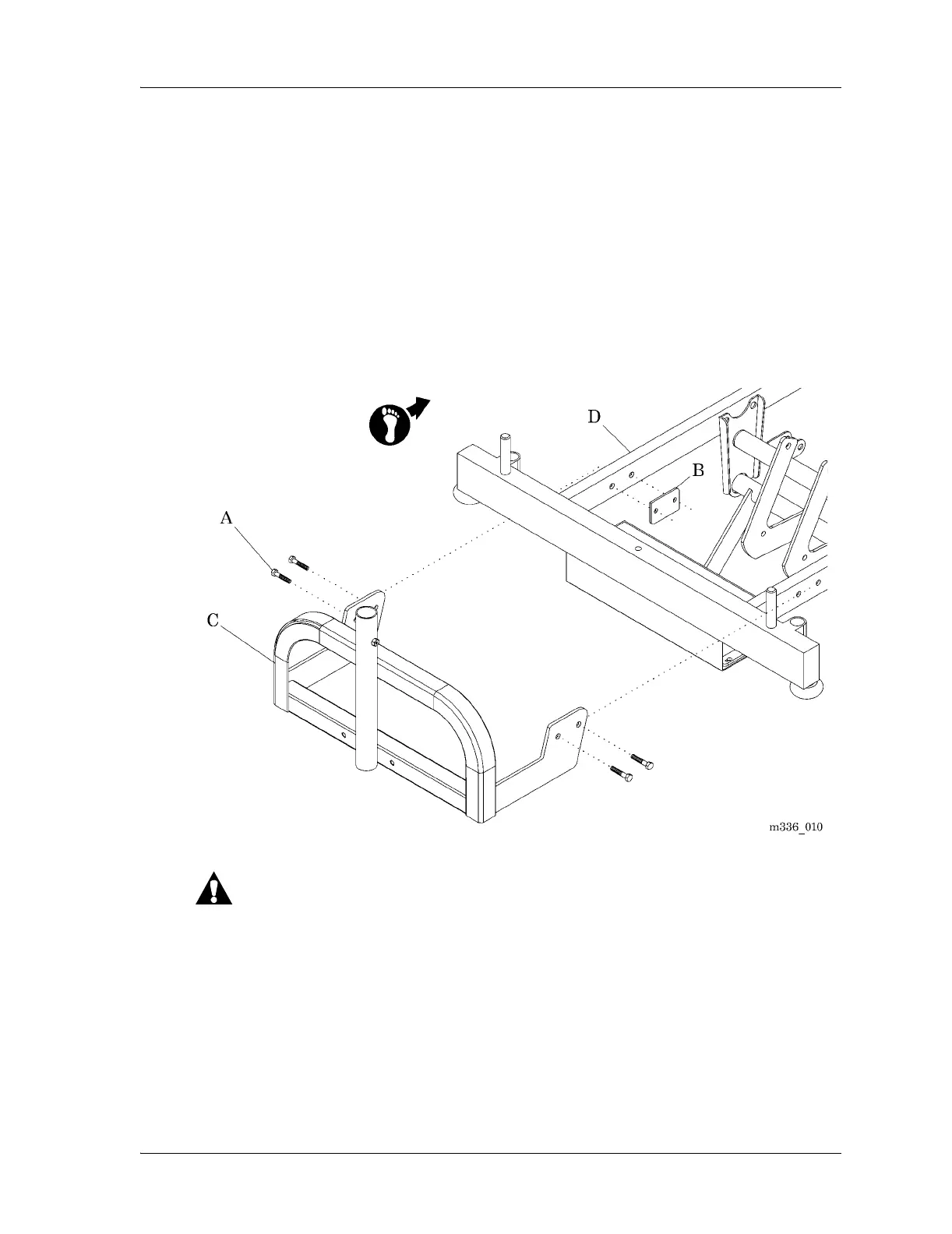

Figure 7-2. Trapeze Support
CAUTION:
Do not lower the bed frame while the trapeze support assembly is
attached to the bed. Turn off the hilow function using the lockout on the
foot end control panel. Otherwise, equipment damage could occur.
2. Lock out the hilow function.
