4.24 Central Brake and Steer—Pedal Assemblies
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 58 Basic Care™ Bed Service Manual (man336)

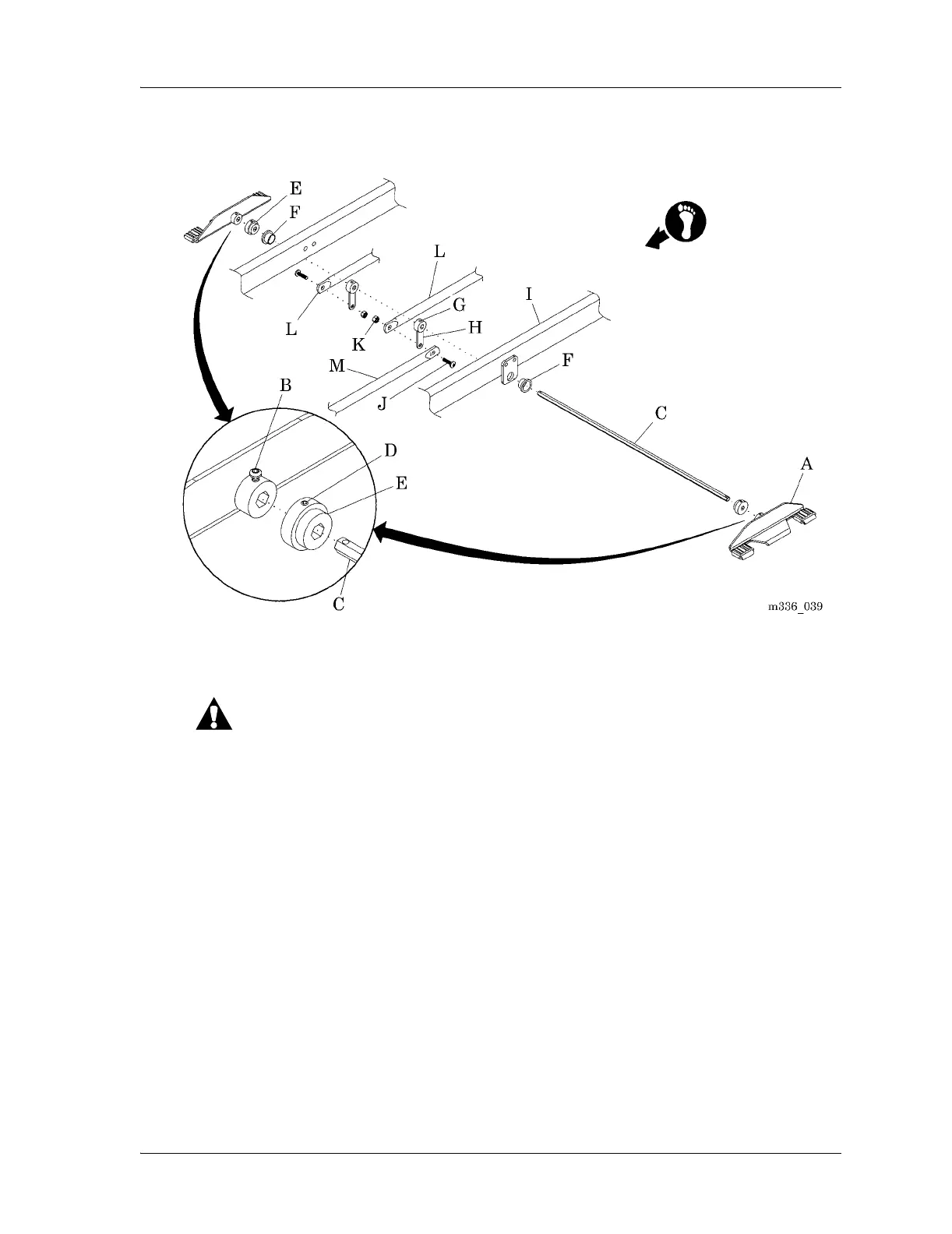

Figure 4-25. Central Brake and Steer—Pedal Assemblies
Replacement
CAUTION:
Make sure that a flat side of the hex rod is facing upward when it is
installed. Failure to do so may result in the central brake and steer not
operating correctly.
1. Make sure that a flat side of the hex rod is facing upward before it is
installed.
2. Do the removal procedure in the reverse order.
3. Do the “Function Checks” on page 2-2.
