4.18 Siderail Retraction Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 42 Basic Care™ Bed Service Manual (man336)
4.18 Siderail Retraction Assembly
Tools required: 4 mm Allen™
1
wrench
4 mm T-handle Allen™ wrench
Phillips head screwdriver
Screwdriver
Removal
1. Raise the bed to the highest position.
2. Lower the siderail (A) to the down position (see figure 4-18 on page 4-42).

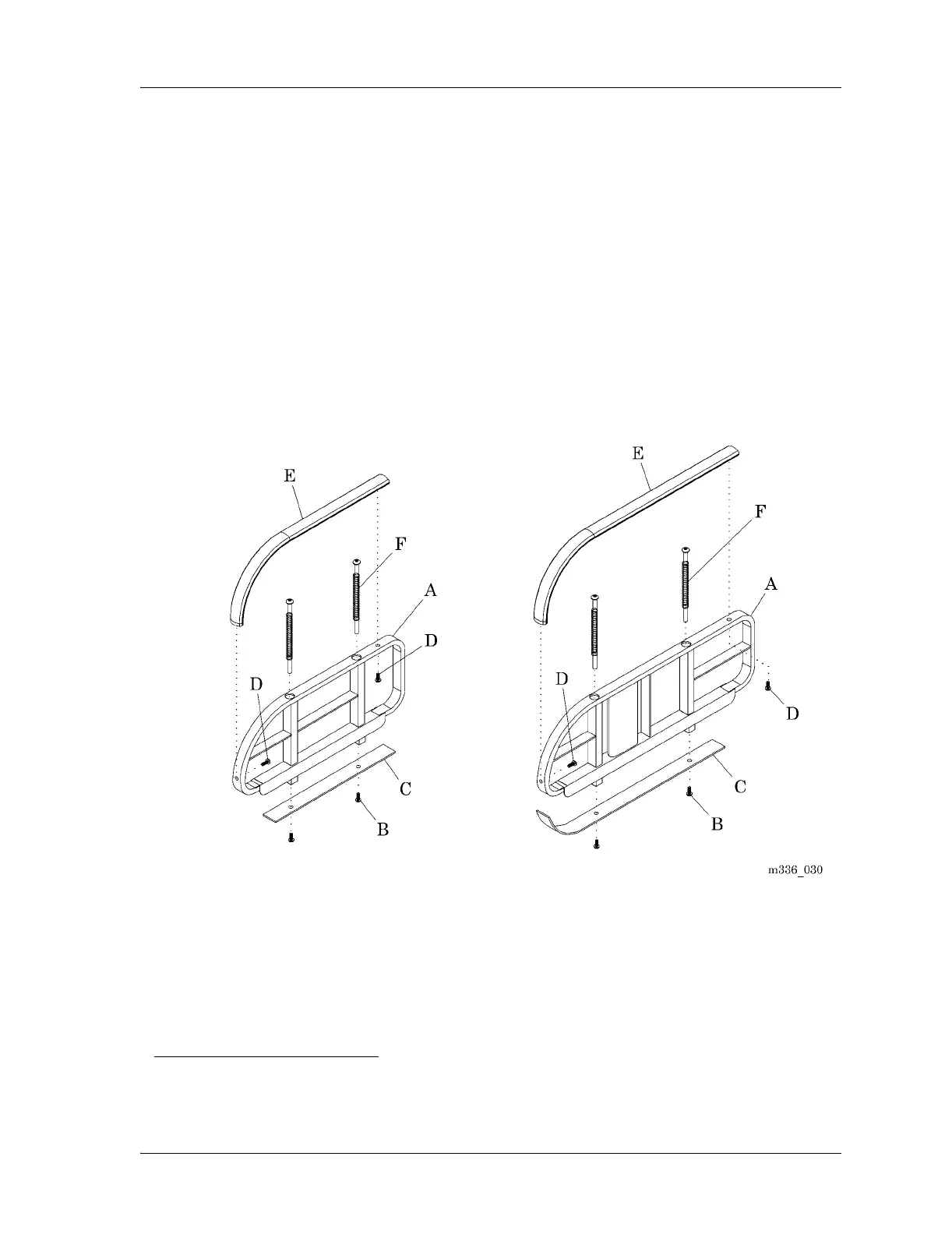

Figure 4-18. Siderail Retraction Assembly
3. Remove the two screws (B) attaching the lower bar (C) to the siderail (A).
The spring assemblies will move up suddenly, and hit the top cane.
1. Allen™ is a trademark of Industrial Fasteners, Inc.
030
