4.23 Central Brake and Steer—Caster Assemblies
Chapter 4: Removal, Replacement, and Adjustment Procedures
Basic Care™ Bed Service Manual (man336) Page 4 - 53
4

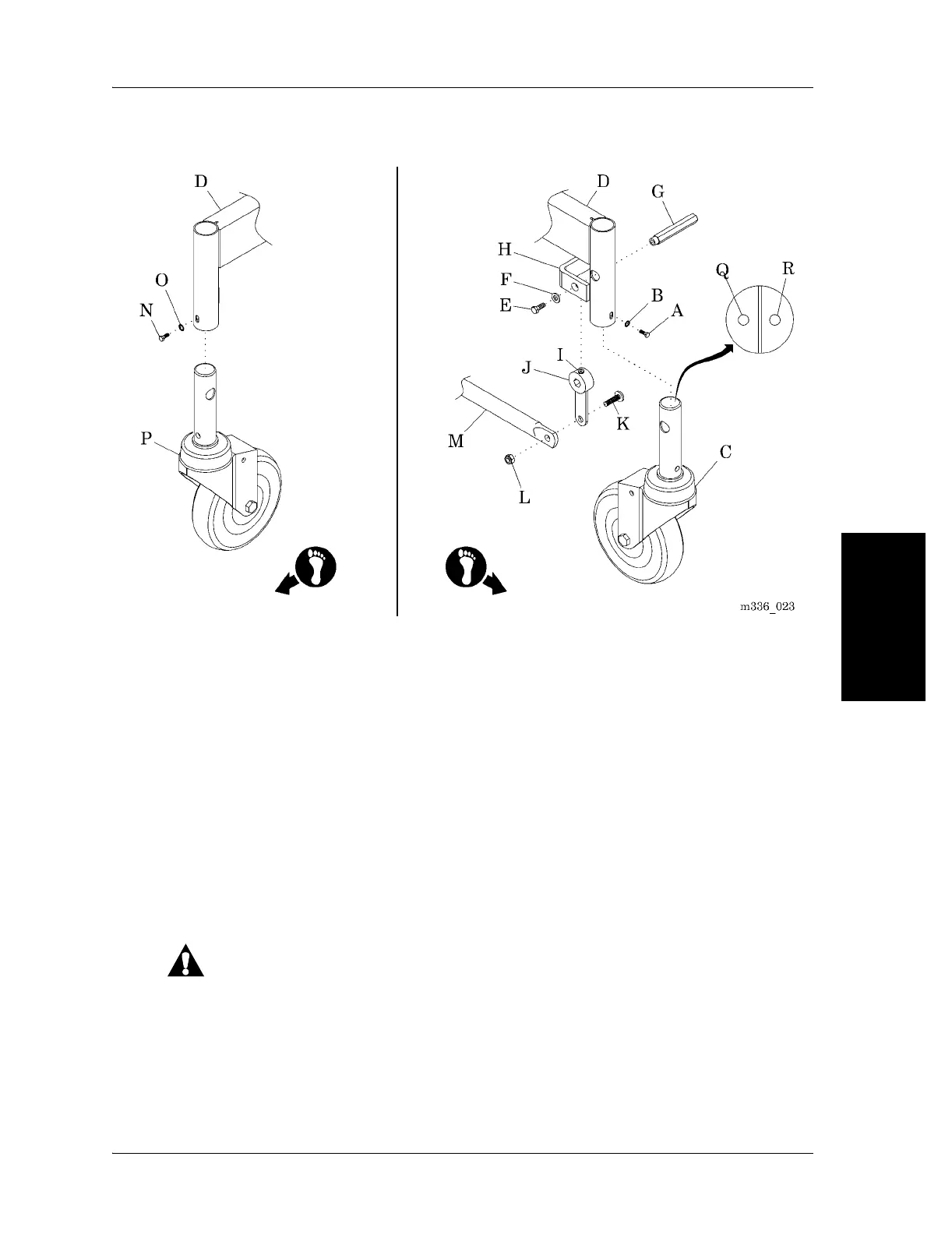

Figure 4-23. Central Brake and Steer—Brake and Steer and Swivel Caster Assemblies
As the hex rod is pushed through the caster, the caster will fall off the bed
frame.
8. If necessary, remove the bolt (K) and nut (L) attaching the linkage (M) to
the rocker arm (J).
9. Remove the bolt (N) and washer (O) attaching the swivel caster (P) to the
bed frame (D).
10. Go to “Replace the Foot End” on page 4-55.
Remove the Head End
WARNING:
Put caster blocks behind the casters at the opposite end of the bed.
Failure to do so could result in personal injury.
1. Put caster blocks behind the casters at the foot end of the bed.
