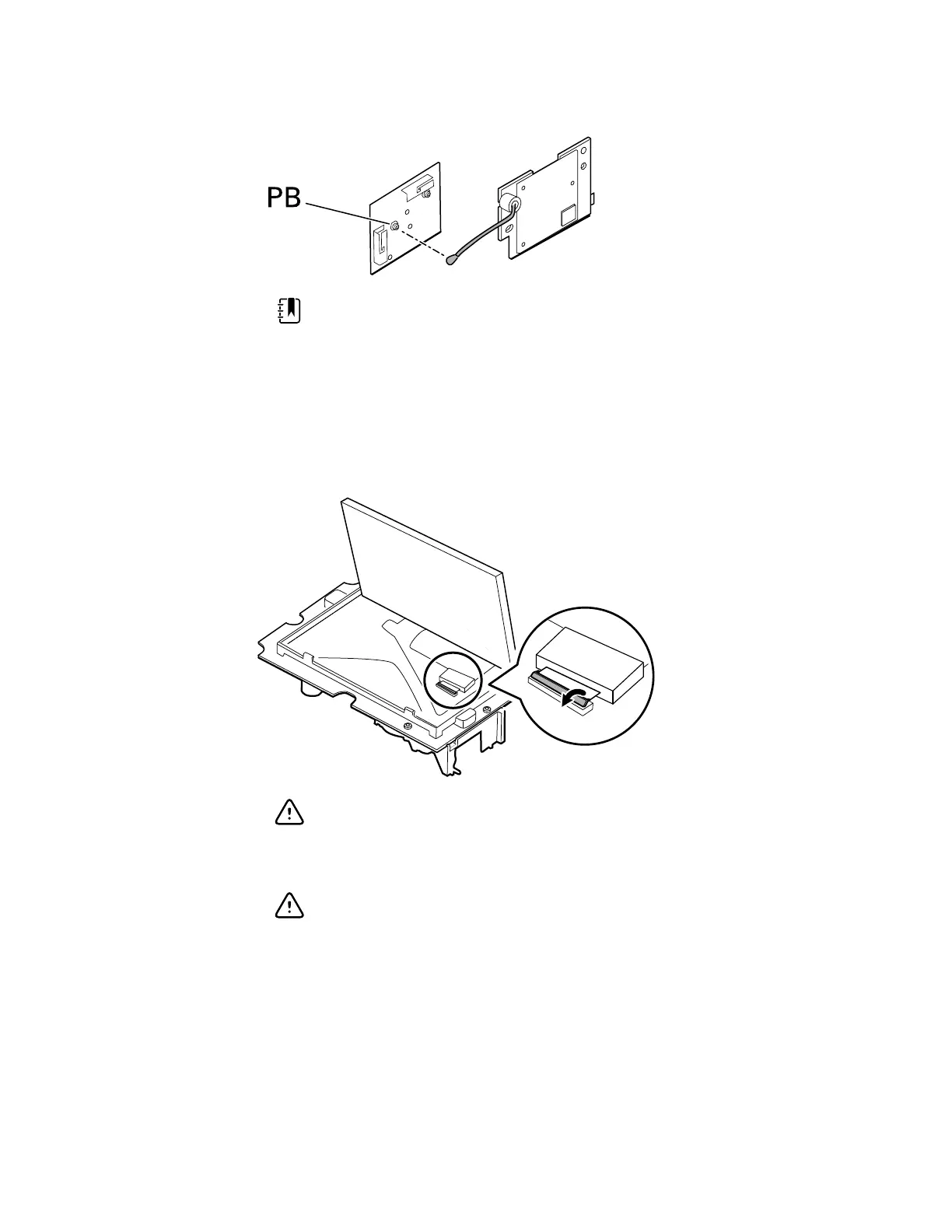

NOTE This connector is labeled PB because of its location on the
wireless radio board.
To remove a coaxial connector, lift the connector away from the board.
To connect a coaxial connector, align the connector over the mount on the board and press to
snap it into place.
• FHY connector (Self-Lock mechanism): The device uses Self-Lock mechanism cable
connectors.
A Self-Lock mechanism enables the cover to close by one-touch operation.
CAUTION Do not use excessive force when releasing pressure on
the connector. Excessive force may result in breaking the locking
mechnanism.
To remove a Self-Lock mechanism
CAUTION Remove a flex cable only after the FHY connector latch
is open.
1. Lift the latching piece of the connector up off the the connector body.
2. Remove the cable.
To connect a Self-Lock mechanism
1. Lift the latching piece of the connector up off from the connector body.
2. Insert the flex cable into the connector.
3. Push down on the latching piece connector until it locks into place.
Service manual Disassembly and repair 45
