Hillrom Welch Allyn Connex Spot Monitor Service Manual

Controls, indicators, and connectors
NOTE Your model might not contain all of these features.

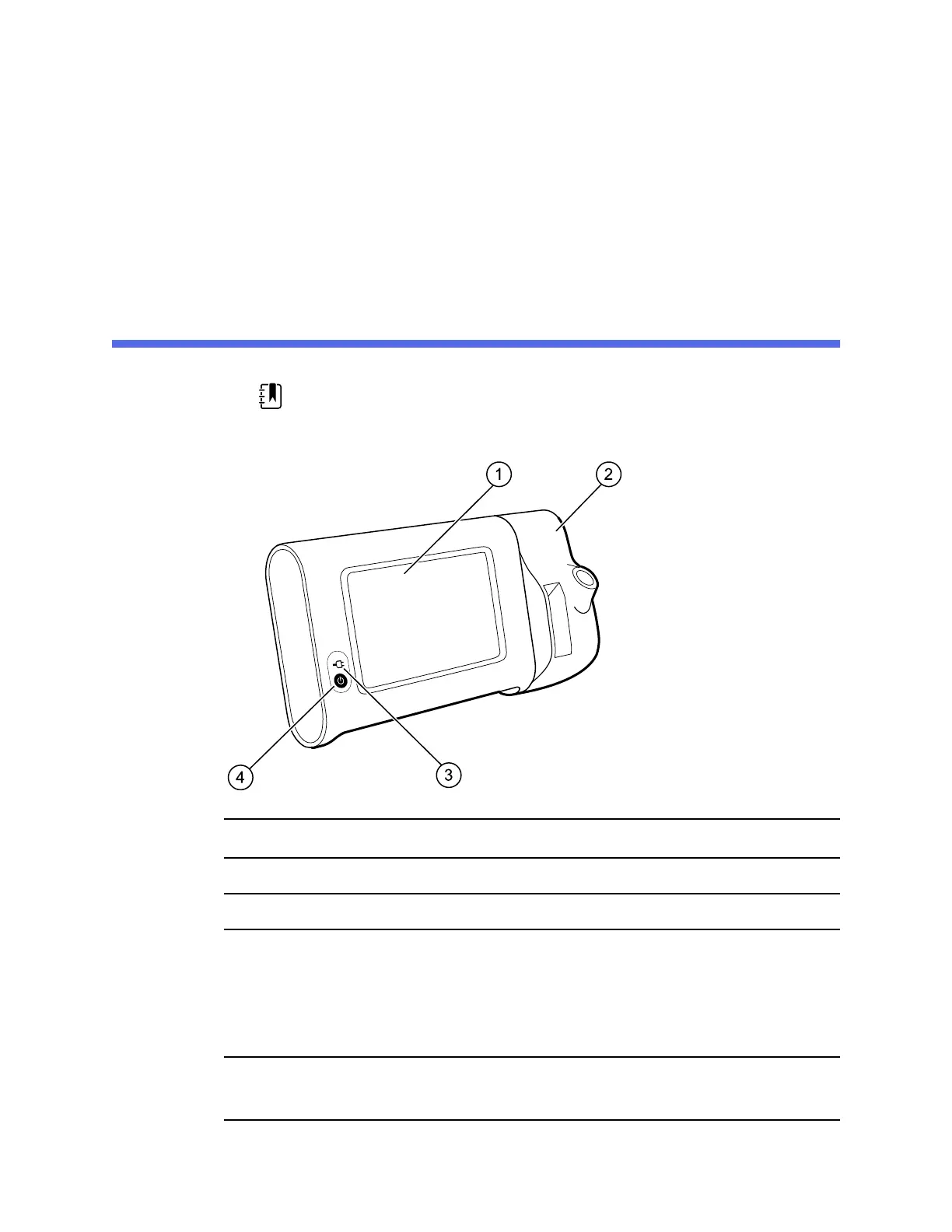

Front-Left view
No. Feature Description
1 LCD screen 7" color touchscreen provides a graphical user interface
2 Thermometry Secures the SureTemp unit to the monitor
3 Battery charge and power-up status
indicator
The LED indicates the charging and power-up status when
connected to AC power:
• Green: The battery is charged
• Amber: The battery is charging
• Flashing: The monitor is powering up
4 Power button
Blue button on lower-left corner of the monitor:
• Powers on the monitor
19
