Hillrom Welch Allyn Connex Spot Monitor Service Manual

Reassembly notes
Kit items:
• 105939, End cap
• 105923, Back housing (includes battery, speaker foam, 6 screws, and labels)
NOTE The back housing is not available for direct purchase. Welch Allyn limits
availability of certain parts to Authorized Service Personnel only. These limitations
are required to maintain product safety or maintain current regulations.
NOTE Reassembly is the reverse of disassembly.
Remove the temperature module or housing
The monitor is configured with either a SureTemp or Braun ThermoScan PRO 6000 temperature
module. Proceed witih the disassembly steps that apply to your device.
Remove the SureTemp module

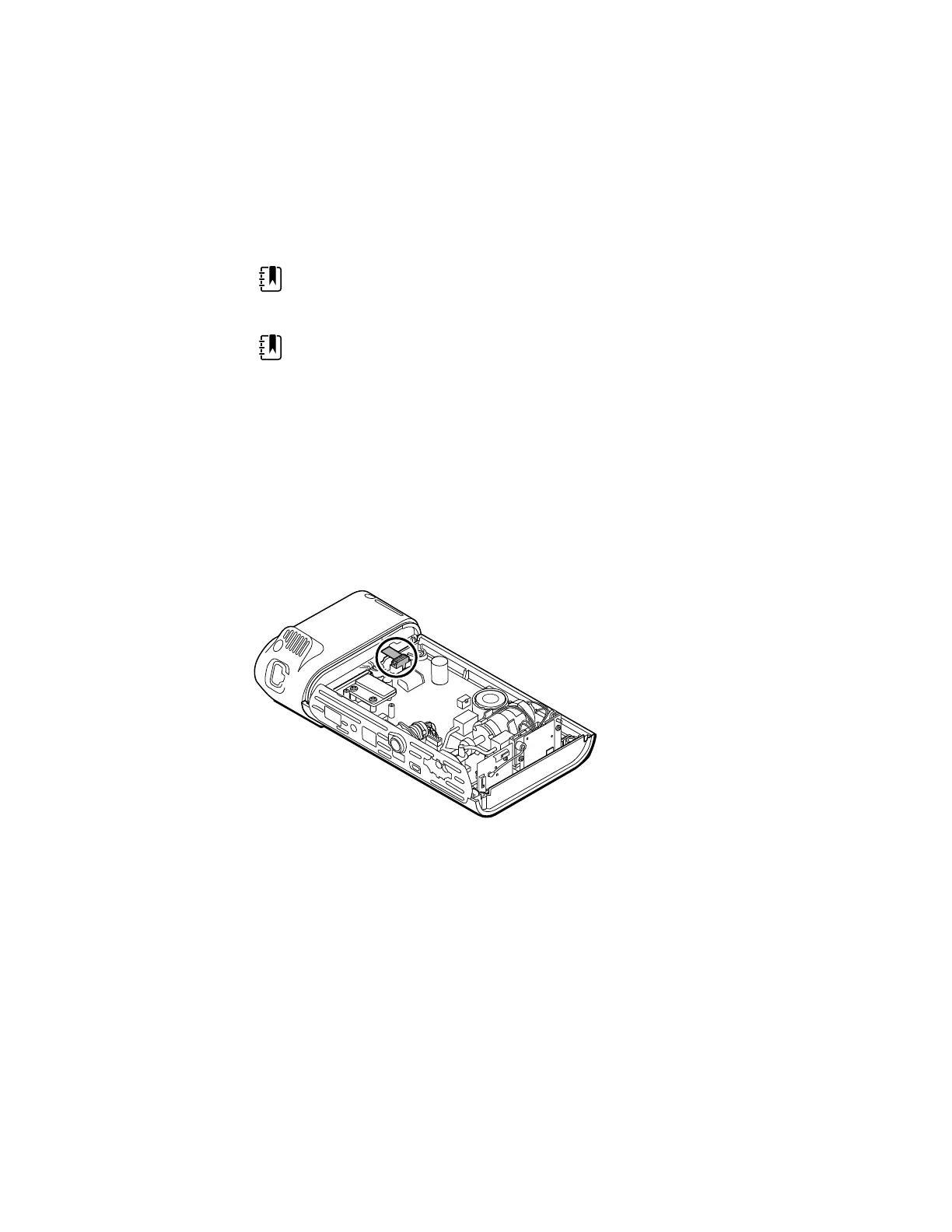

1. Disconnect the ribbon cable by lifting the connector.
