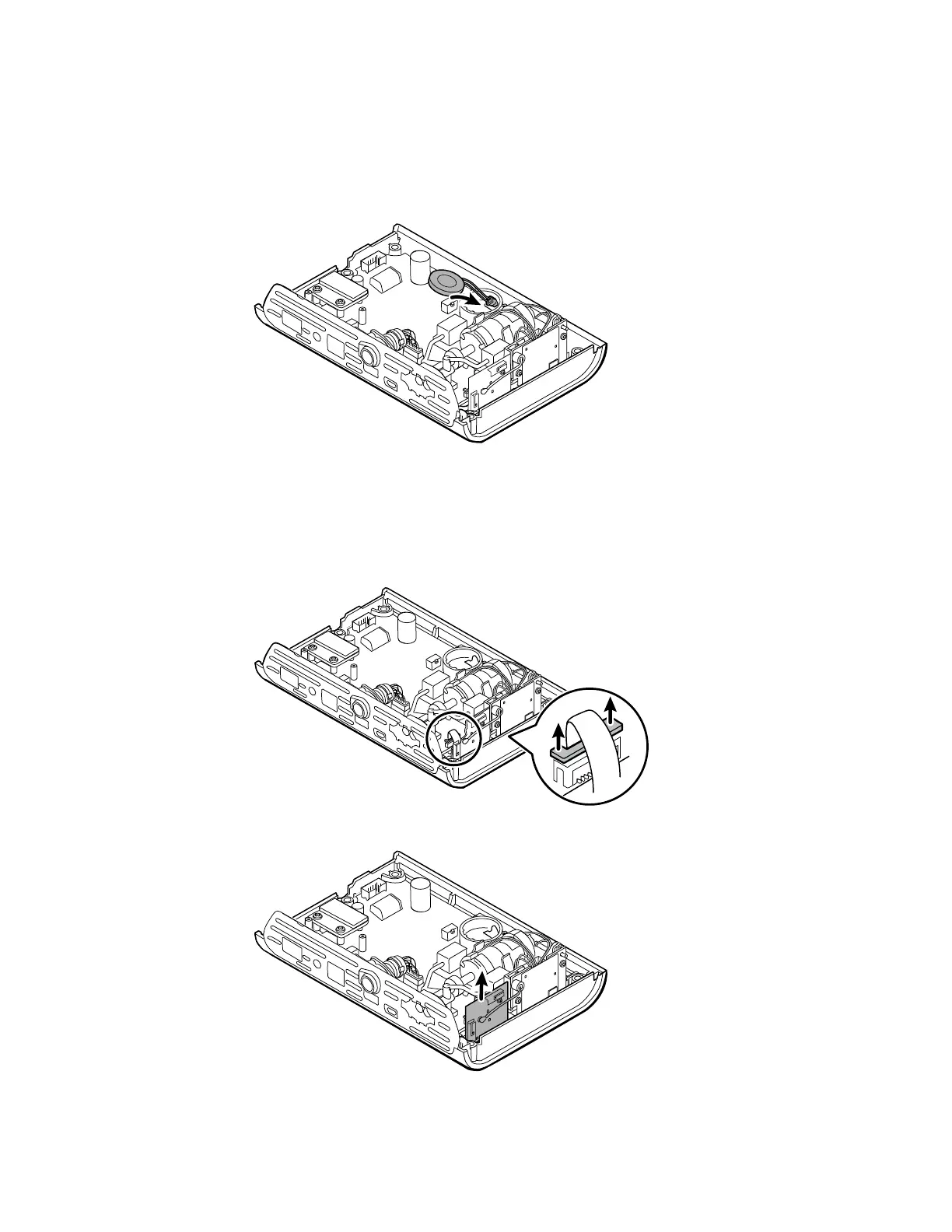

When replacing the speaker
1. While holding the speaker, guide the wire through the hole in the pump assembly and drop
the speaker into place.
2. Connect the speaker wire to the main PCA board.
Separate the main PCA board from the front housing
1. Disconnect the power switch flex cable from the main PCA board.
2. Lift the antenna board straight up out of its slot and let it hang.
56 Disassembly and repair Welch Allyn® Connex® Spot Monitor
