Hillrom Welch Allyn Connex Spot Monitor Service Manual

Disassembly overview

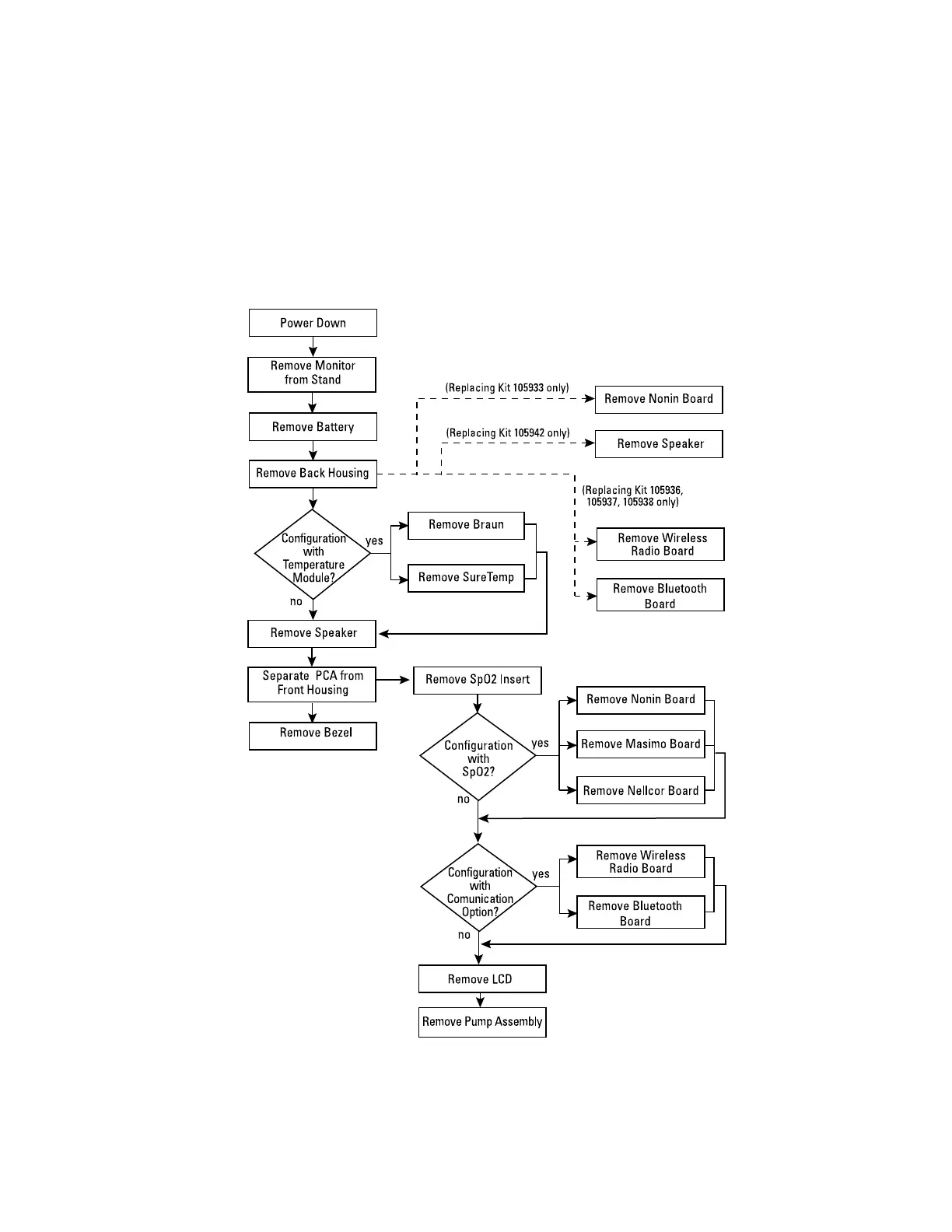

The following flow chart provides an overview of the complete disassembly of the device. Most
disassembly activities require that you complete a subset of the steps detailed here. The flow chart
indicates the steps which must be completed in sequence to remove a particular component.
Because a different sequence of preliminary steps is required to remove certain components, you
should use this flow chart as a reference at the start of every disassembly and component
replacement procedure.
