Reassembly notes
Kit items:
Batt99, 9-cell Lithium-ion battery, single pack
105972, APM work surface, battery door (if needed)
NOTE Reassembly is the reverse of disassembly.
Disassembly and assembly notes for mobile stands and
power supplies
The following table provides an at-a-glance view of the service kits that are compatible with the
combination of mobile stand and power supply based on the date of manufacture. This section is
divided into four major subsections, defined in the table below.

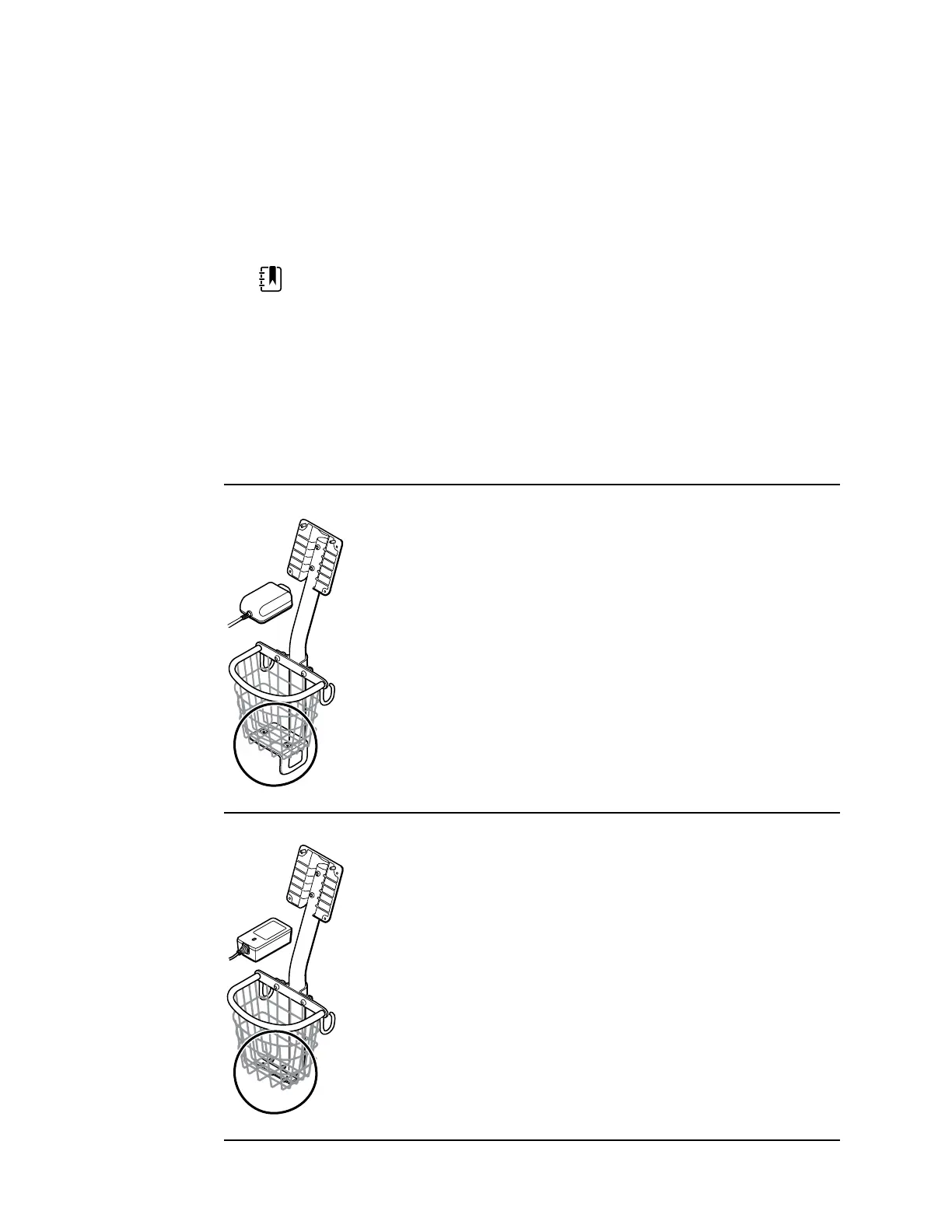

Section A CSM devices with a 4400-MBS or 7000-MS3 mobile stand meeting these
criteria:
4400-MBS or 7000-MS3 mobile stand manufactured before 02/2022* or
earlier
7000-PS power supply manufactured before 02/2022* or earlier
Power supply model: MENB1035A1500F02
Section B CSM devices with a 4400-MBS or 7000-MS3 mobile stand meeting these
criteria:
4400-MBS or 7000-MS3 mobile stand manufactured after 02/2022* or
later
7000-PS power supply manufactured after 02/2022* or later
Power supply model: FW8031M/DT/15
Service manual Disassembly and repair 77
