Hillrom Welch Allyn Connex Spot Monitor Service Manual

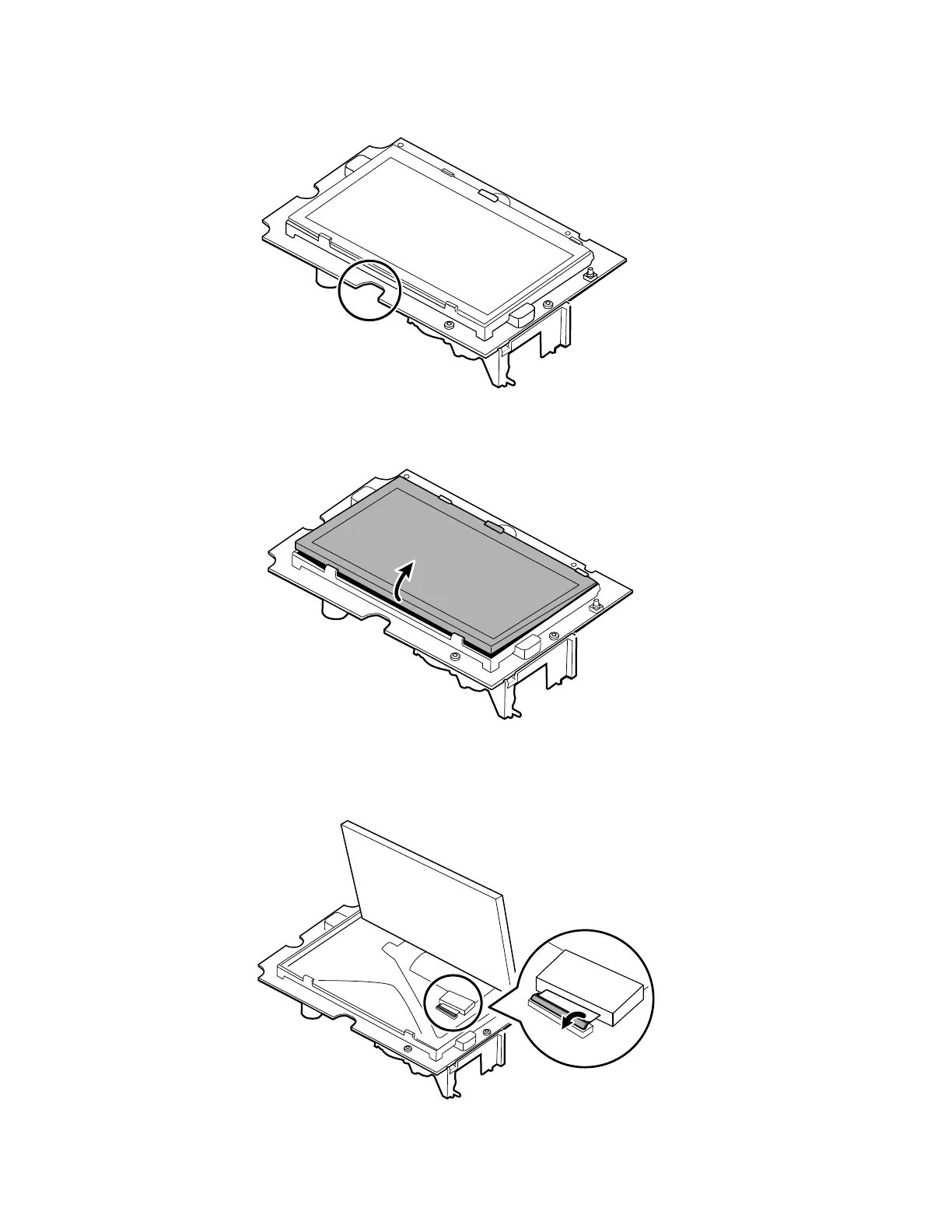

3. On the side of the main PCA board with the notch, carefully lift the LCD past the tabs, and tilt
the LCD upward.
4. Remove the Gaff tape covering the bale connector and set it aside for reassembly.
5. Carefully lift the bale (locking mechanism) of the LCD flex cable connector on the main PCA
board and remove the LCD.
Service manual Disassembly and repair 67
