8.3 Selecting the Connections and Protocol
104
Thoroughly read "Handling the Test Leads and Cables" (p.8) beforehand.
Connect a LAN cable to the LAN connector of the device.
If the green LED on the LAN connector is not lit even after the device has been
connected to the LAN, the device or connection device may be malfunctioning or
the LAN cable may have a broken wire.
GP-IB Connector
When connecting the device to your LAN with a LAN cable laid outdoors, takeap-
propriate countermeasures that include installing a surge protector for LANs.
Such signal wiring is susceptible to induced lighting, which can cause damage to
the device.

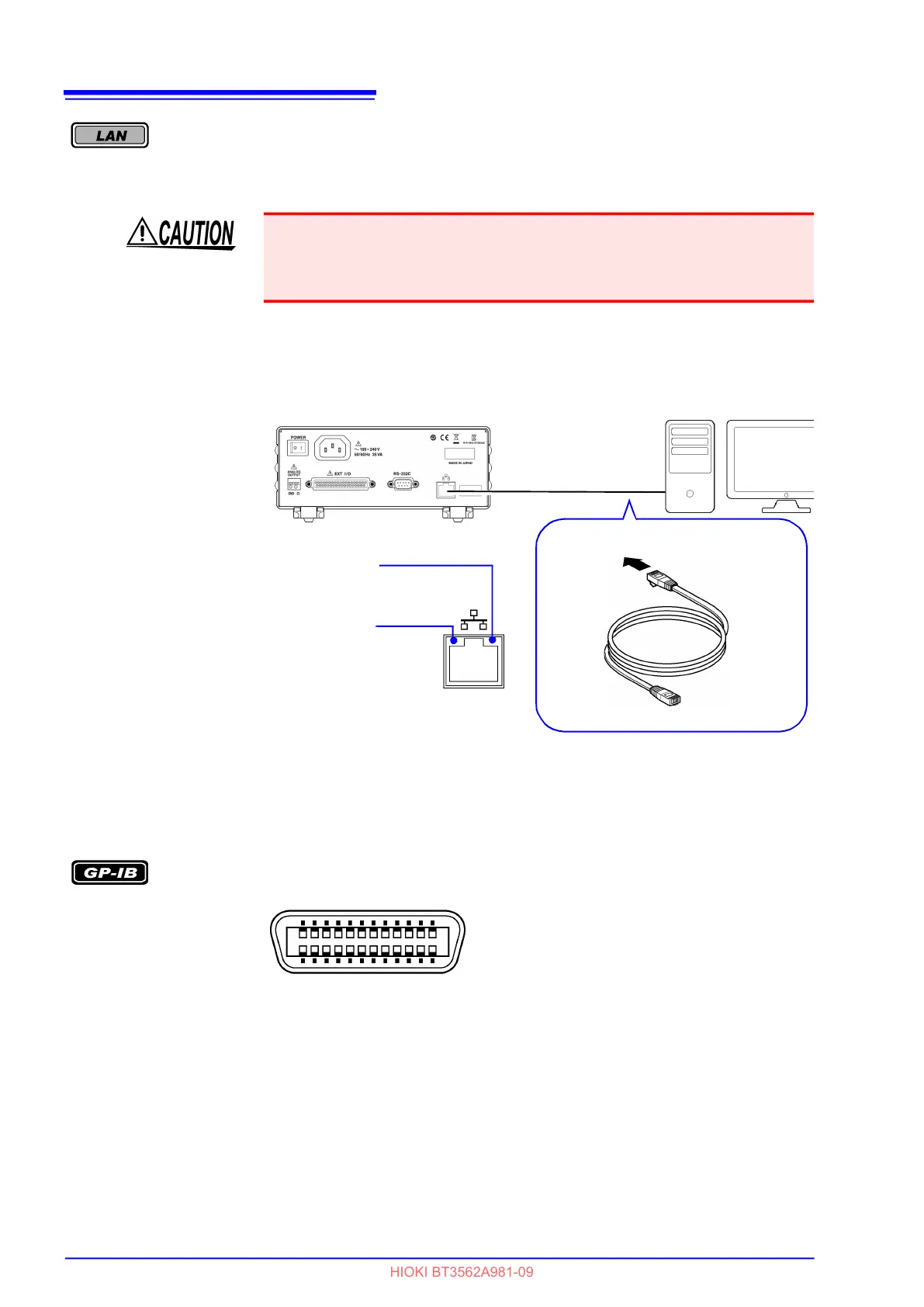

Device LAN connector
PC and hub
PC
Rear
Green LED
Lit: Linking
Blink: Communicating
Orange LED
Off: 10BASE-T
Lit: 100BASE-TX
LAN cable
Recommended cable: Model 9642 LAN cable (optional), 100BASE-TX or
10BASE-T compatible LAN cable (up to 30 m, straight cable and cross cable
can be used)
Connecting a GP-IB cable.
Recommended cable:
Model 9151-02 GP-IB Connector Cable (2 m)
