4.1 Comparator Function
48
11

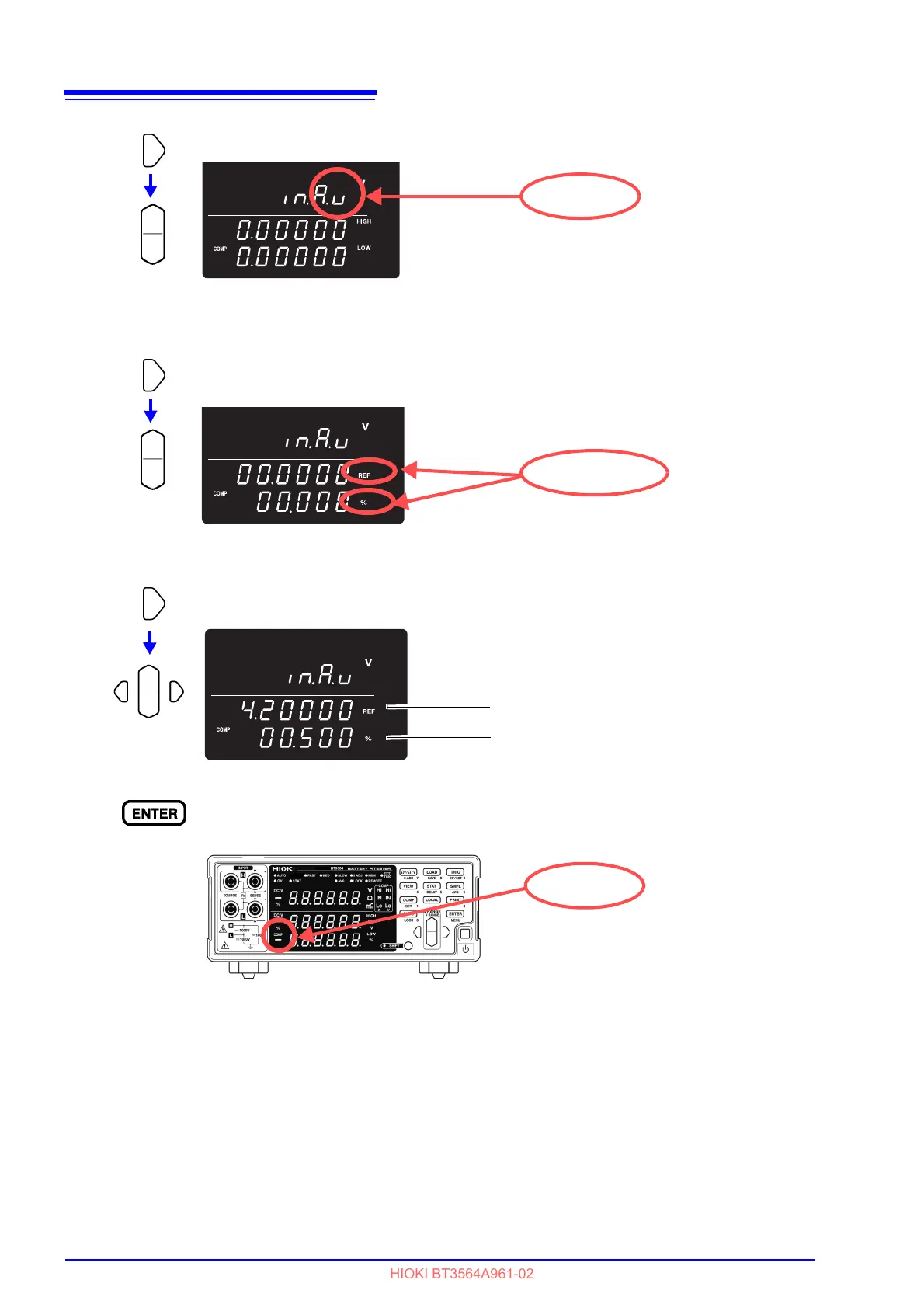

Press so that the indicated position blinks, and select voltage.
r .............Resistance
u ............Voltage
12
Press so that the indicated position blinks, and select the comparison method for
the comparator (for this example, REF/%).
HIGH, LOW ..... Compare by upper and lower thresholds (default setting)
REF, %............. Compare by reference value and tolerance
13
Switch to the Ref/% threshold setting display, and specify the thresholds.
14
Applies the settings and returns to the measurement display.
The comparator function is enabled.
To cancel the settings: SHIFT key
u flashing
REF and % flashing
Or
numeric
keypads
For this example,
Reference value: 4.2 V
Tolerance: 0.5%
COMP lit
