4.1 Comparator Function
49
4
Chapter 4 Applied Measurement
15

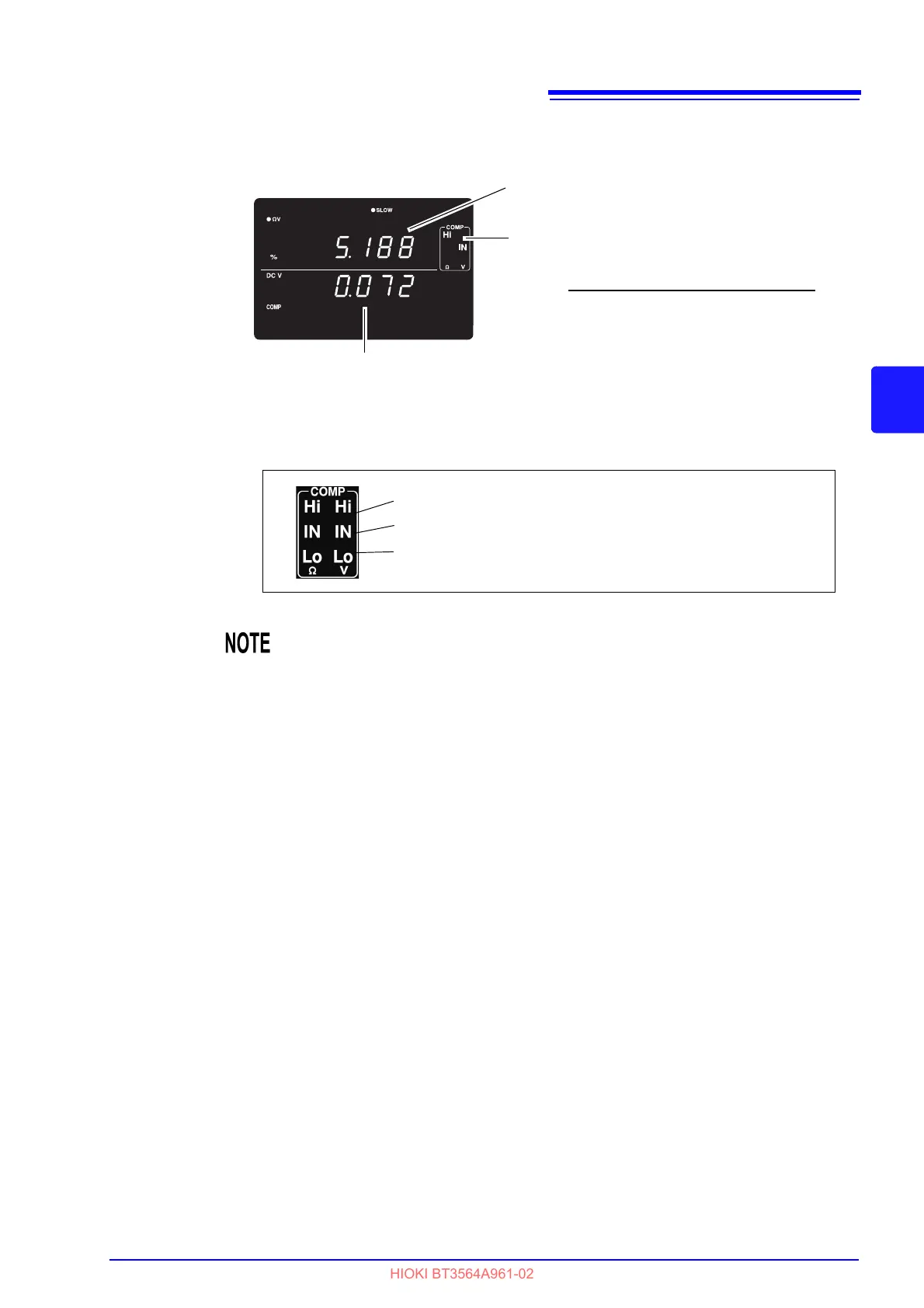

Connect a test object and judge the measured value.
In the V mode, you can verify comparator settings by pressing the VIEW key.
See
" Switching Between Measurement Value and Comparator Setting Displays" (
p.56).
The measured voltage value is displayed as its relative percentage offset
from the reference value (%)
The measured resistance value is displayed as
its relative percentage offset from the reference
value (%)
Judgment result
Measured resistance value - Reference value
=
Reference value
x 100
Relative
percentage
Upper threshold value of setting range < Measured value
Lower threshold value of setting range Measured value Upper
threshold value of setting range
Measured value < Lower threshold value of setting range
The instrument can also base judgments on the absolute value of measured
voltage value (to prevent Lo judgments when the positive and negative terminals
are connected backwards).
See "Configuring the Absolute Value Judgment Function (Voltage)" ( p.53)
To Next Page
