● Ink Filter Replacement 7-26
11

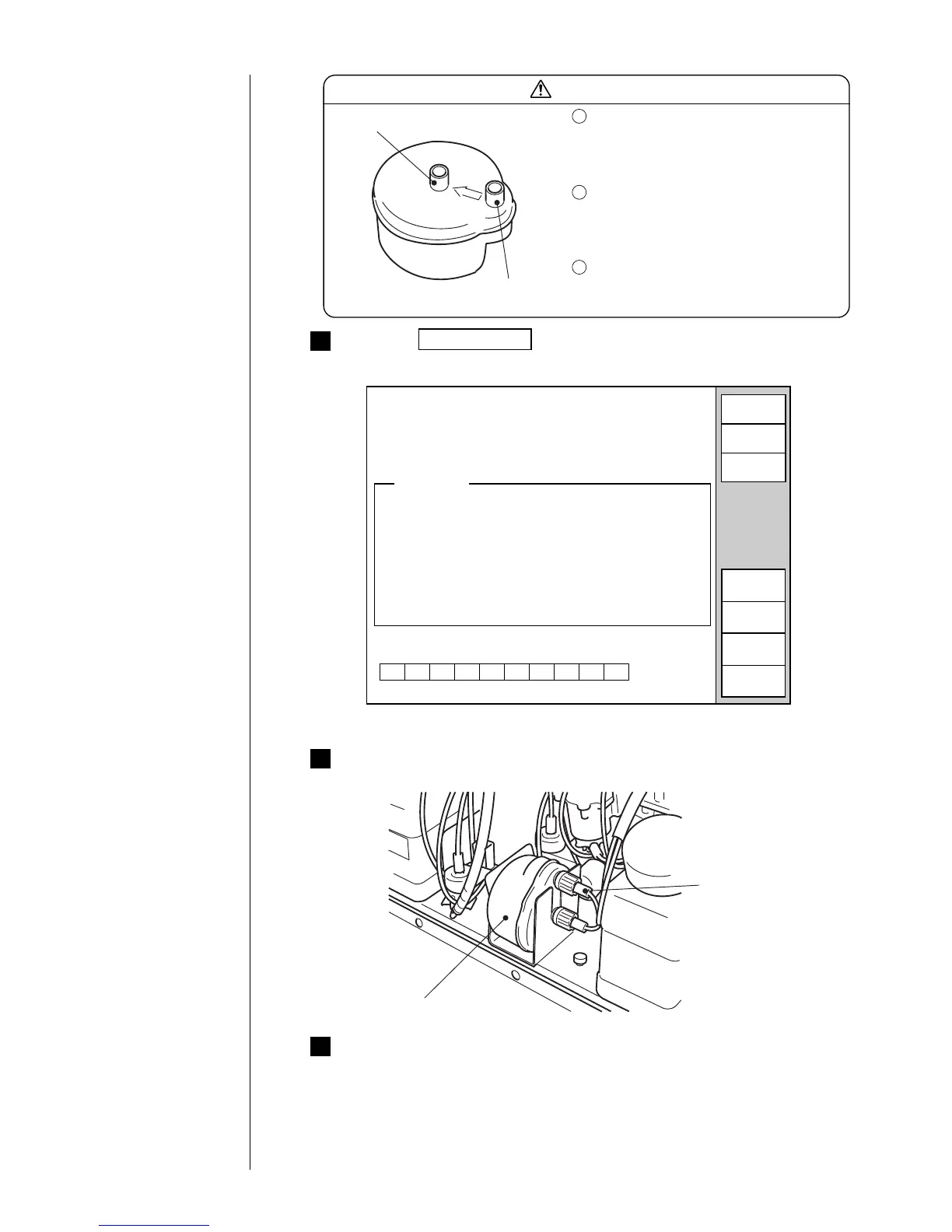

Set the ink filter as follows (piping D is the upside).
Mount and remove the piping
couplings by rotating them by hand
instead of using a tool.
Be careful not to mistake the piping
mounting positions (C is the center of
the ink filter, and D is the outside).
A small amount of ink remains within
the ink filter. Watch out for ink spillage
when replacing it.
Caution
1
2
3
10
Press the Start/Continue key.
¡
The following operating guidance appears on the display.
Circulation control
2011.07.07 12:45
Proc. status:
Function：Ink filter replacement
Proc. time: Approx. 4 minutes.
Operating guide
Change the direction of the
ink filter so that tube (D) is
at the top of the filter.
Press [Start/Continue].
Status:Service
Start/
Continue
Abort
Ink drainage
Filter rep.
Ink refill
12
Place the end of the print head in a beaker.
¡
Provide against an ink stream bend.
