Hitachi PXR-D

●Maintenance 12-2
Air filter replacement procedure
1

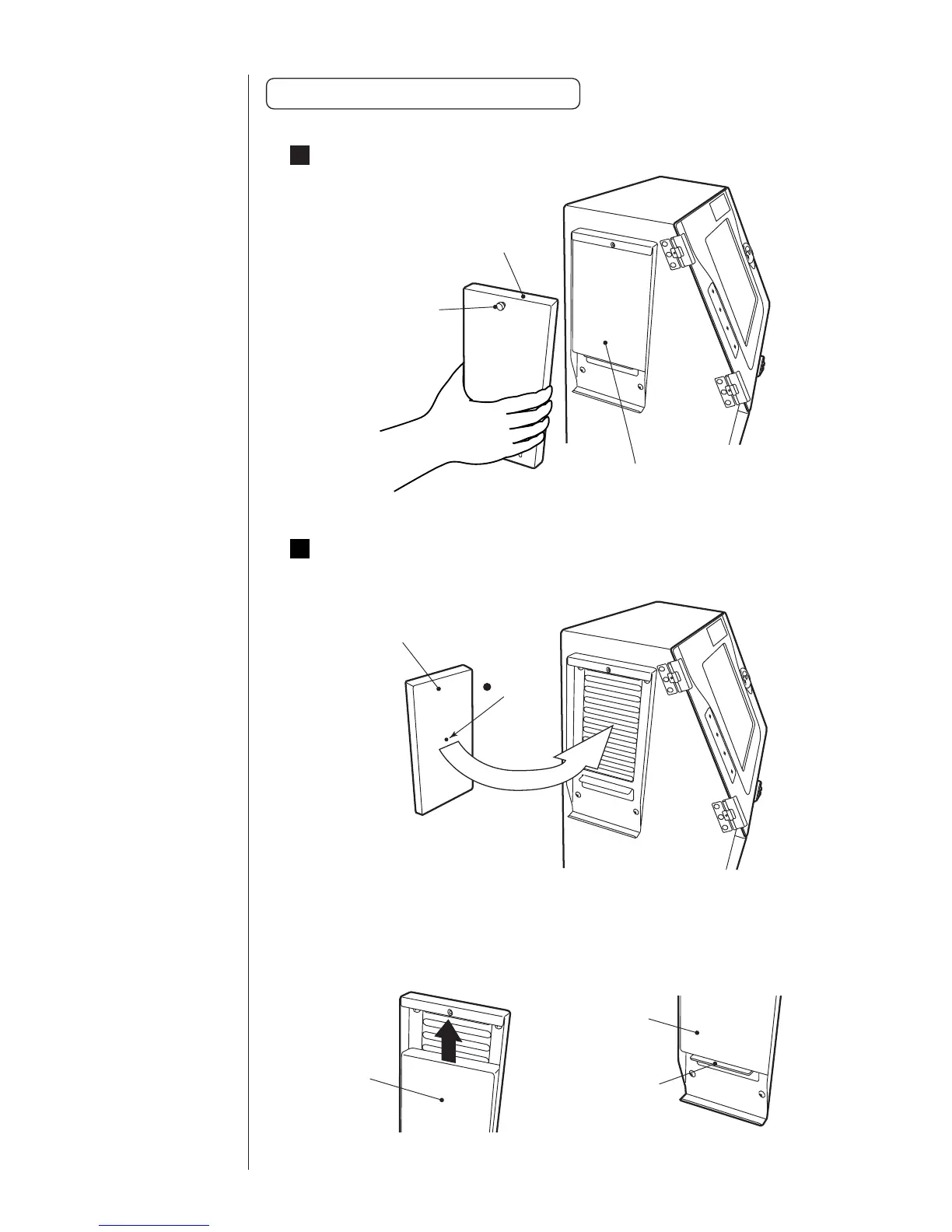

Loosen the knob and remove the air filter cover.
2
Remove the air filter, and place a new filter, making sure the
orientation is correct.
Air filter
Red Mark
(The red mark side is the
inside of the printer.)
Air filter cover
Air filter
Knob
Air filter
Air filter
Guide
(1) First insert the top of air filter. (2) Place the bottom of air filter on
the guide.
