12-3 ●Maintenance
¡ Perform this work after turning off the power of the IJ printer.
¡ Insert the filter completely. If not, dust may enter the printer and cause a failure.
CAUTION
4
Close the operation panel cover.
5
Open the "Parts usage time management" screen (the item following
the "Circulation Control" screen) and set the time of the air filter to "0."
1234567890
Incre-
ment
Decre-
ment
Parts usage time mgmt.
Ink filter ［０００００］
Circulation f. ［０００００］
Makeup ink f. ［０００００］
Air filter ［０００００］
Recovery filter ［０００００］

<Consumption>
Ink ００００００ (ml)
Makeup ink ００００００ (ml)
Print count ０００００００００
2011.07.07 12:45
Back
Cancel
changes
Reset
Status:XXXXXXXXXX
←
→
↑
↓
(hours)
Pump ０００００
Heating unit ０００００
ＭＶ１ ０００００
ＭＶ２ ０００００
ＭＶ３ ０００００
ＭＶ４ ０００００
ＭＶ５ ０００００
ＭＶ６ ０００００
ＭＶ７ ０００００
ＭＶ８ ０００００
ＭＶ９ ０００００
(hours)
Update log
2005.07.07 12:45

¡ Consumption figures of ink and makeup indicated on the "Parts usage time
management" screen are not precise, but approximate, values.

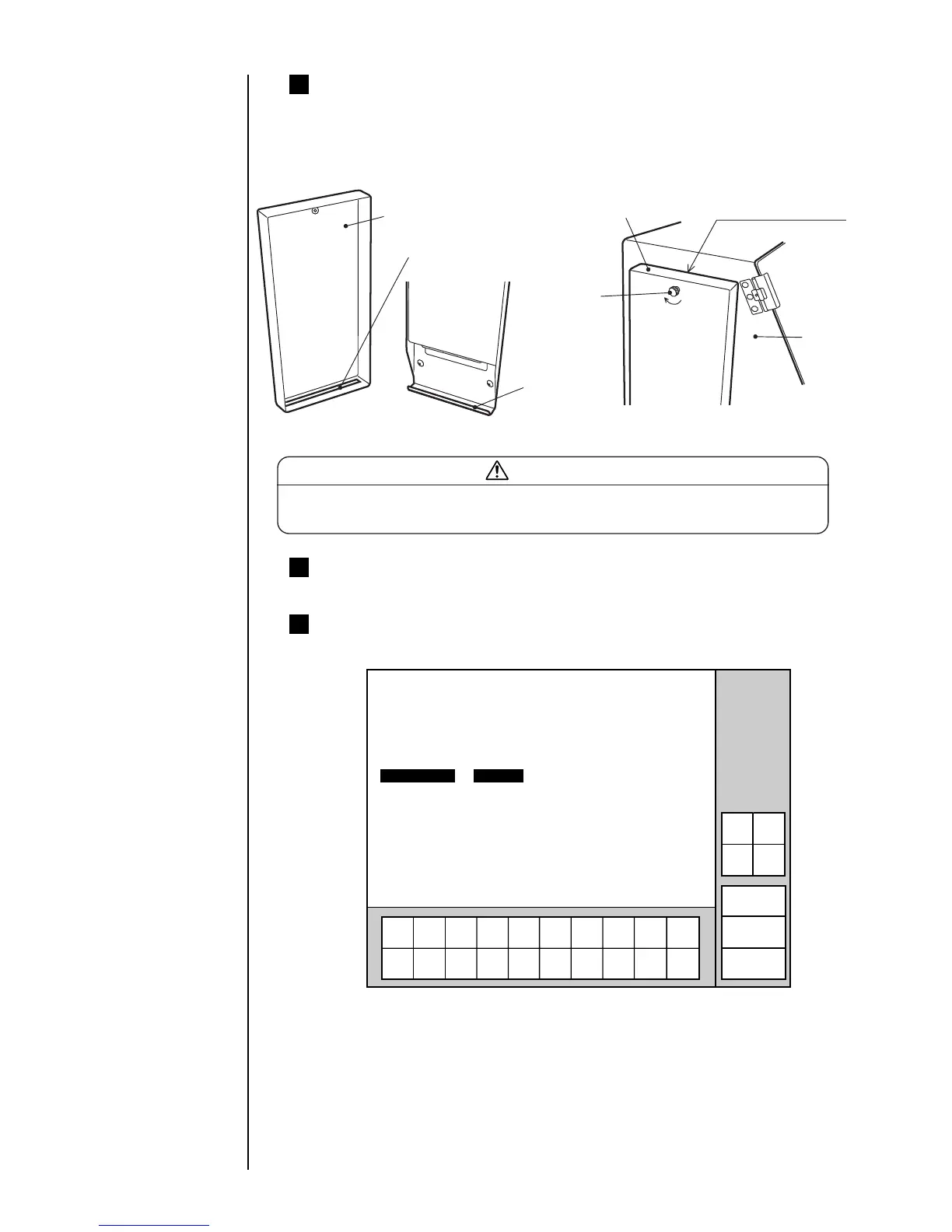

3
Reattach the air filter cover.
Air filter cover
Air filter cover
Square slot
Projecting tab
Knob
Turn
Printer
Comes into contact
(1) First hook the square slot at the
bottom of air filter cover onto the
projecting tab of printer.
(2) Turn the knob until the air filter
cover comes into contact with the
printer.
