Connection of signals 1-29

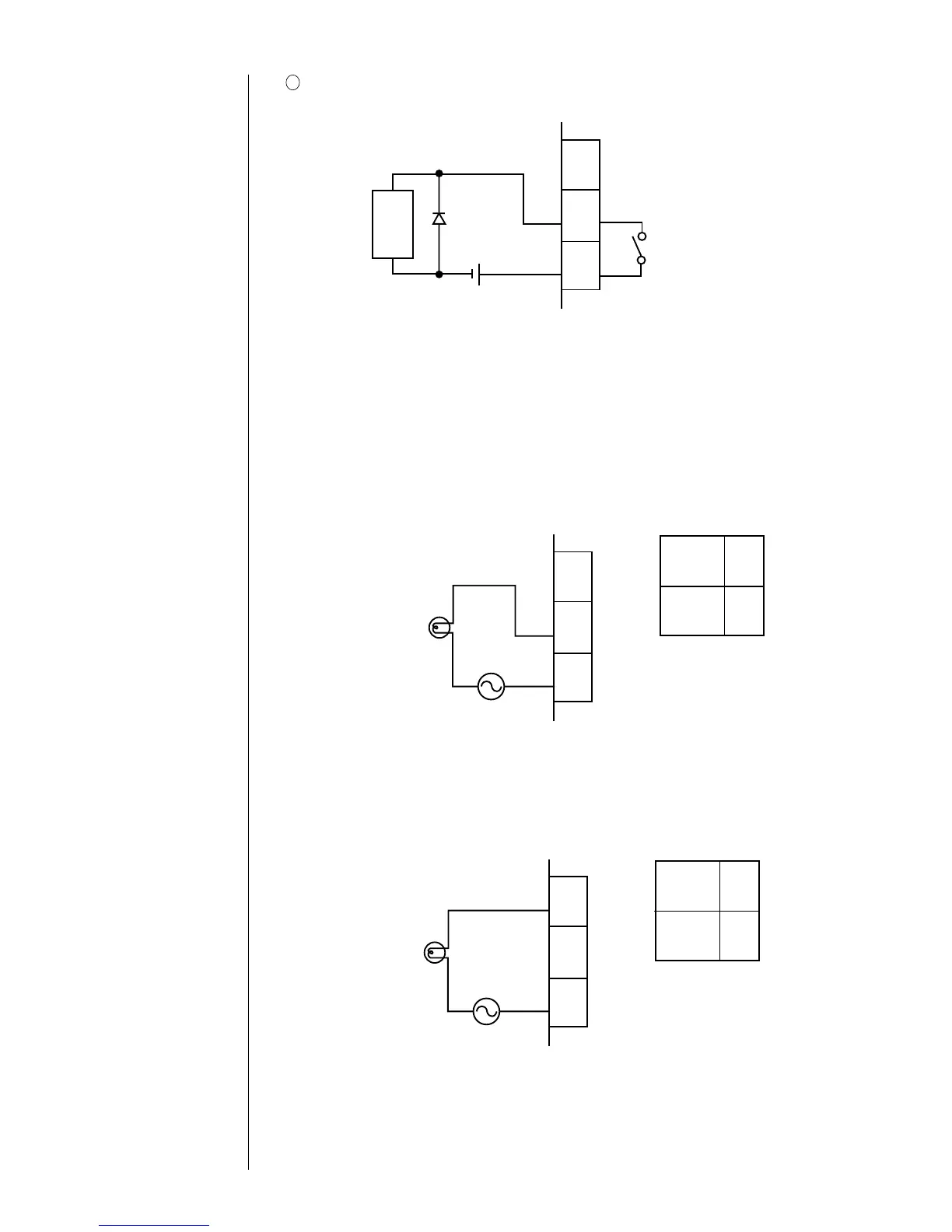

2 Diode system (applicable to DC, inapplicable to AC)
The peak inverse voltage of the employed diode must be at least 10 times as
high as the employed voltage, and its forward current must be larger than the
load current.
1.5.3-2 Fault signal output
The following describes the wiring of the signal that is outputted to the outside for the
purpose of indicating that the IJ printer is in the fault mode.
(a) When using the NO contact (make contact)
(b) When using the NC contact (break contact)
Inductive
load
TB2
1
2
3
Diode
4
5
6
NC
NO
COM
Power supply
Status indicator
lamp or the like
TB2
5-6 contact
Fault
state
Closed
Normal
state
Open
4
5
6
NC
NO
COM
Power supply
Status indicator
lamp or the like
TB2
4-6 contact
Fault
state
Closed
Normal
state
Open
