1-30 ● Connection of signals
1.5.3-3 Warning signal output
The following describes the wiring of the signal that is outputted to the outside for the
purpose of indicating that the IJ printer is in the warning mode.

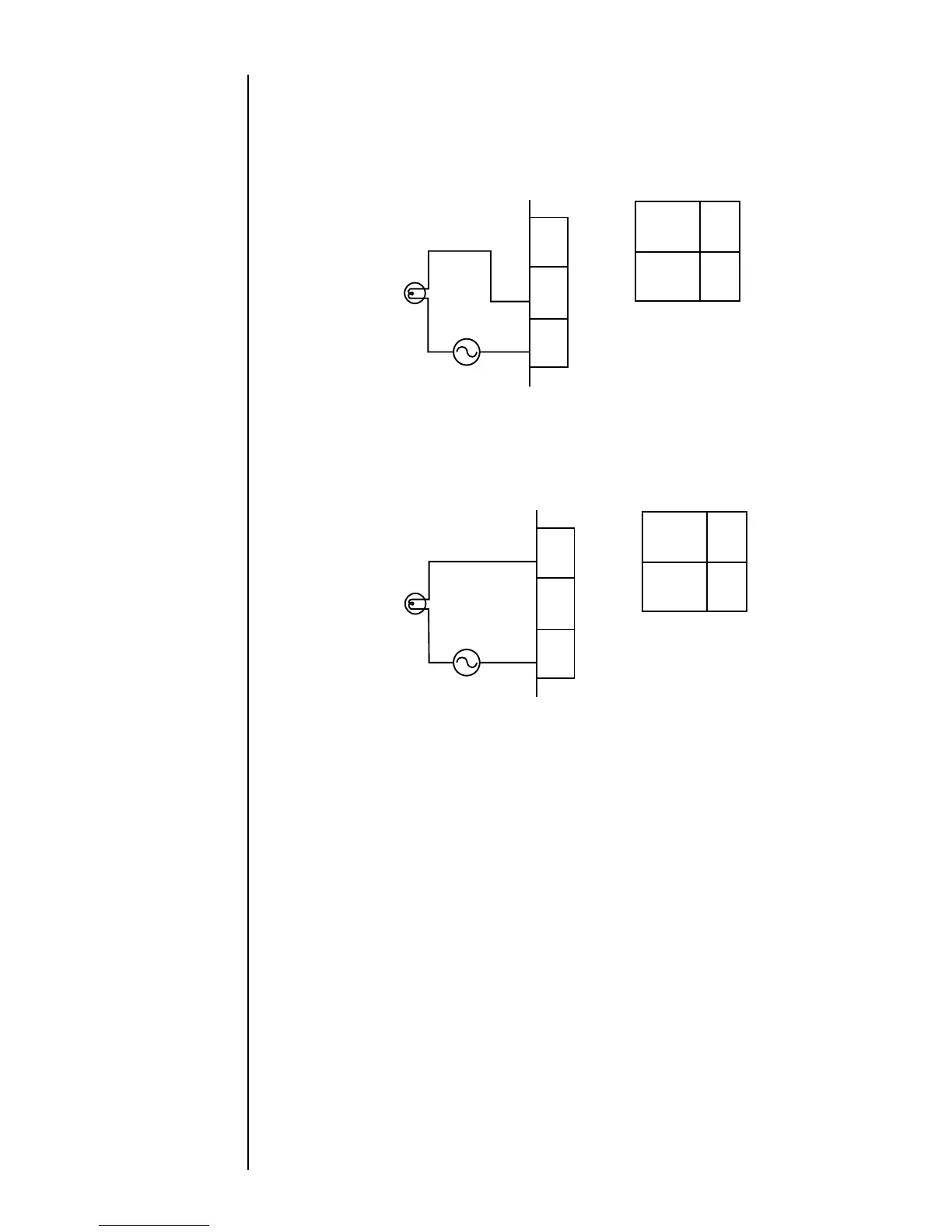

(a) When using the NO contact (make contact)
(b) When using the NC contact (break contact)
For both the NO and NC contacts, the maximum capacities of the fault and
warning condition outputs are 30 VAC/0.5A, or 30 VDC/1 A. If any load having a
greater capacity is used, furnish a separate relay in between.
Further, if a motor, relay, or other inductive load is employed, a counter-
electromotive force may be generated to reduce the useful contact life.
Therefore, be sure to provide contact protection as suggested for the ready
output signal wiring.
