Hitachi PXR-D User Manual

● Connection of signals 1-39
1.5.3-9 Input for remote control signals
These connection terminals enter actions corresponding to the run-state operation keys
of the IJ printer (Run, Stop, fault Clear, and Deflection Voltage Control (switchover
between a standby state and a ready state), by means of external switches, contact
signals, or something similar.
(a) Input specifications
・Make inputs by no-voltage contacts.
・In the case of no-contact, use terminals that satisfy the following requirements:
Withstanding voltage: 12 VDC or more
Maximum driving current: 12 mA or more
Residual voltage: 2 V or less
Leak current: 0.1 mA or less
Driving method: Open collector
・In the case of contact signal
In the case of the chattering when contact is ON or OFF , use terminals of
2.0 ms or less.
TB1
13
16
15
14
10
(No-voltage contact)
The current applied to
the system is about
12 mA.
Signal ground
High-voltage ON/OFF
Run
Reset (Clear)
Stop
+12V
GND
The same holds true
for the other signals.
・When all input contacts are ON, the system runs in the same manner as when
the Run,
Clear, Stop, or Deflection Voltage Control key is pressed.
¡ The voltage and current used by the external device must meet the following
specifications.
IL≦20mA (V
CE：TYP0.6V, MAX2V)
The IL maximum permissible current is 50 mA.
Vd≦DC30V
(b) Changeover between printing-in-progress and printing-complete
Perform printing-in-progress/printing-complete signal changeover setup from the
user environment setup screen.
(See Section 4.2, Setting the User Environment).

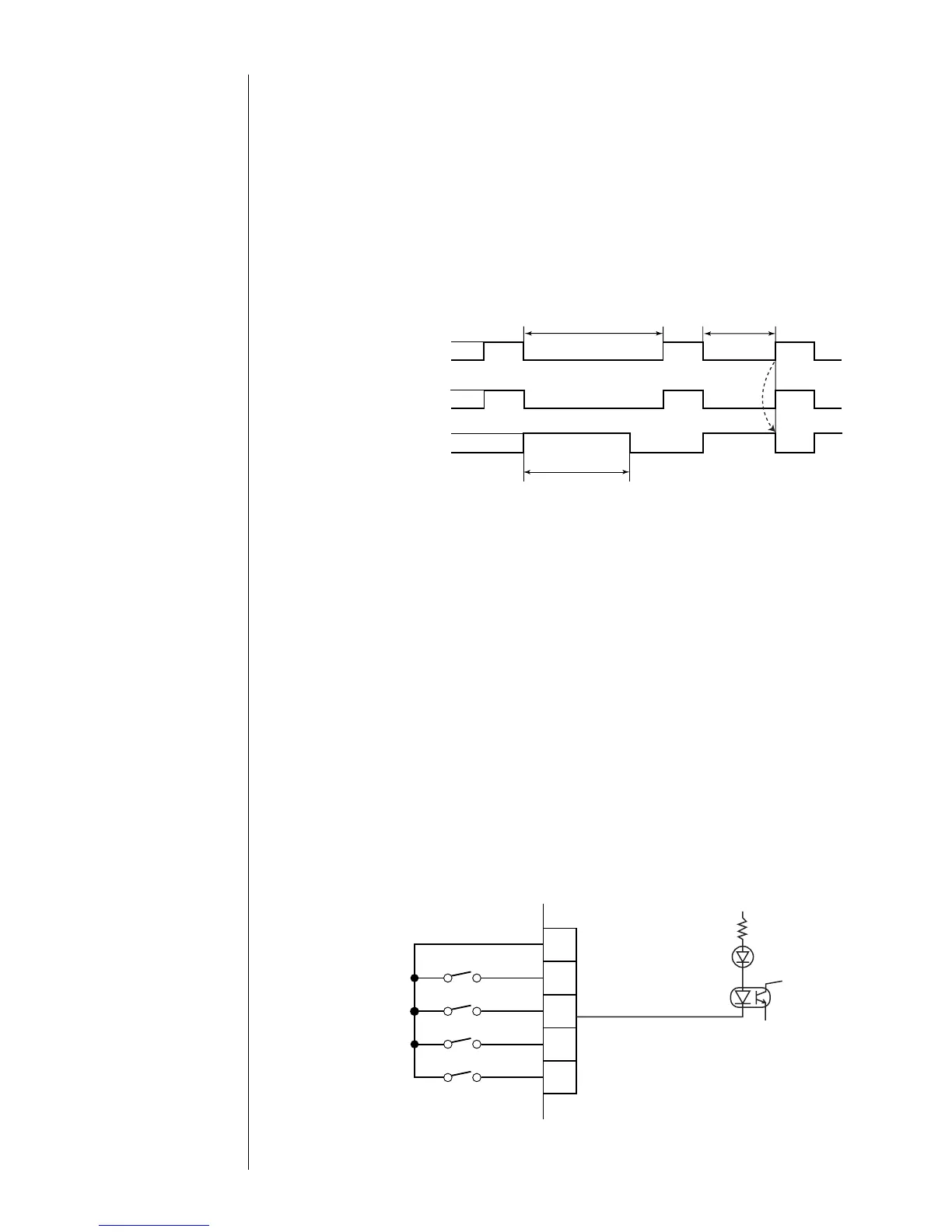

(c) Signal timing
Printing operation
Printing in progress
signal
Printing-complete
signal
1 sec
OFF
ON
Printing
-complete signal
OFF
ON
Less than 1 sec
※
※The printing-complete signal turns OFF when the next
printing operation starts within an elapse of less than 1 second.
more than 1 sec
