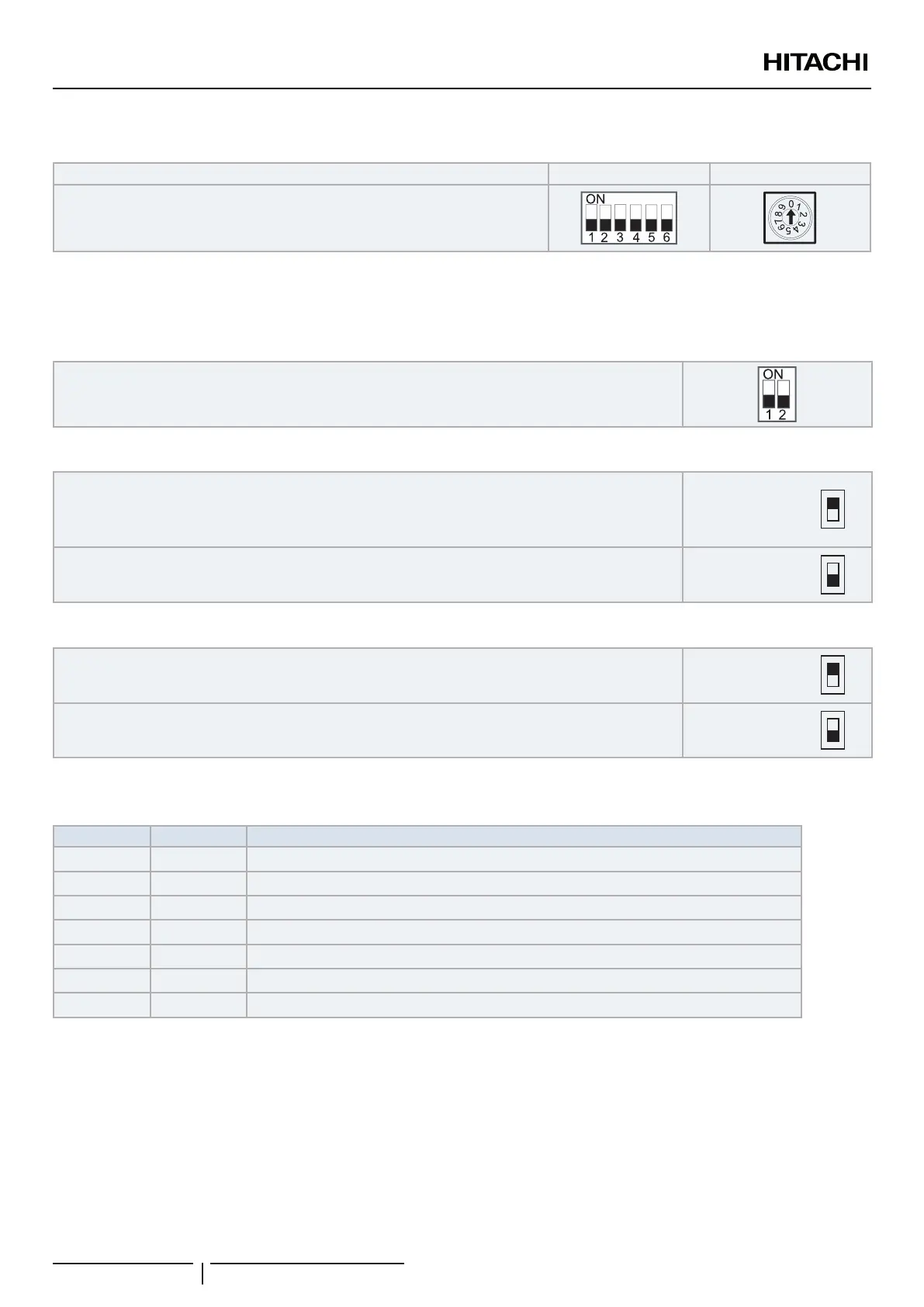

Hitachi YUTAKI RWM-2R1E User Manual


DSW15 & RSW2 / DSW16 & RSW1: Not used
DSW15 / DSW16 RSWW / RSW1
Factory setting
? NOTE
Don’t change this setting, otherwise malfunction will be occur.

DSW18: Not used (only for YUTAKI S COMBI)
Factory setting
(Do not change)

SSW1: Remote/Local
Factory setting
Remote operation
Remote
Local
Local operation
Remote
Local

SSW2: Heat/Cool (when SSW1 is in local setting)
Factory setting
Heat operation
Heat
Cool
Cooling operation (when cooling kit installed)
Heat
Cool
7.3.2.3 LED indication
Name Colour Indication
LED1 Green Power indication
LED2 Red Power indication
LED3 Red Heat pump operation (thermo ON/OFF)
LED4 Yellow Alarm (ickering with 1 sec interval)
LED5 Green Not used
LED6 Yellow H-LINK transmission
LED7 Yellow H-LINK transmission for unit controller
ELECTRICAL AND CONTROL SETTINGS
PMML0575 rev.2 - 03/2022
92
