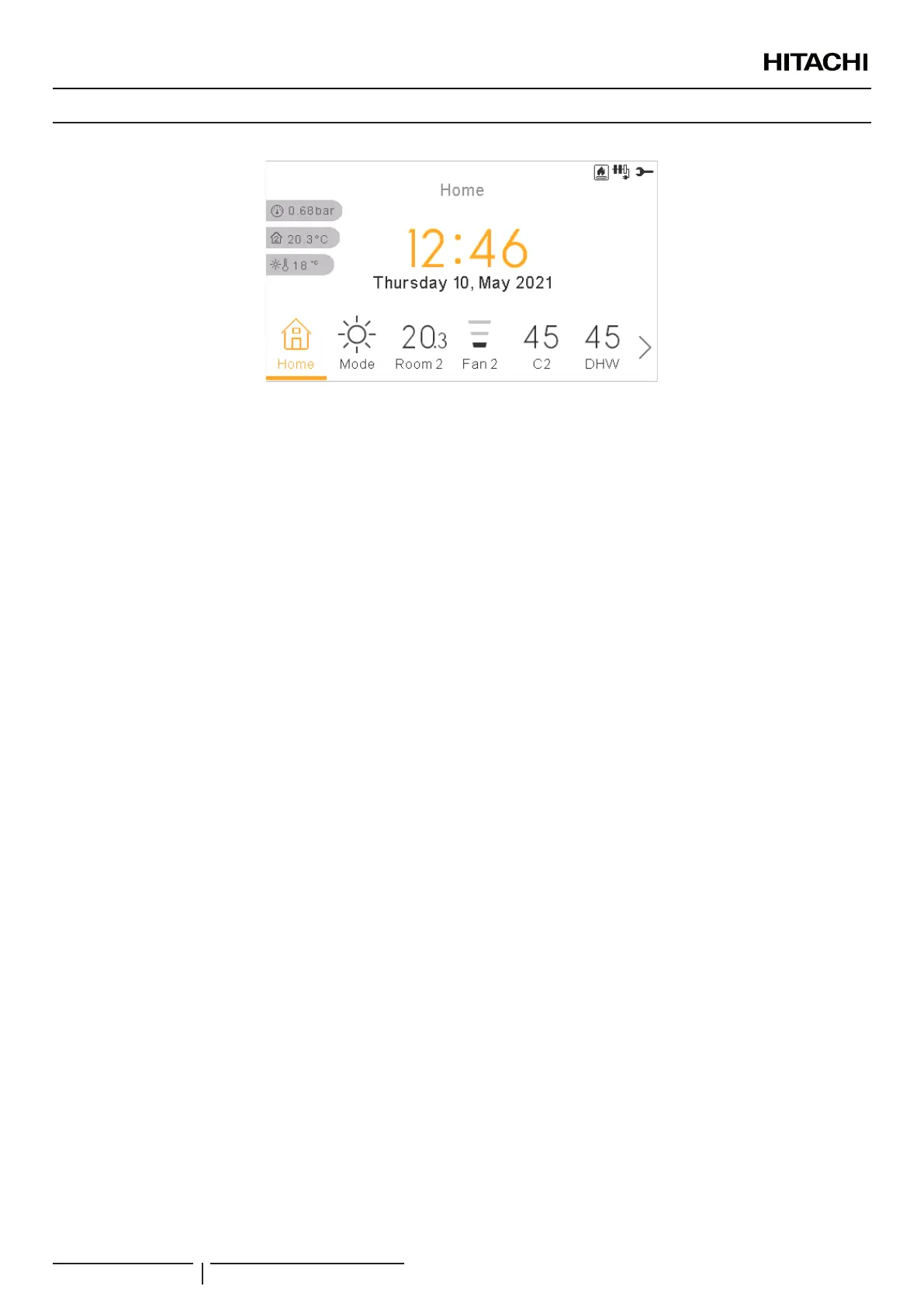

9.5 MAIN VIEW
Main view of the device is composed by a bottom tab widget to move around the different views:
• Home
• Mode
• Room 1 (if space is small it shows R1)
• Room 2 (if space is small it shows R2)
• Circuit 1 (if space is small it shows C1)
• Circuit 2 (if space is small it shows C2)
• Fan 1 (if space is small it shows F1)
• Fan 2 (if space is smaill it shows F2)
• DHW
• SWP
• Menu
UNIT CONTROLLER (PC-ARFH2E)
PMML0575 rev.2 - 03/2022
188
