ENGLISH

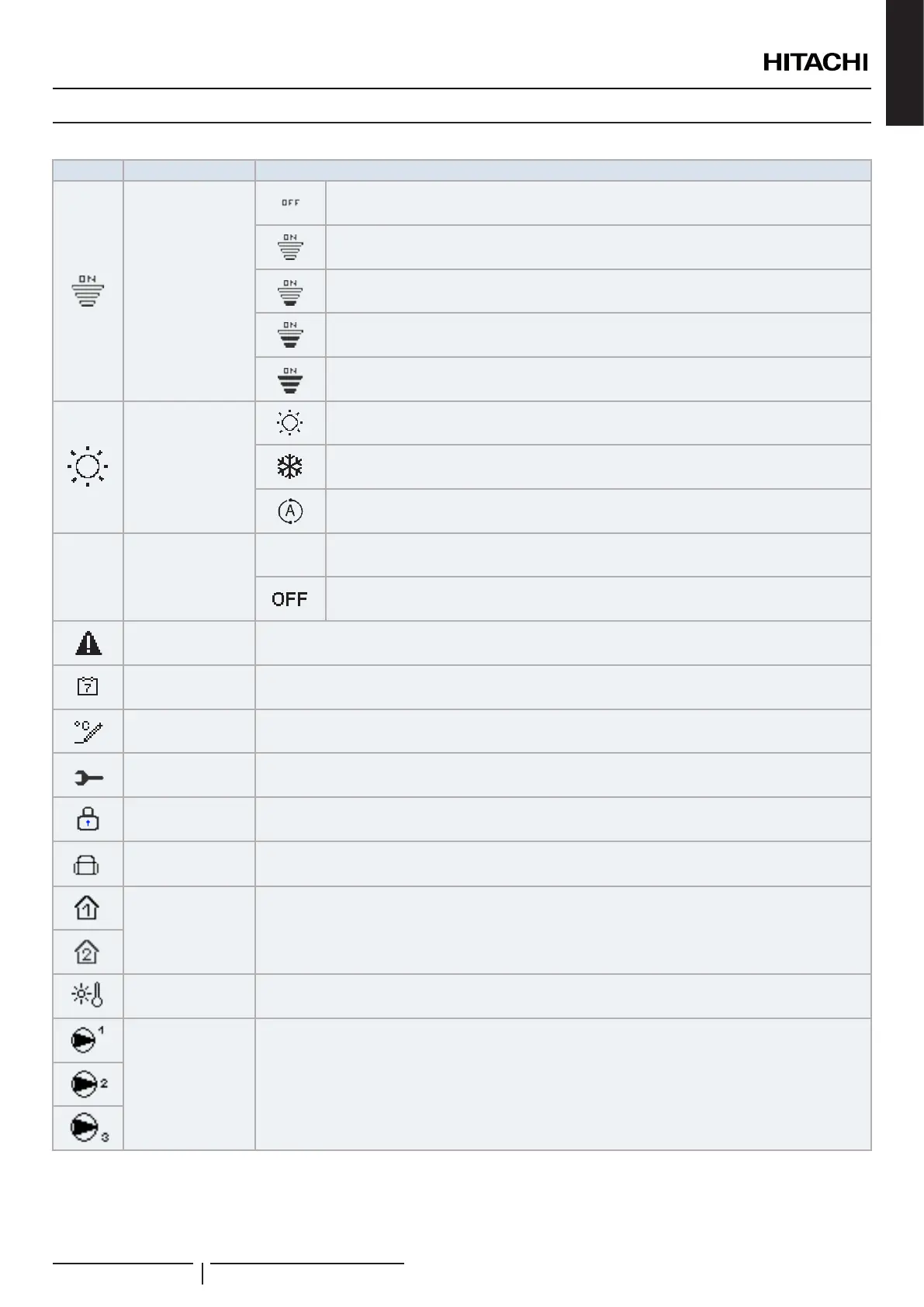

11.2 DESCRIPTION OF THE ICONS
Icon Name Explanation
Status for circuit 1, 2,
DHW and swimming
pool.
Circuit I or II is in Demand-OFF
Circuit I or II is on Thermo-OFF
Circuit I or II is working between 0 < X ≤ 33% of the desired water outlet temperature
Circuit I or II is working between 33 < X ≤ 66% of the desired water outlet temperature
Circuit I or II is working between 66 < X ≤ 100% of the desired water outlet temperature
Mode
Heating
Cooling
Auto
88
Setting temperatures
Value Displays the setting temperature of the circuit 1, circuit 2, DHW and swimming pool
Circuit 1, Circuit 2, DHW or Swimming Pool are stopped by button or timer
Alarm Existing alarm. This icon appears with the alarm code
Timer Weekly timer
Derogation When there is a derogation from the conîš¿gured timer
Installer mode Informs that user controller is logged on the installer mode which has special privileges
Menu lock
It appears when menu is blocked from a central control. When indoor communication is lost, this icon
disappears
Holiday
When some of the zones are set as holiday, it has it’s own holiday icon on their icons zone.
The holiday icon is also shown on the home screen.
Ambient temperature The ambient temperature of Circuit 1 or 2 is indicated at the right side of this button
Outdoor temperature The outdoor temperature is indicated at the right side of this button
Pump
This icon informs about pump operation.
There are three available pumps on the system. Each one is numbered, and its corresponding number is
displayed below to the pump icon when it is operating
YUTAKI CASCADE CONTROLLER ATW-YCC-03
PMML0575 rev.2 - 03/2022
267
