ENGLISH

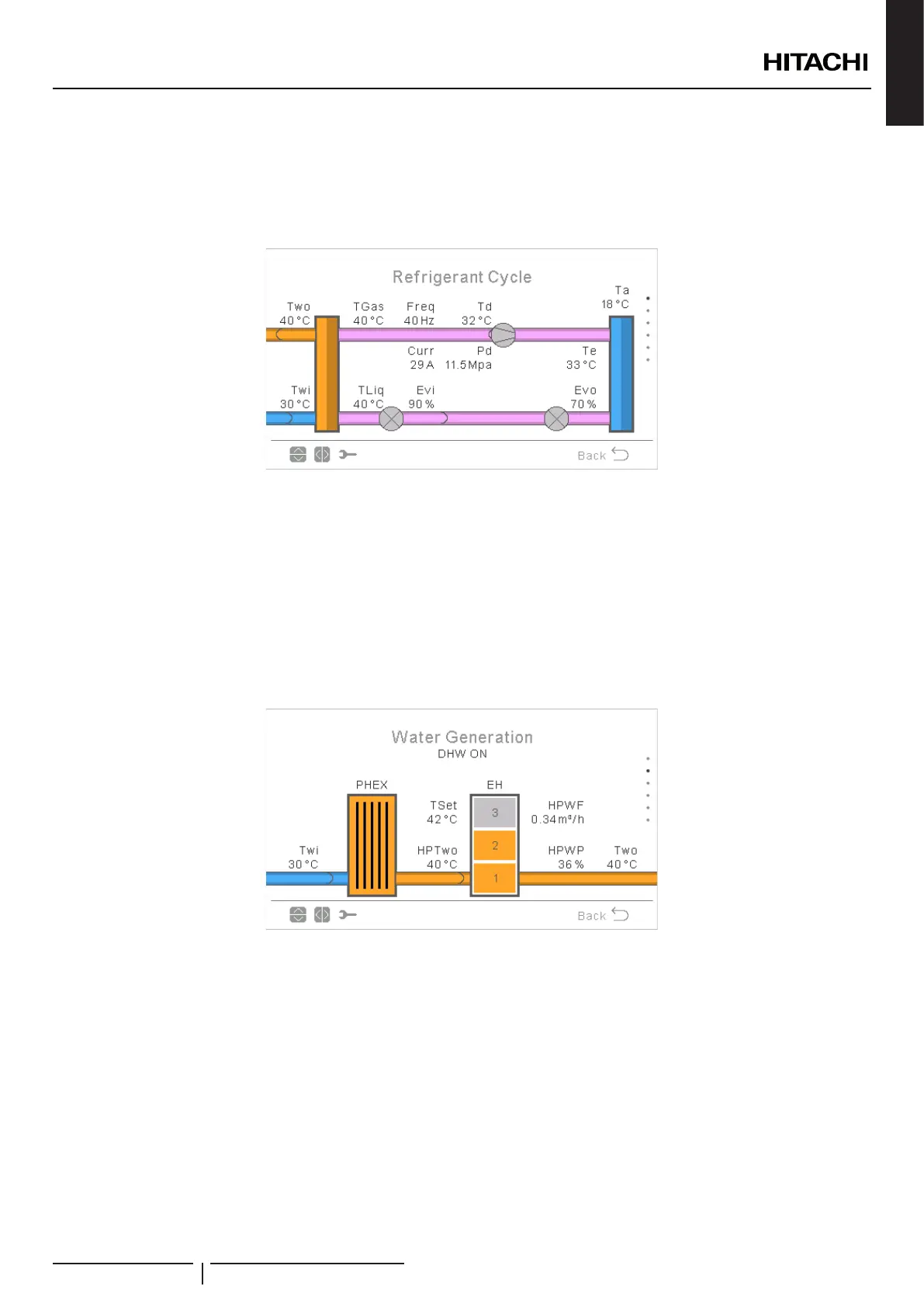

9.13.1.1 Live view
Live view is a summary of system status information shown on operation information.
It has the following screens:
Refrigerant Cycle
Considerations:
• Arrows move in anti-clock direction in Heating mode. When Cooling arrows move in clock direction.
• Pipes between exchangers are pink if operating or gray if unit is in thermo off.
• T
WO
pipe is orange when heating and blue when cooling.
• T
WI
pipe is orange when cooling and blue when heating.
• Defrost indication is only shown when defrosting.
• T
WO
value is T
WO
HP when using a YUTAKI S COMBI or YUTAKI S, otherwise it is normal T
WO.
Water generation
Considerations:
• When operation status is COOL ON, inlet pipe is orange, outdoor pipe is blue.
• When operaion status is HEAT ON, SWP ON or DHW ON, inlet pipe is blue, outdoor pipe is orange, otherwise pipe is in gray.
• T
WO
value is T
WO
HP when using a YUTAKI S COMBI or YUTAKI S, otherwise it is normal T
WO.
• Pump 1 icon is shown when it is operating.
• Heater indication is shown always except:
- Cooling Operation
- Heater is disabled by DSW
• If maximum heater step is disabled, the disabled steps are shown as disabled.
UNIT CONTROLLER (PC-ARFH2E)
PMML0575 rev.2 - 03/2022
197
