4 Fix the indoor unit service cover using the screw which had been previously removed during the unpacking procedure.
(x2) Both sides
13.1.2 YUTAKI S COMBI
13.1.2.1 Removing the indoor unit covers
? NOTE
• Front cover needs to be removed for any task inside the indoor unit.
• Back, left and right covers do not need to be removed.
Removing the indoor unit front cover

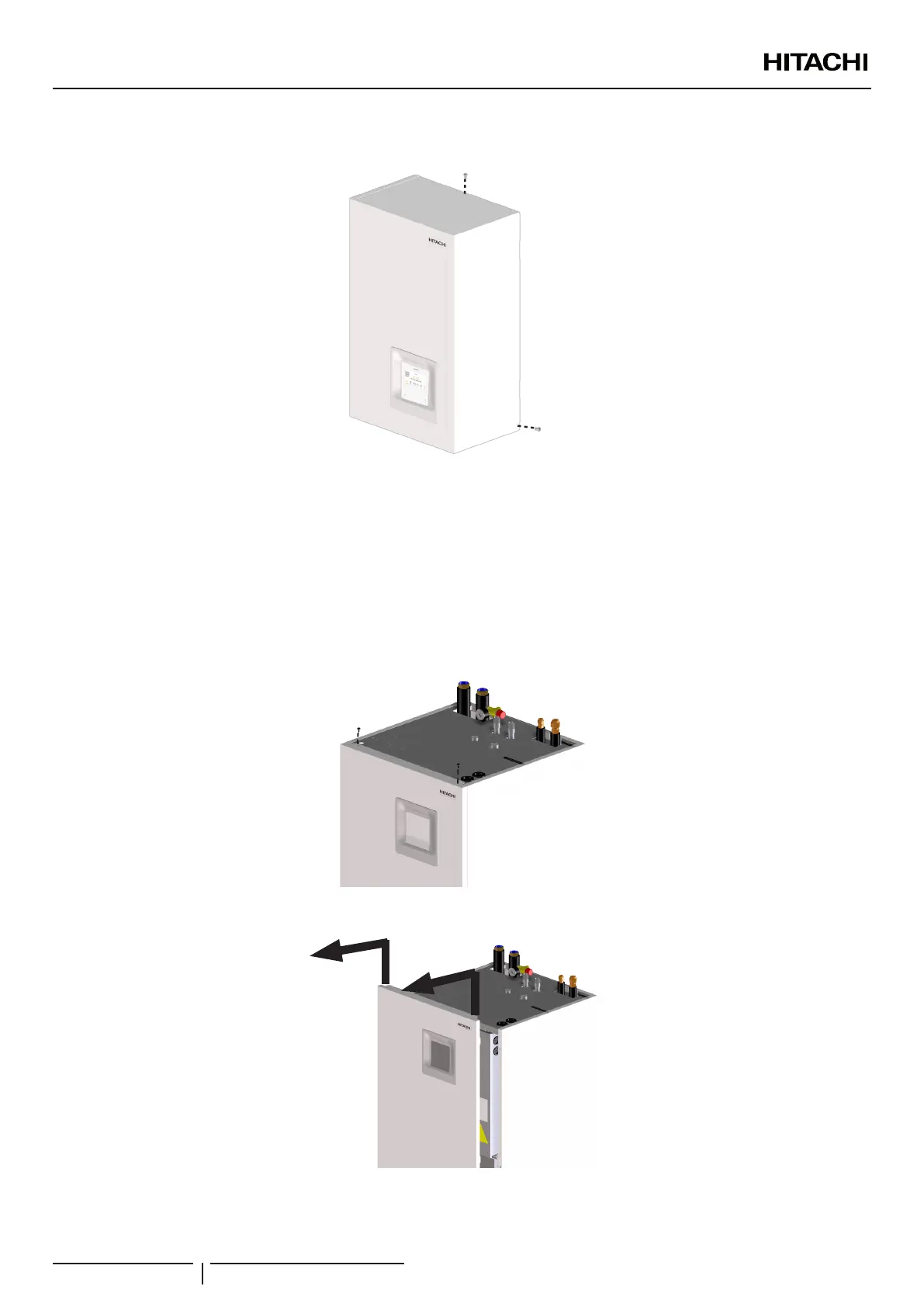

1 Remove the 2 screws of the indoor unit front cover.
2 Slide the service cover slightly upward and remove it pulling to back.
! CAUTION
• Pay attention of no falling off the service cover.
• Take care when removing service cover; the parts inside the unit could be hot.
MAINTENANCE
PMML0575 rev.2 - 03/2022
328
