Hitachi YUTAKI RWM-2R1E - Indoor Units RWM-(2.0-10.0)(R;N)1 E; RWD-(2.0-6.0)(R;N)W1 E-220 S(-K) and RWH-(4.0-6.0)(V)NF(W)E

7.3.2 Indoor units RWM-(2.0-10.0)(R/N)1E / RWD-(2.0-6.0)(R/N)W1E-220S(-K) and RWH-(4.0-6.0)(V)NF(W)E

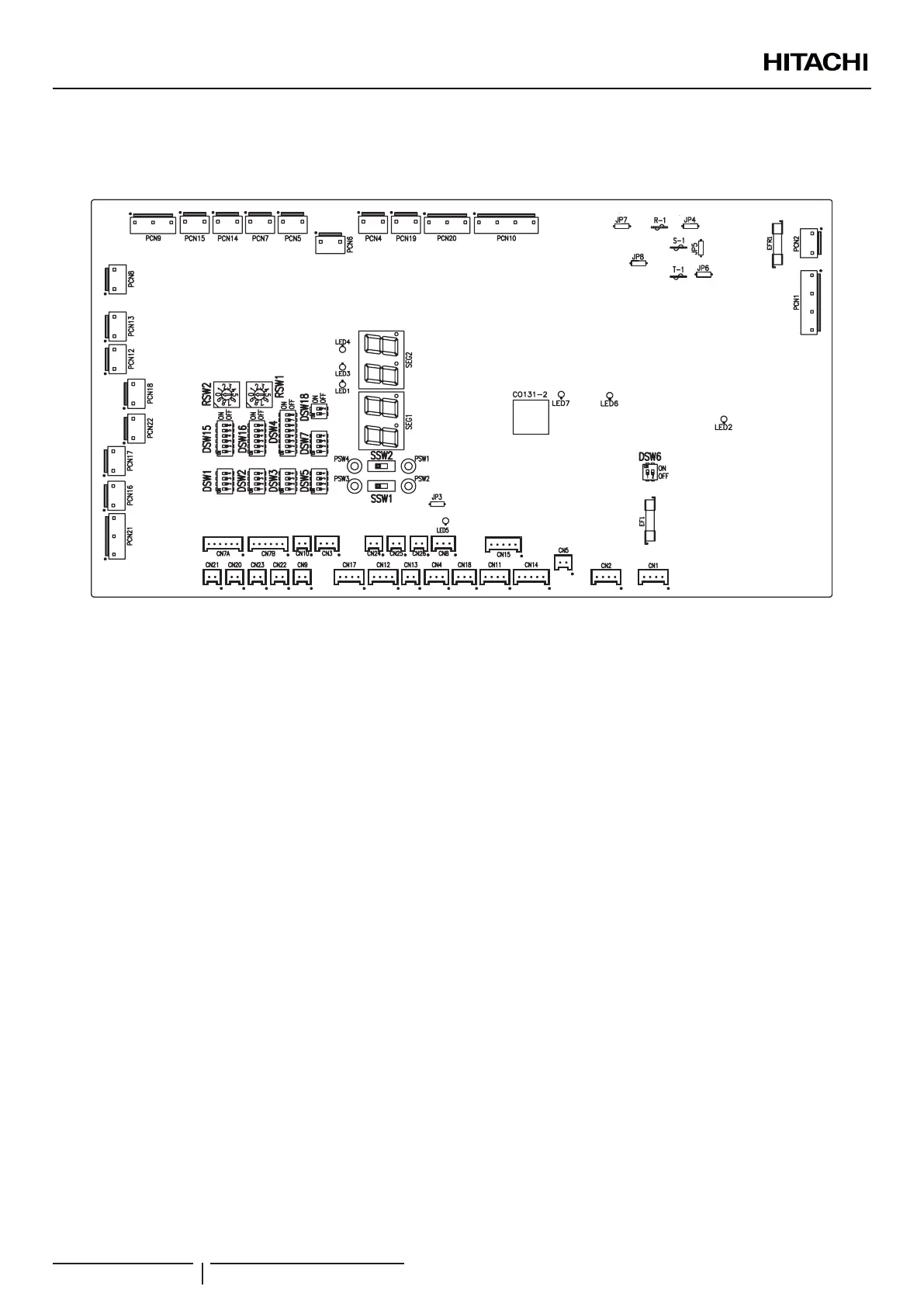

7.3.2.1 Location of DIP switches and rotary switches
7.3.2.2 Function of DIP switches and rotary switches
? NOTE
• The mark “■” indicates the dip switches positions.
• No mark “■” indicates pin position is not affected.
• The gures show the settings before shipment or after selection.
• “Not used” means that the pin must not be changed. A malfunction might occur if changed.
! CAUTION
Before setting dip switches, rst turn the power supply OFF and then set the position of dip switches. If the switches are set without turning the power
supply OFF, the contents of the setting are invalid.
