ENGLISH

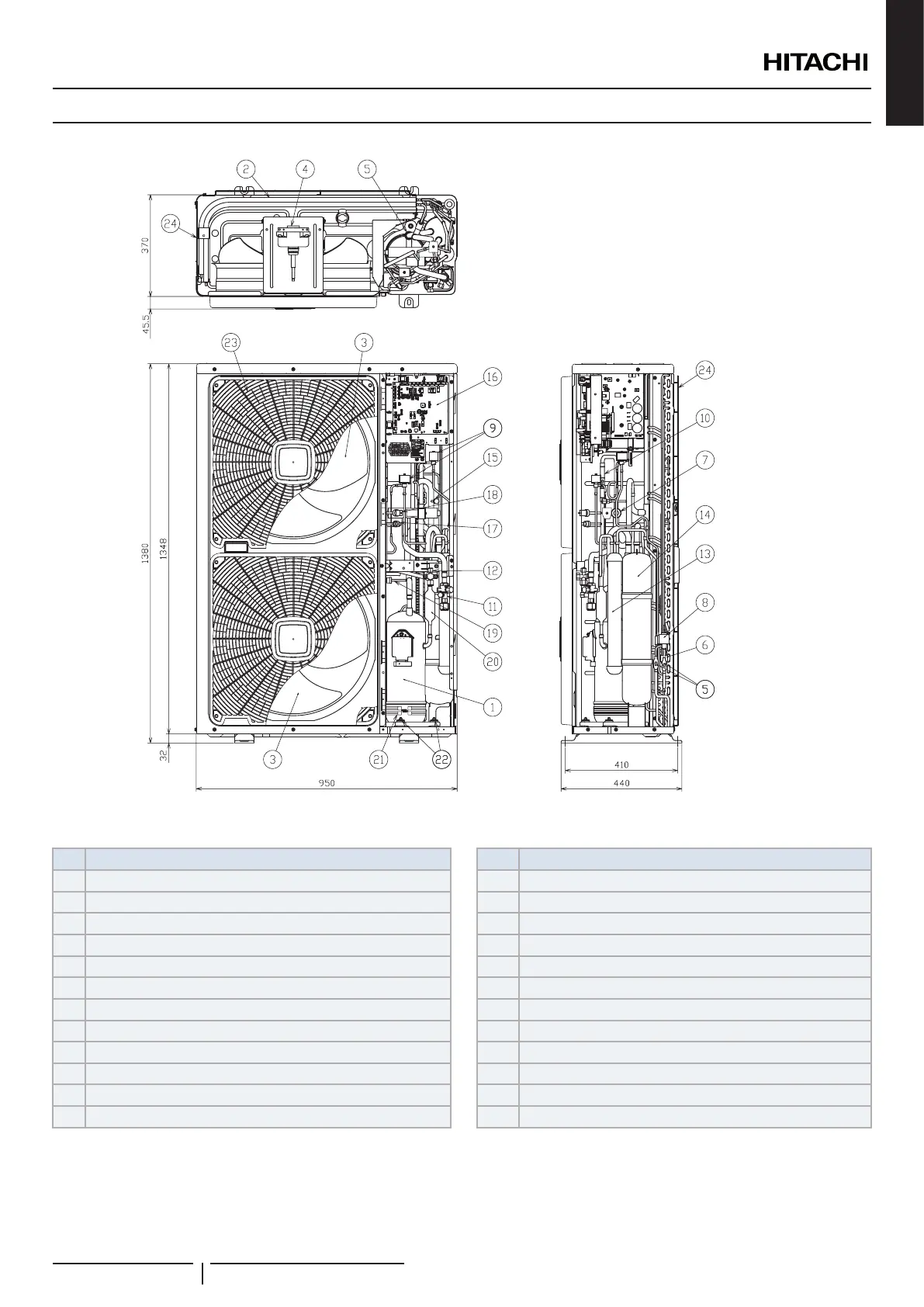

3.2 RAS-(4-10)WH(V)NPE
7T143459
Nº Part Name Nº Part Name
1 Compressor 13 Receiver
2 Heat exchanger 14 Accumulator
3 Propeller fan (2pcs.) 15 Check joint
4 Fan motor (2pcs.) 16 Electrical box
5 Strainer 17 High pressure switch for protection
6 Distributor 18 Sensor for refrigerant pressure
7 Reversing Valve 19 Pressure switch for control
8 Micro-computer control expansion valve 20 Silencer
9 Solenoid valve 21 Crankcase heater
10 Check valve 22 Vibration absorbing rubber (4pcs.)
11 Stop valve for gas line 23 Air outlet
12 Stop valve for liquid line 24 Air inlet
NAME OF PARTS AND DIMENSIONAL DATA
PMML0575 rev.2 - 03/2022
15
