10.6.2.2 Timer and schedule conguration
? NOTE
Timer settings are only valid if the corresponding zone is in ON state at the time of execution of the respective timer program.
The LCD controller must be set to the correct date and time before using the timer function.
Select the desired area to apply the timer function or delete all timers conguration:
Heating/Cooling (Air): To set the timer to
adjust the room temperature. Only when using
room thermostats.
Heating/Cooling (Water): To set the timer to
adjust the water working conditions.

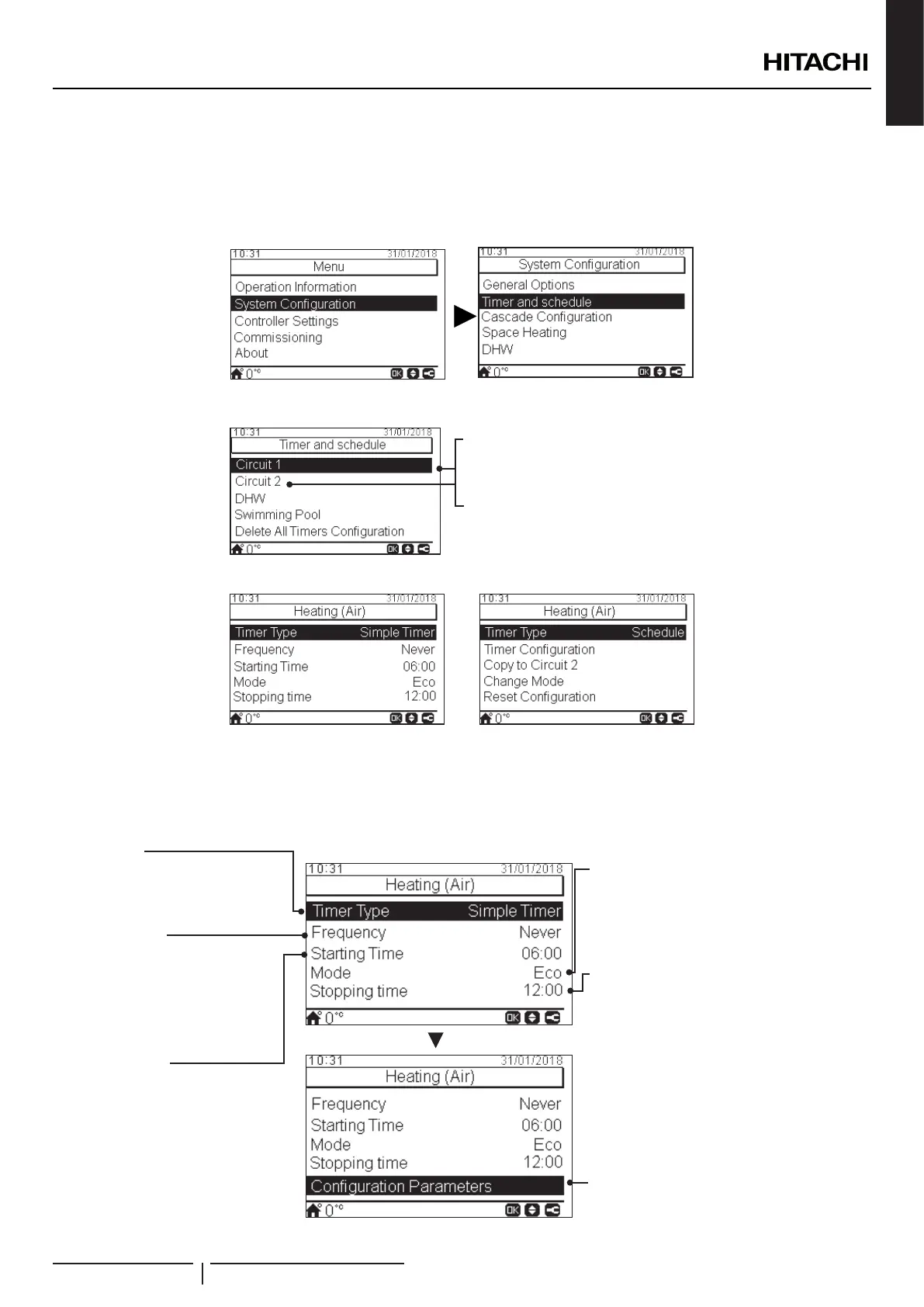

The timer function allows the selection of simple and scheduled timers, as shown in the gures below:

Setting of Simple timer
Setting of temperature or operation mode (ECO or Comfort) to be applied during operation for a dened period, after which
operation returns to the previous settings. This type of timer cannot be used to modify the operation state from ON to OFF, which
can be accomplished with a Schedule timer.
Starting time:
Use the arrow keys to select the starting
time of the timer
Stopping time:
Use the arrow keys to select the stopping time of
the timer
Conguration parameters:
Congure the temperature for the Eco or Comfort
Mode.
Only available for Air settings (Circuit 1 or 2).
Timer type:
Selection of the timer type
• Disable
• Simple timer
• Schedule
Frequency:
Selection of the timer frequency
• Never
• Once
• Everyday
• Weekend
• Work day
Mode: Selection of the working mode
• Eco
• Comfort
• Setting temperature: when this option
is selected is possible to congure the
temperature using the arrow keys. (Only when
OTC is Fix)
1 / 2
2 / 2
