7.3.3 YUTAKI CASCADE CONTROLLER ATW-YCC-(01-03)
Series Unit model
ATW-
YCC-01
ATW-
YCC-02
ATW-
YCC-03
YUTAKI S
RWM-(2.0-3.0)R1E
x x x
RWM-(4.0-6.0)N1E
x x o
RWM-(8.0/10.0)N1E
x x o
YUTAKI S COMBI
RWD-(2.0-3.0)RW1E-220S(-K)
x x x
RWD-(4.0-6.0)NW1E-220S(-K)
x x o
YUTAKI M
RASM-(4-6)(V)NE
o o x
RASM-(2/3)VRE
o o x
YUTAKI S80 RWH-(4.0-6.0)(V)NFE
o o x
YUTAKI S80Combi RWH-(4.0-6.0)(V)NFWE
o o x

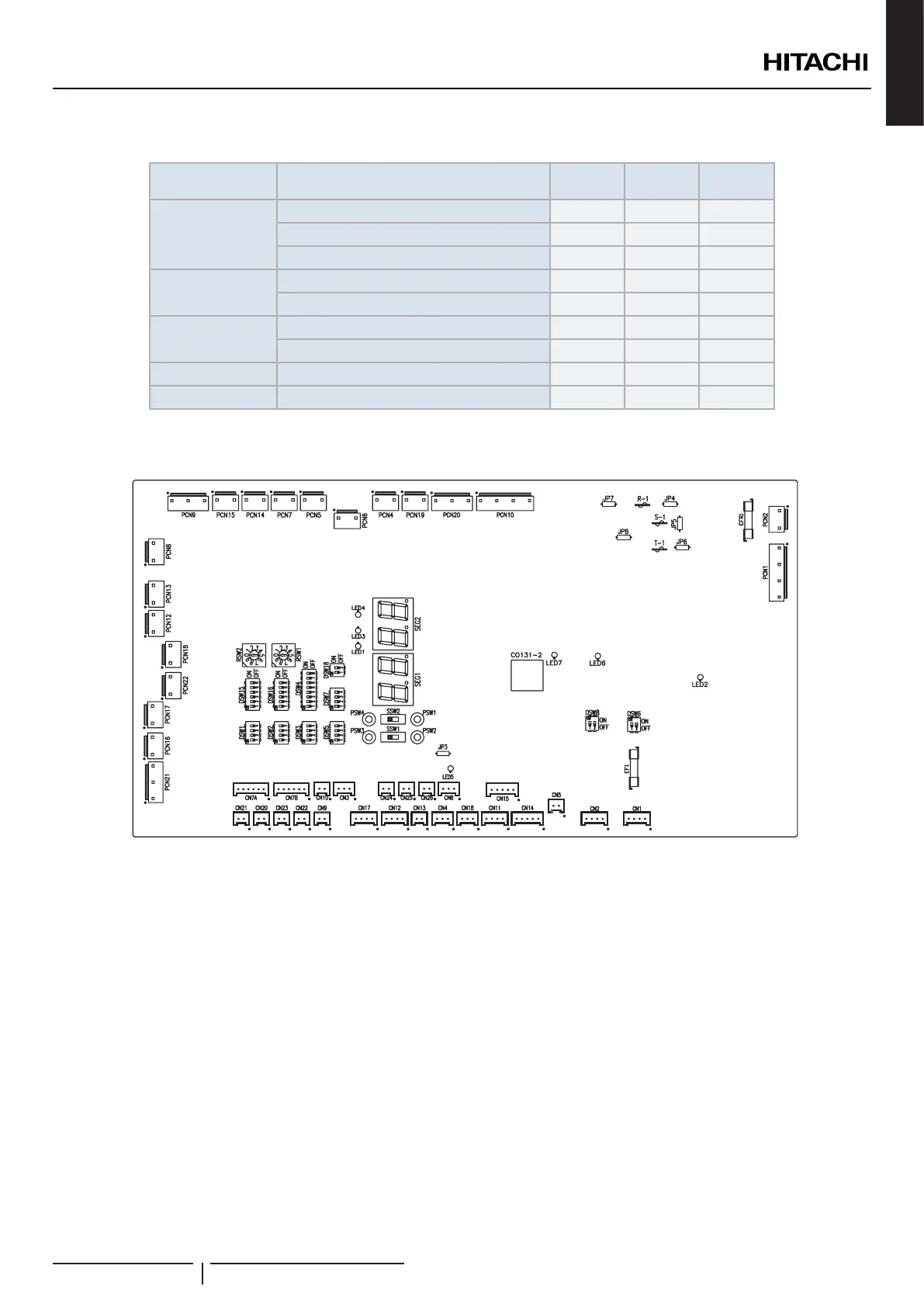

7.3.4 Location of DIP switches and rotary switches
ELECTRICAL AND CONTROL SETTINGS
