13.1.1.5 Cover assembly

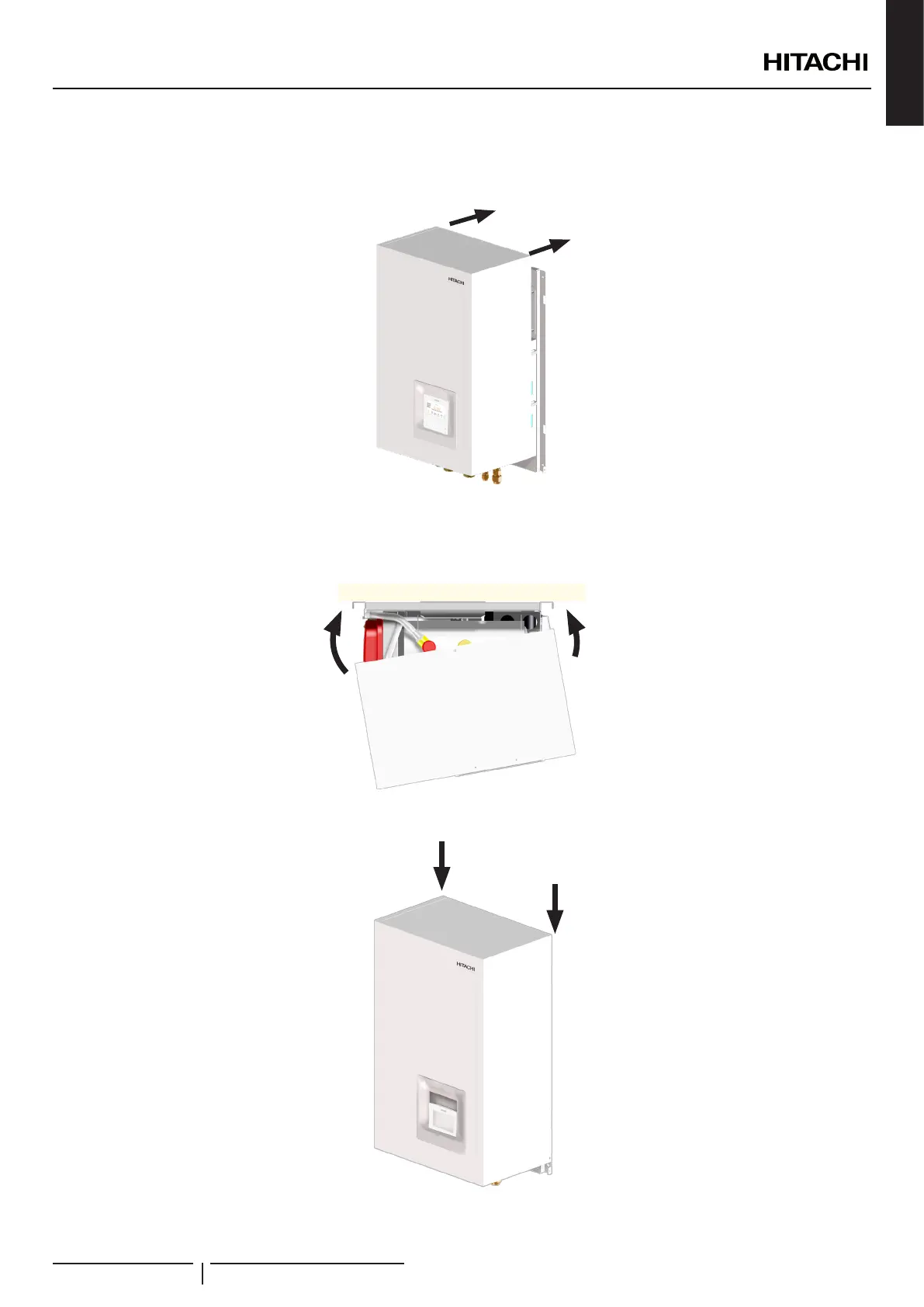

1 Place the indoor unit service cover at the same level of the wall mounted unit by taking it from the bottom side (one person can
perform this operation, during this operation it is possible to rest the cover on the electrical box).
2 Place the holes on the right side of the indoor unit cover over the back plate hooks (x2 locations). When the right side is centred,
repeat the operation on the left side. Put the holes on the left side of the indoor unit cover into the back plate frame hooks
(x2 locations).
3 Once the 4 hooks are placed into their corresponding cover holes, adjust the cover to the end of the hooks.
