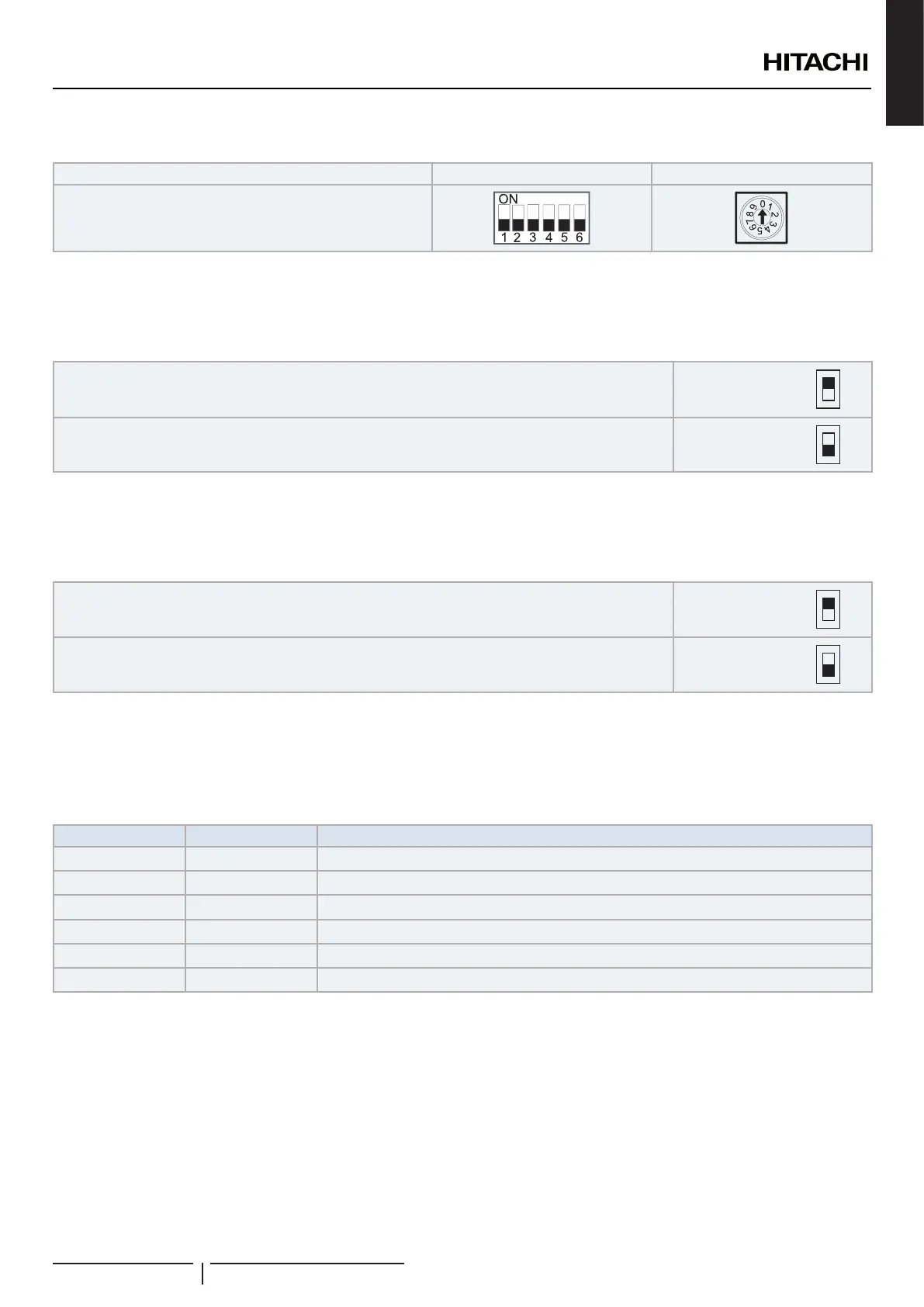

DSW16 & RSW1: Not used
DSW16 RSW1
Factory setting
? NOTE
Don’t change this setting, otherwise malfunction will be occur.

SSW1: Remote/Local
Factory setting
Remote operation
Remote
Local
Local operation
Remote
Local
? NOTE
(*) Don’t change this setting, otherwise malfunction will be occur.

SSW2: Heat/Cool (when SSW1 is in local setting)
Factory setting
Heat operation
Heat
Cool
Cooling operation (when cooling kit installed)
Heat
Cool
? NOTE
(*) Don’t change this setting, otherwise malfunction will be occur.
7.3.4.2 LED indication
Name Colour Indication
LED1 Green Power indication
LED2 Red Power indication
LED3 Red Heat pump operation (thermo ON/OFF)
LED4 Yellow Alarm (ickering with 1 sec interval)
LED6 Yellow H-Link transmission
LED7 Yellow H-Link transmission for unit controller
ELECTRICAL AND CONTROL SETTINGS
PMML0575 rev.2 - 03/2022
97
