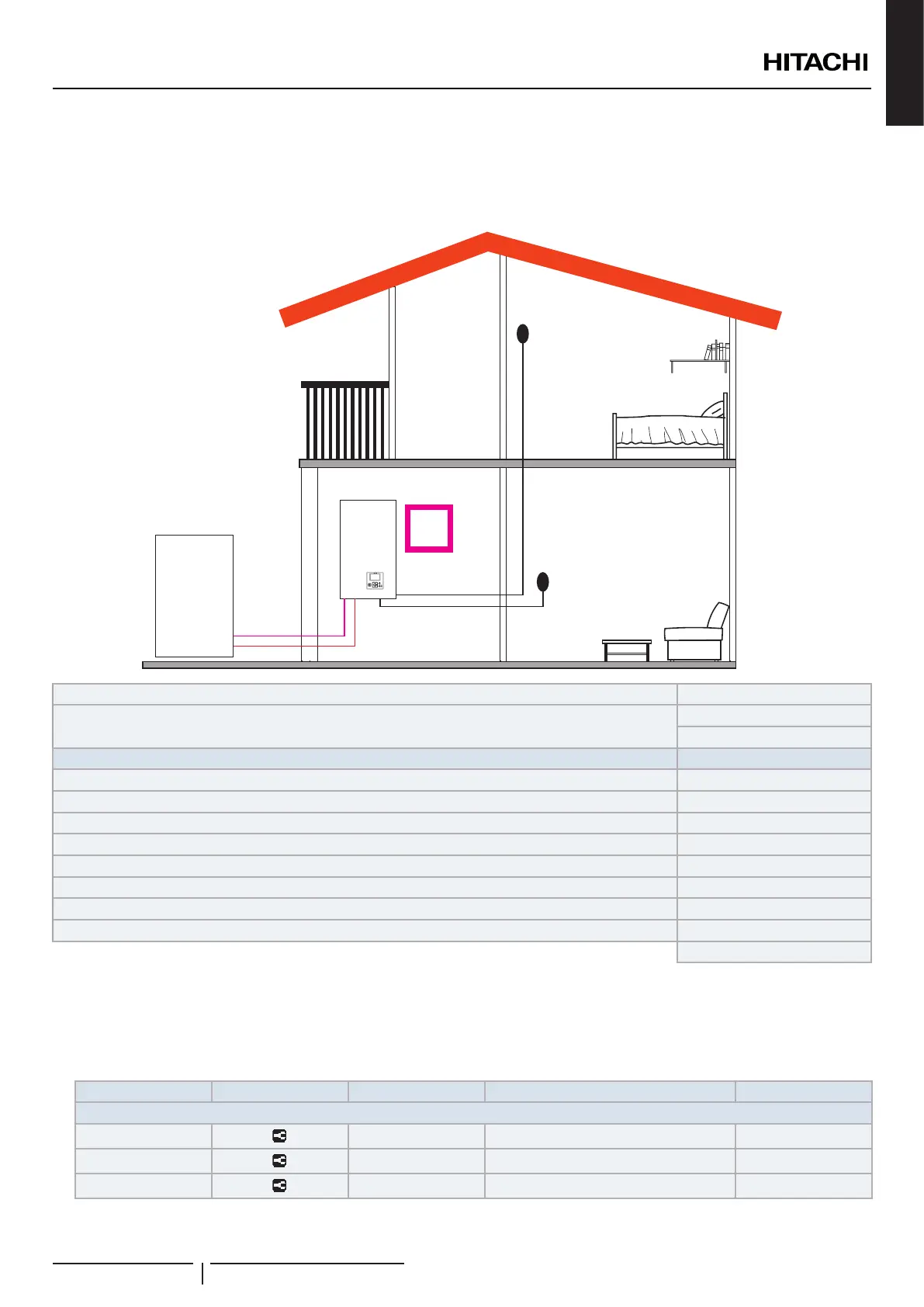

Example 4
1 PC-ARFH1E attached into the unit and used as unit controller and room thermostat for both zones.
2 Wired room sensor for Zone 1
3 Wired room sensor for Zone 2
Outdoor unit
OK
Indoor unit
1
Living room Zone 1
Bedroom Zone 2
Order FIRST
Type
Master
Unit + Circuits
Questions Answers
Is this device attached to the unit? YES
Is this device used as a Room Thermostat of a zone? YES, IN BOTH ZONES
Which are the emitters of circuit 1? Underoor heating
Which are the emitters of circuit 2? Underoor heating
Do you have domestic hot water tank? NO
Do you have swimming pool? NO
Do you have boiler? NO
Do you have electric backup heater? NO
COMPLETED
? NOTE
• After nishing Conguration assistant, go to Input&Outputs&Sensor menu and select which auxiliary sensor do you want to use for ambient
temperature in each zone.
• Example:
REF Access Description Default Value Selected value
Auxiliary Sensors
Taux1 Sensor 1 (Taux1) Two3 (if Boiler) C1 Ambient
Taux2 Sensor 2 (Taux2) Swimming pool (if SWP existing) C2 Ambient
Taux3 Sensor 3 (Taux3) Outdoor Sensor -
UNIT CONTROLLER (PC-ARFH1E)
PMML0575 rev.2 - 03/2022
