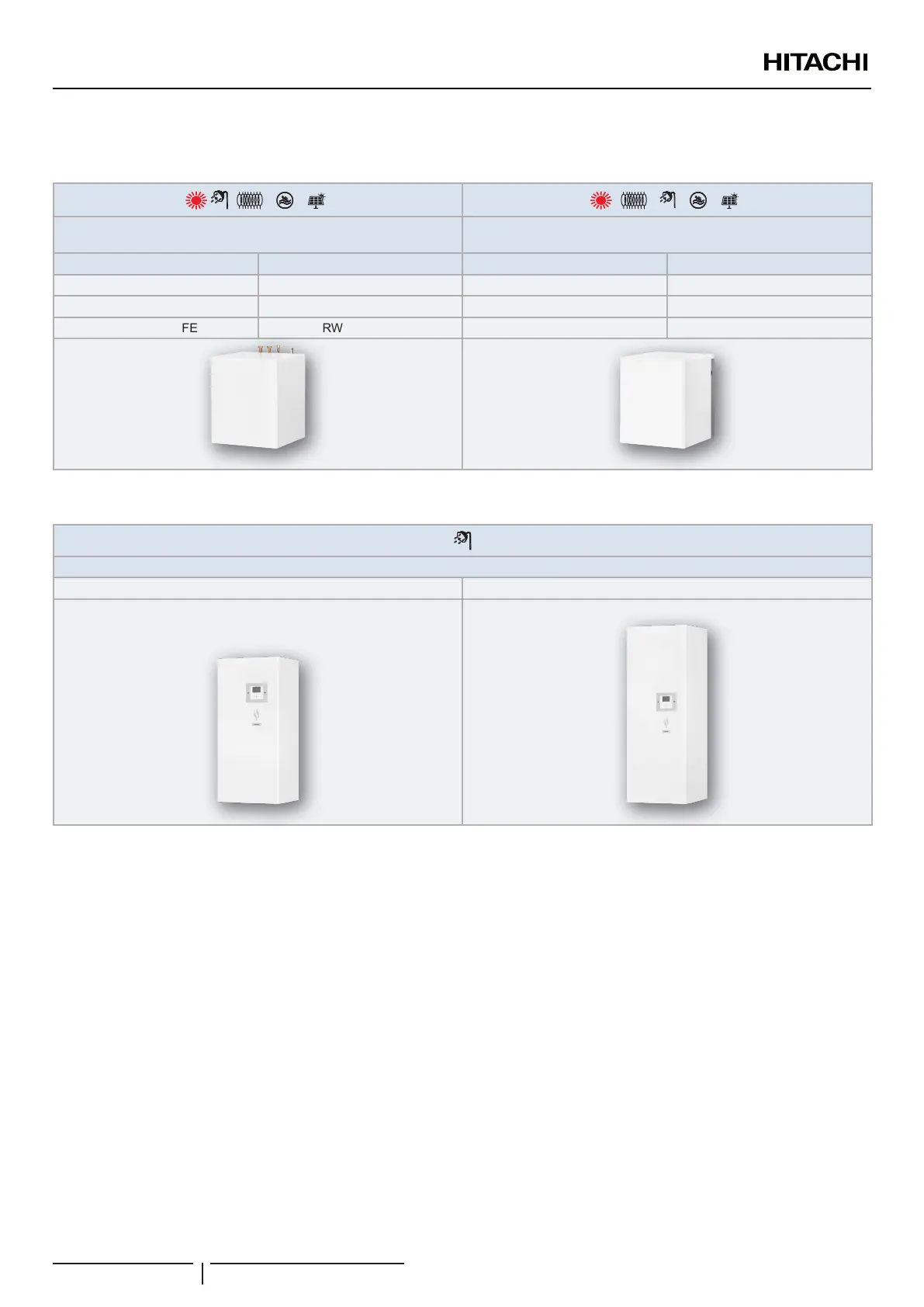

YUTAKI S80
Indoor unit
(
)
(
)
(
)
(
)
(
)
(
)
(
)
TYPE 1: Version for operation in DHW but with a remote tank
(Tank cannot be plugged on top of the unit)
TYPE 2: Version for operation with Hitachi DHW tank
(Tank can be plugged on top of the unit or next to it)
1~ 230V 50Hz 3N~ 400V 50Hz 1~ 230V 50Hz 3N~ 400V 50Hz
RWH-4.0VNFE RWH-4.0NFE RWH-4.0VNFWE RWH-4.0NFWE
RWH-5.0VNFE RWH-5.0NFE RWH-5.0VNFWE RWH-5.0NFWE
RWH-6.0VNFE RWH-6.0NFE RWH-6.0VNFWE RWH-6.0NFWE
YUTAKI S80 domestic hot water tank
1~ 230V 50Hz
DHWS200S-2.7H2E(-W) DHWS260S-2.7H2E(-W)
? NOTE
• In “TYPE 1: Version for operation in DHW but with a remote tank”, the required unit controller (PC-ARFH1E) has to be ordered as accessory.
• In “TYPE 2: Version for operation with Hitachi DHW tank”, the domestic hot water tank of model DHWS200S-2.7H2E(-W) or DHWS260S-
2.7H2E(-W) is required. The DHW tank has to be ordered separately. The unit controller (PC-ARFH1E) is factory supplied with DHWS200S-2.7H2E
and DHWS260S-2.7H2E models (integrated in the front cover). The tank can be installed in 2 ways: on top of the indoor unit (integrated installation)
or next to it. In this second case, the specic accessory kit installation (ATW-FWP-02, ordered as an accessory) is required.
• Icons between brackets mean possible extra operations to the factory-supplied operations.
GENERAL INFORMATION
PMML0575 rev.2 - 03/2022
10
