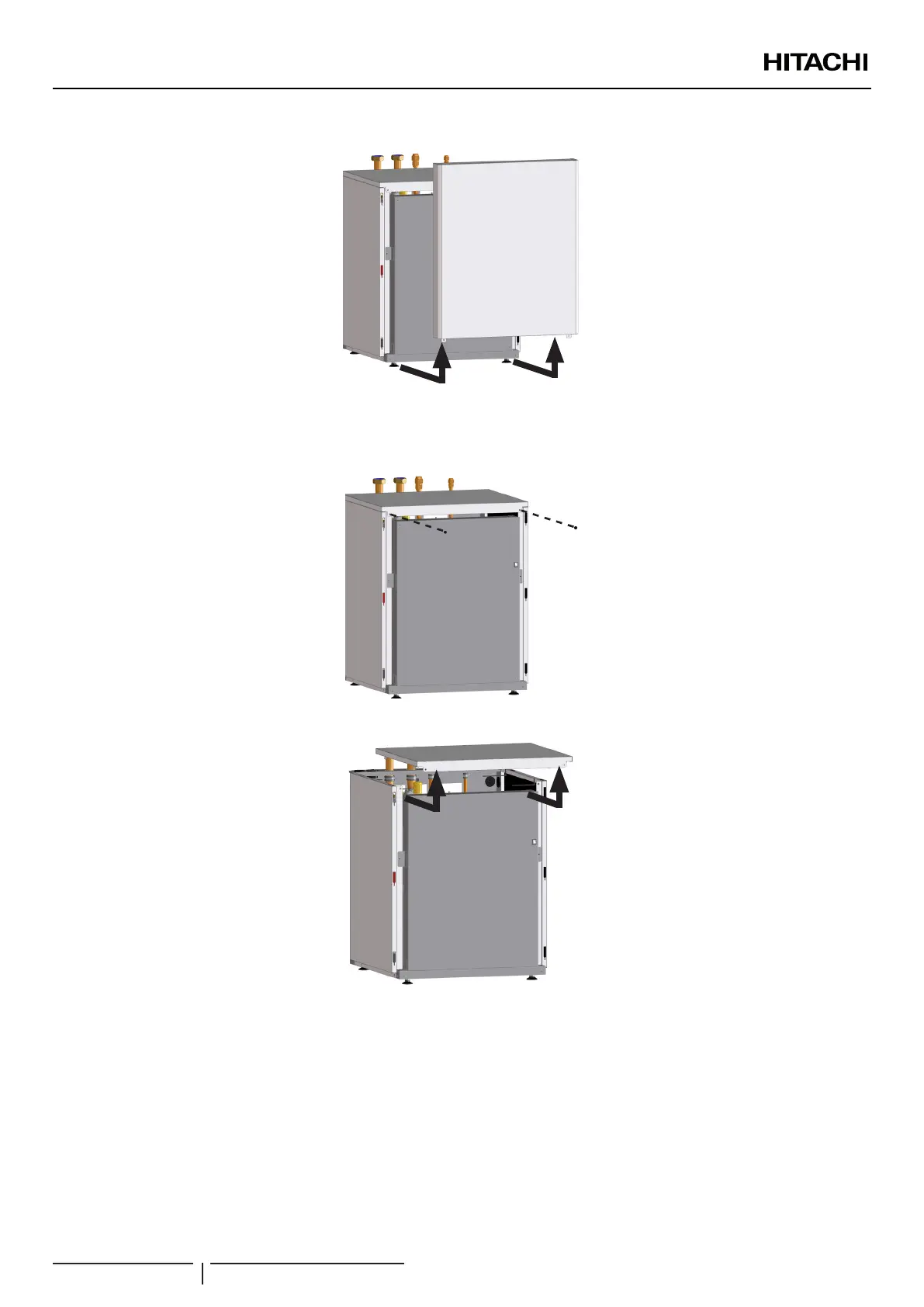

2 Pull the indoor unit front cover forward and then remove it.
Removing the indoor unit upper cover
1 Remove the indoor unit front cover.
2 Unscrew the 2 upper xing screws.
3 Pull the indoor unit upper cover forward and then remove it.
Removing the indoor unit lateral cover
? NOTE
Pictures refer to the left side cover, but the removal procedure is exactly the same for the right side cover.
1 Remove the indoor unit front cover.
2 Remove the indoor unit upper cover.
3 Unscrew the screws which x the cover to the indoor unit.
MAINTENANCE
PMML0575 rev.2 - 03/2022
332
