Hitron CGNV - The DOCSIS WAN Screen; Figure 13: the Status: DOCSIS Provisioning Screen

To Next Page

To Previous Page

STATUS

Hitron CGNV User’s Guide

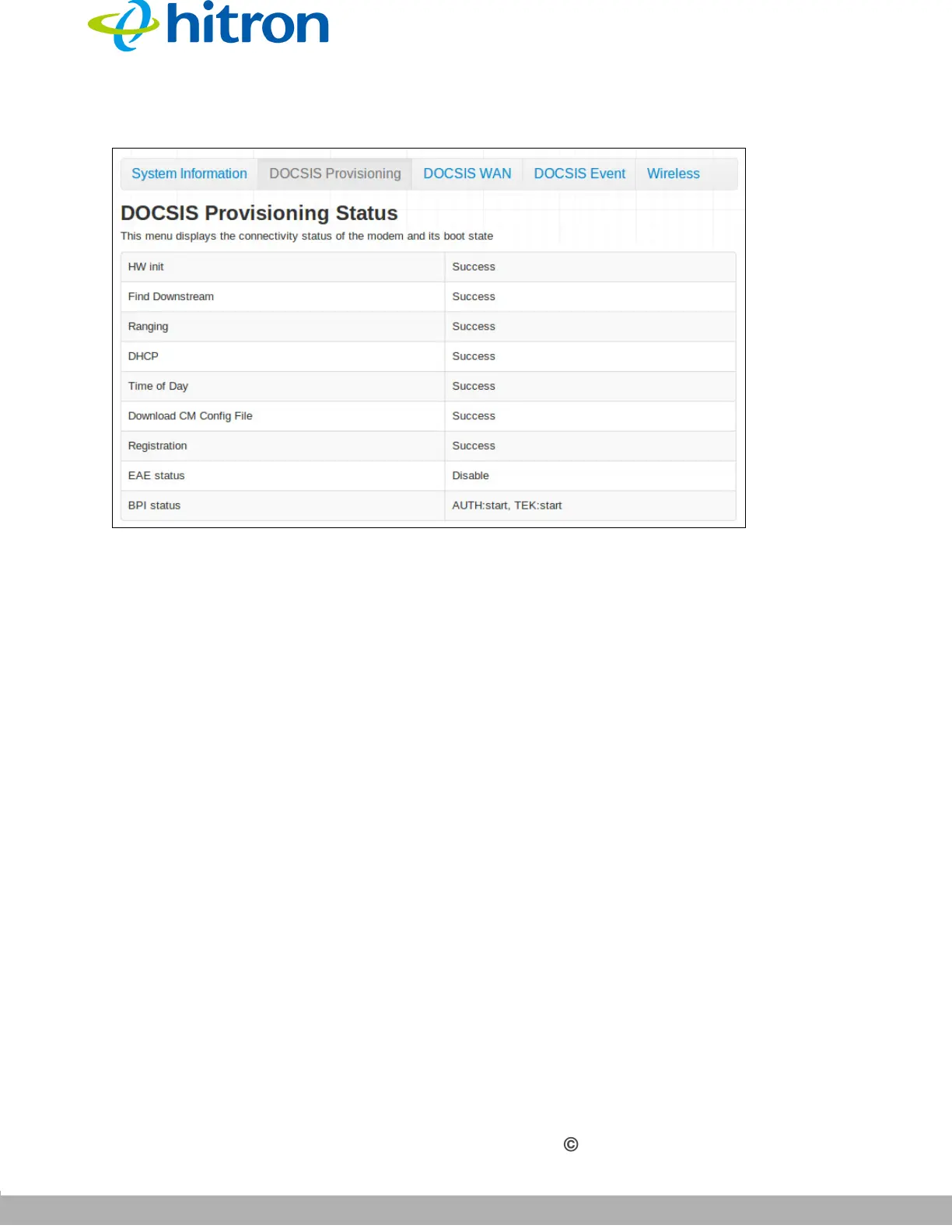

Figure 13: The Status: DOCSIS Provisioning Screen

For each step:

Process displays when the CGNV is attempting to complete a connection step.

Success displays when the CGNV has completed a connection step.

3.4 The DOCSIS WAN Screen

Use this screen to discover information about:

The nature of the upstream and downstream connection between the CGNV and
