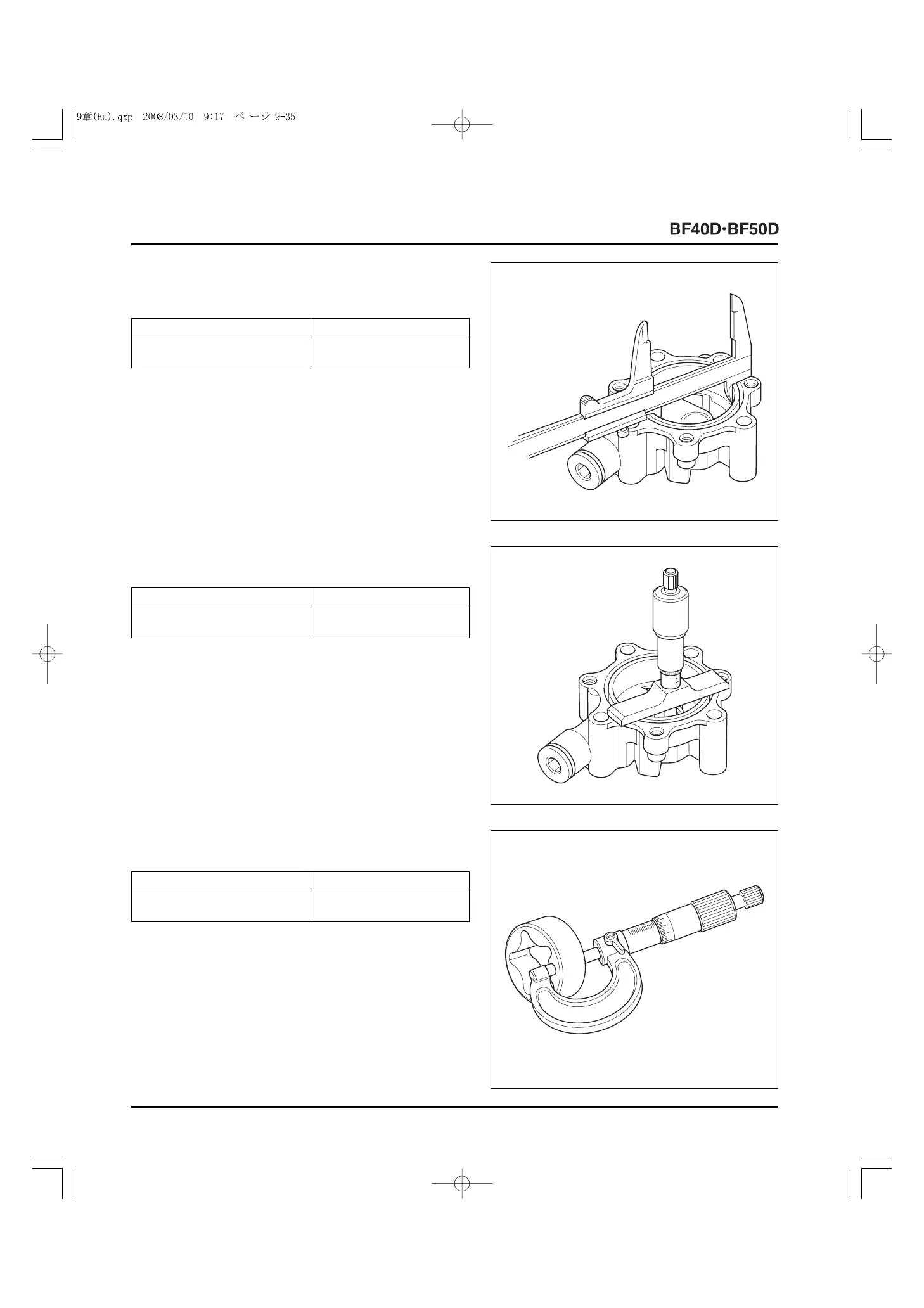

c. INSPECTION
• OIL PUMP BODY I.D.
Measure the oil pump body I.D.
• OUTER ROTOR HEIGHT
Measure the outer rotor height.
• OIL PUMP BODY DEPTH
Measure the oil pump body depth.
Standard Service limit
50.15
- 50.18 mm 50.20 mm
(1.9744
- 1.9756 in) (1.9764 in)
If the measurement exceeds the service limit, replace the oil
pump body with a new one.
Standard Service limit
17.02
- 17.05 mm 17.09 mm
(0.670
- 0.671 in) (0.673 in)
Standard Service limit
16.98
- 17.00 mm 16.93 mm
(0.6685
- 0.6693 in) (0.6665 in)
If the measurement exceeds the service limit, replace the oil
pump with a new one.
If the measurement is less than the service limit, replace the
outer rotor with a new one.
